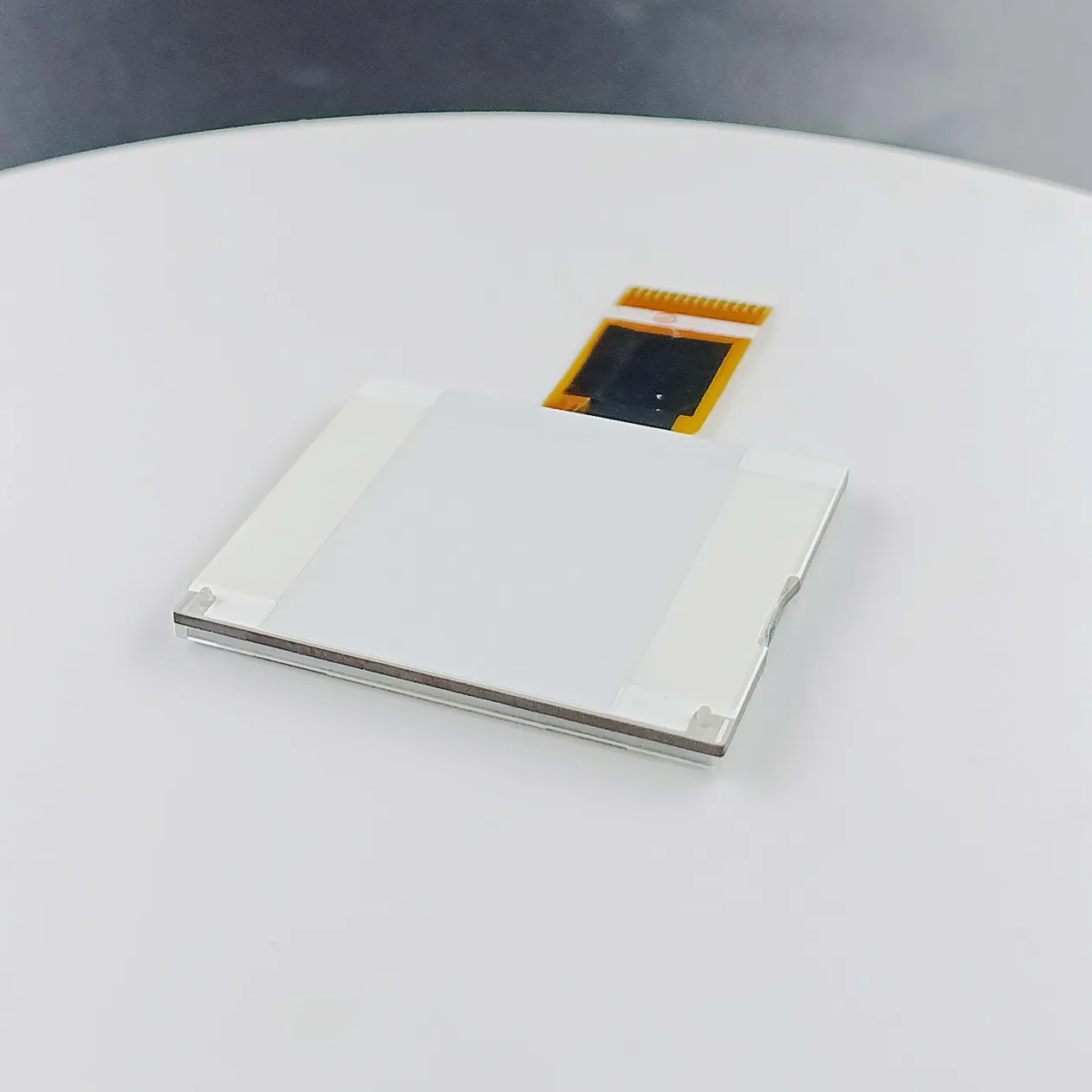

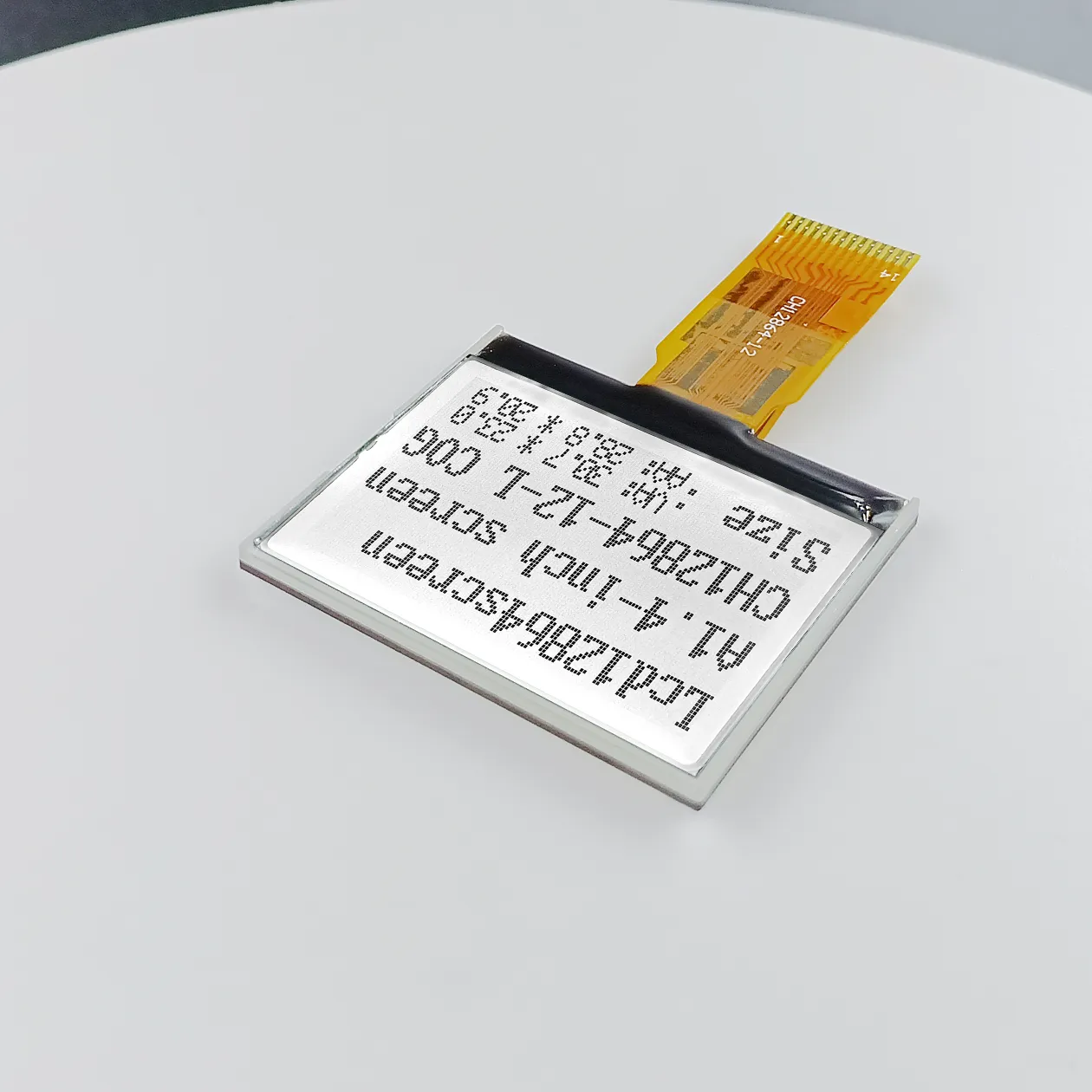

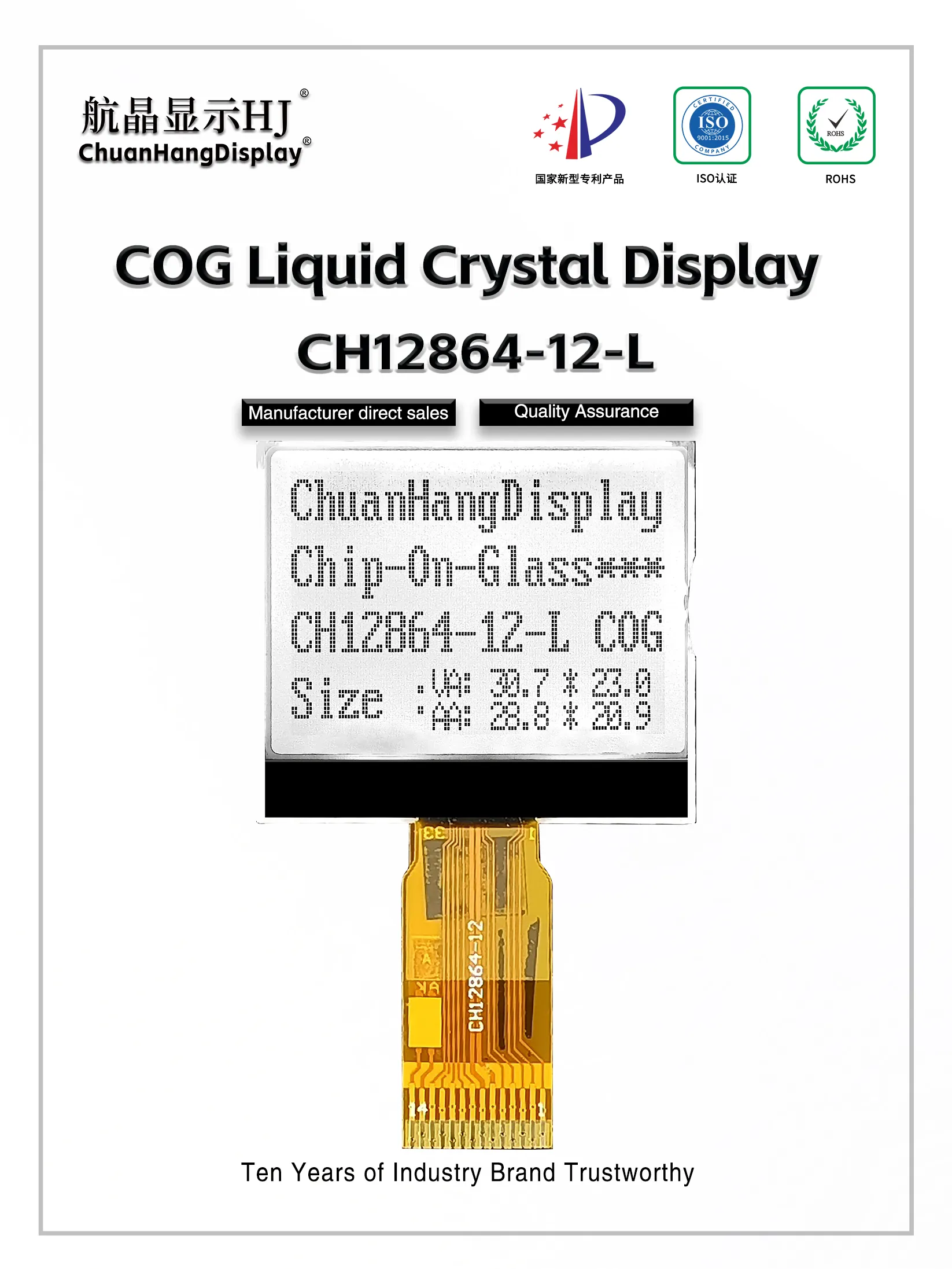

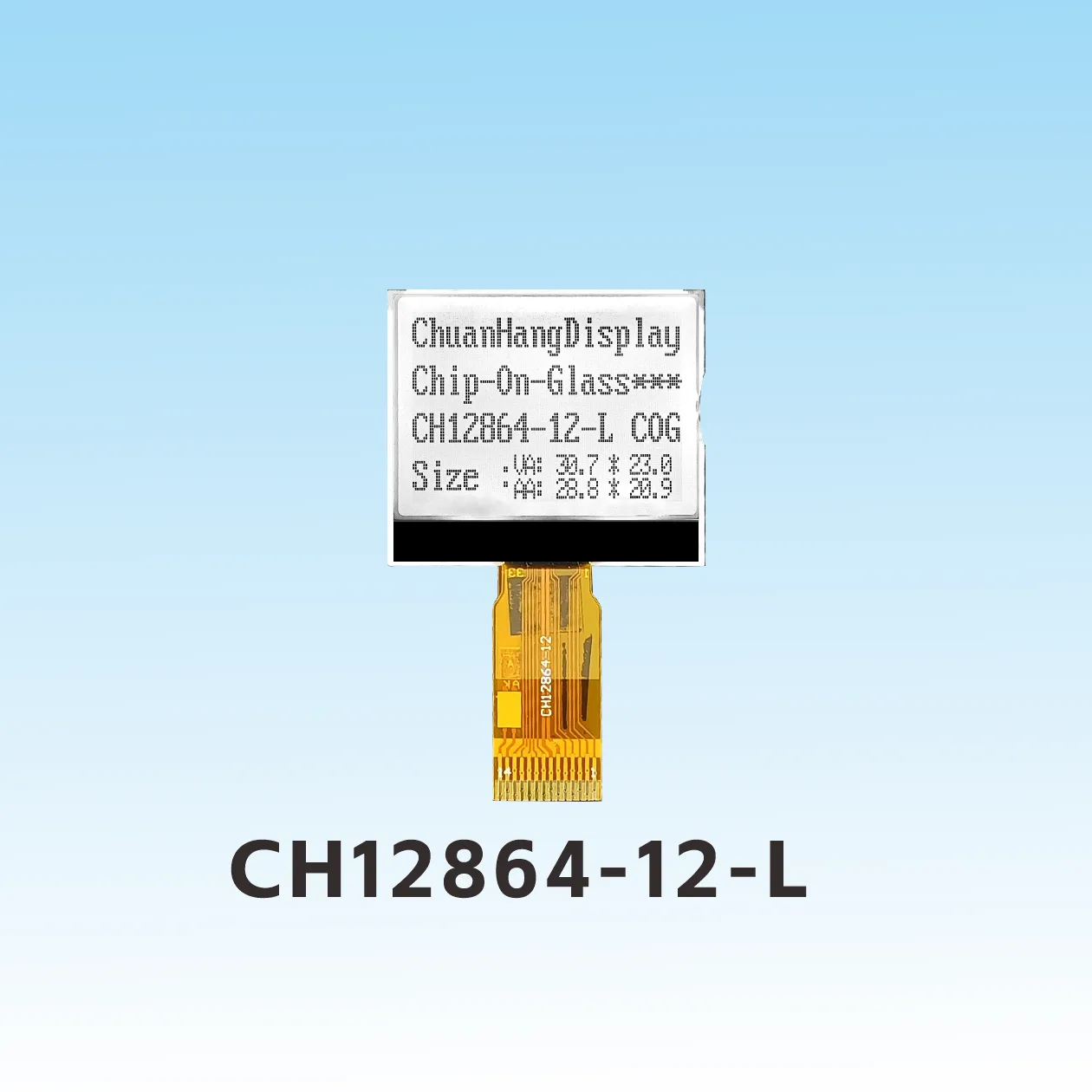

CH12864-12- L lcd 12864 specifications
Product Description

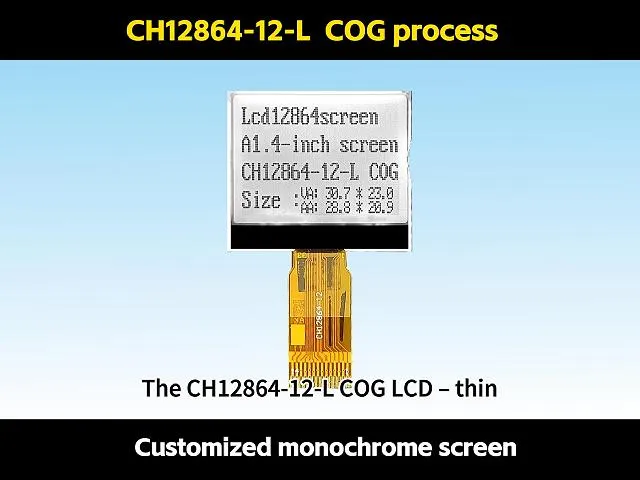

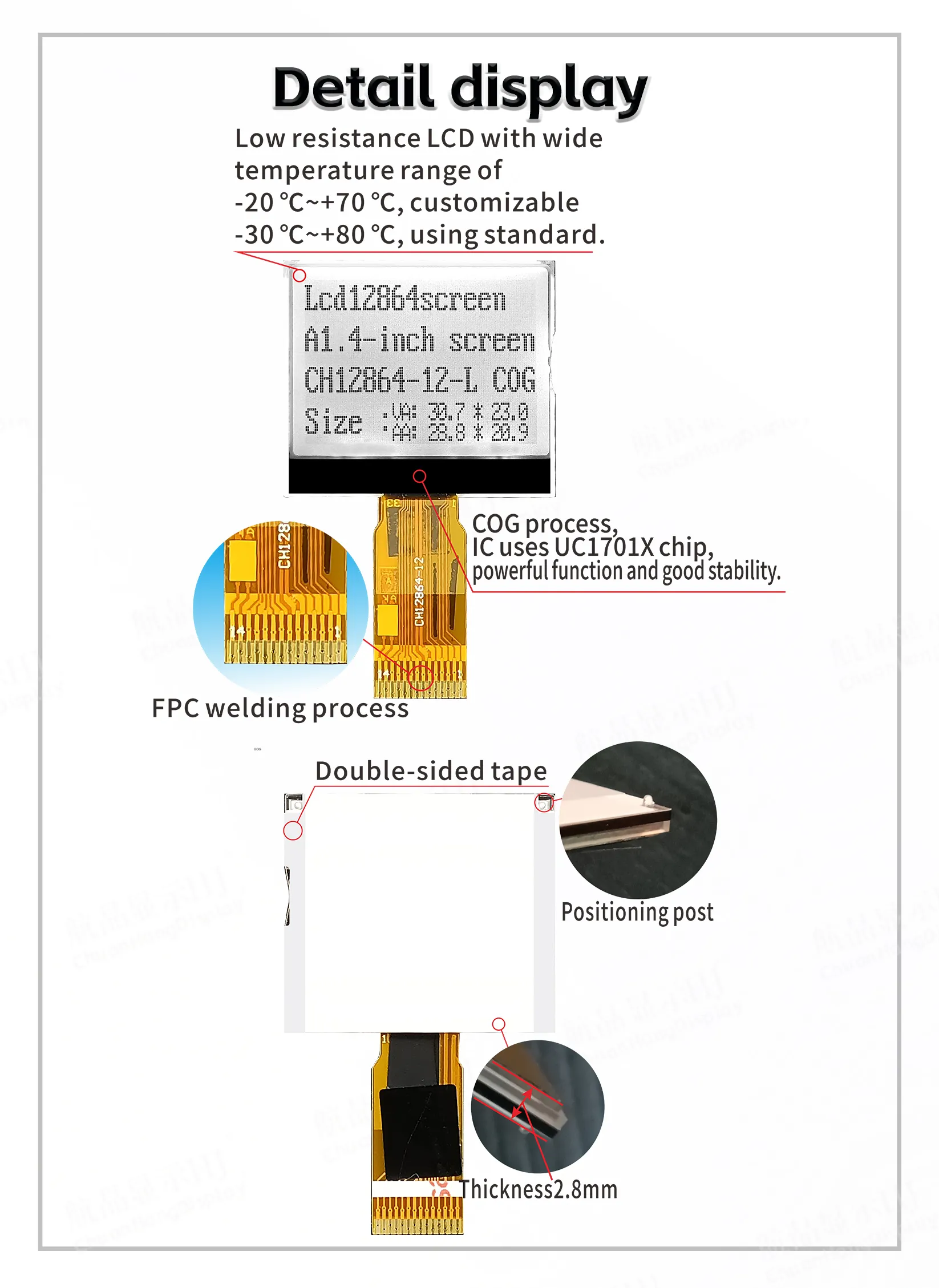

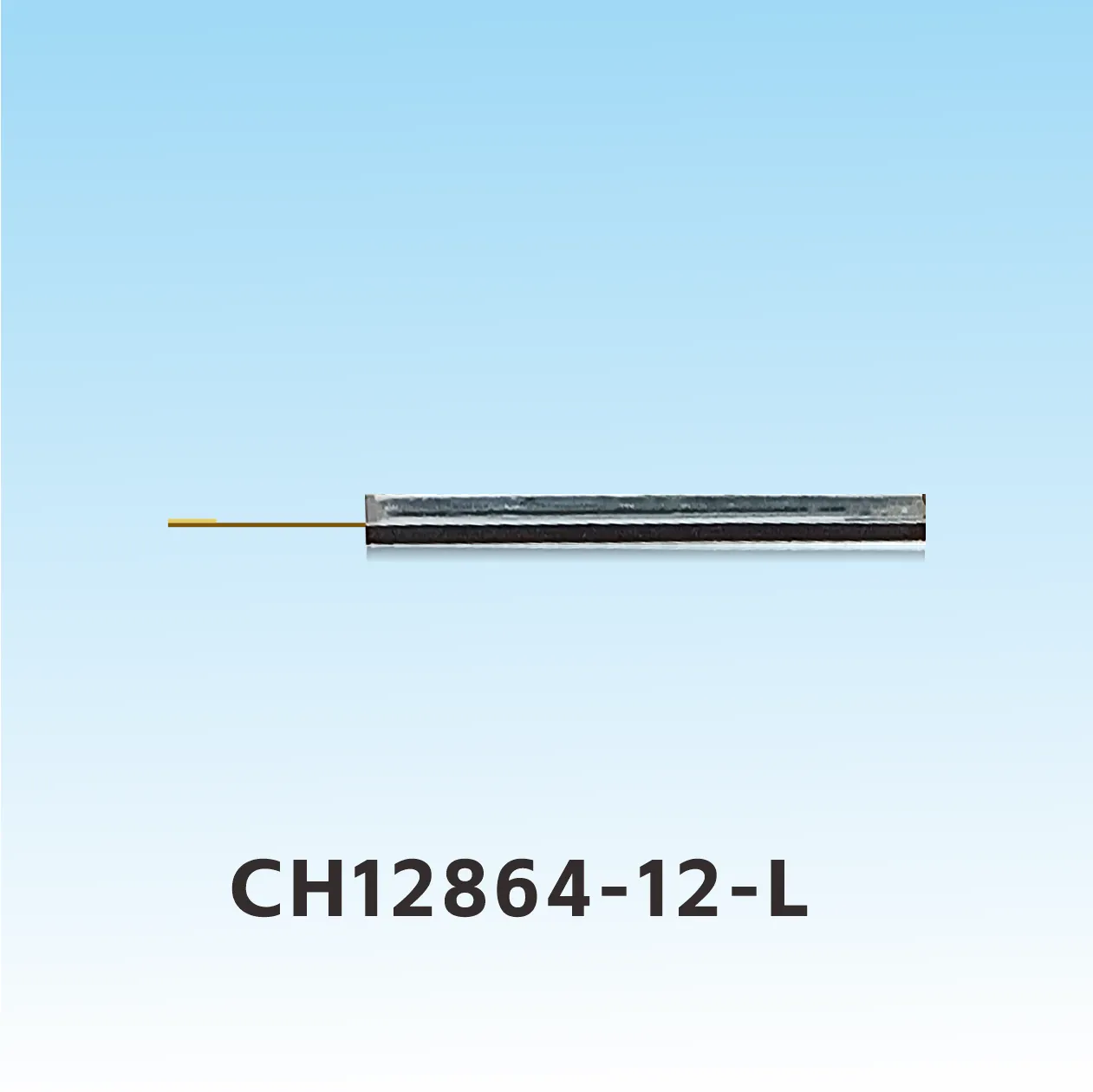

1.1 COG technology, FPC soft line is welded, the product has backlight, has been assembled, thin thickness, stable structure.
1.2 IC uses ST7567, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 60mA.
1.4 LED backlight A and K are flexible lines, and A and K need to supply 2.9V~3.0V separately.
1.5 Product features:
●The built-in display data RAM is 64x128 bits.
●Only 3 capacitors are needed to generate a boost.
●The contrast is adjusted by the software.
●One screen displays 8 characters x 4 lines (16x16 dot matrix).
●Single picture ≤128x64 dot matrix. 4-wire SPI interface communication.
●Rich functions: The interface display is on/off, positive/reverse display.
