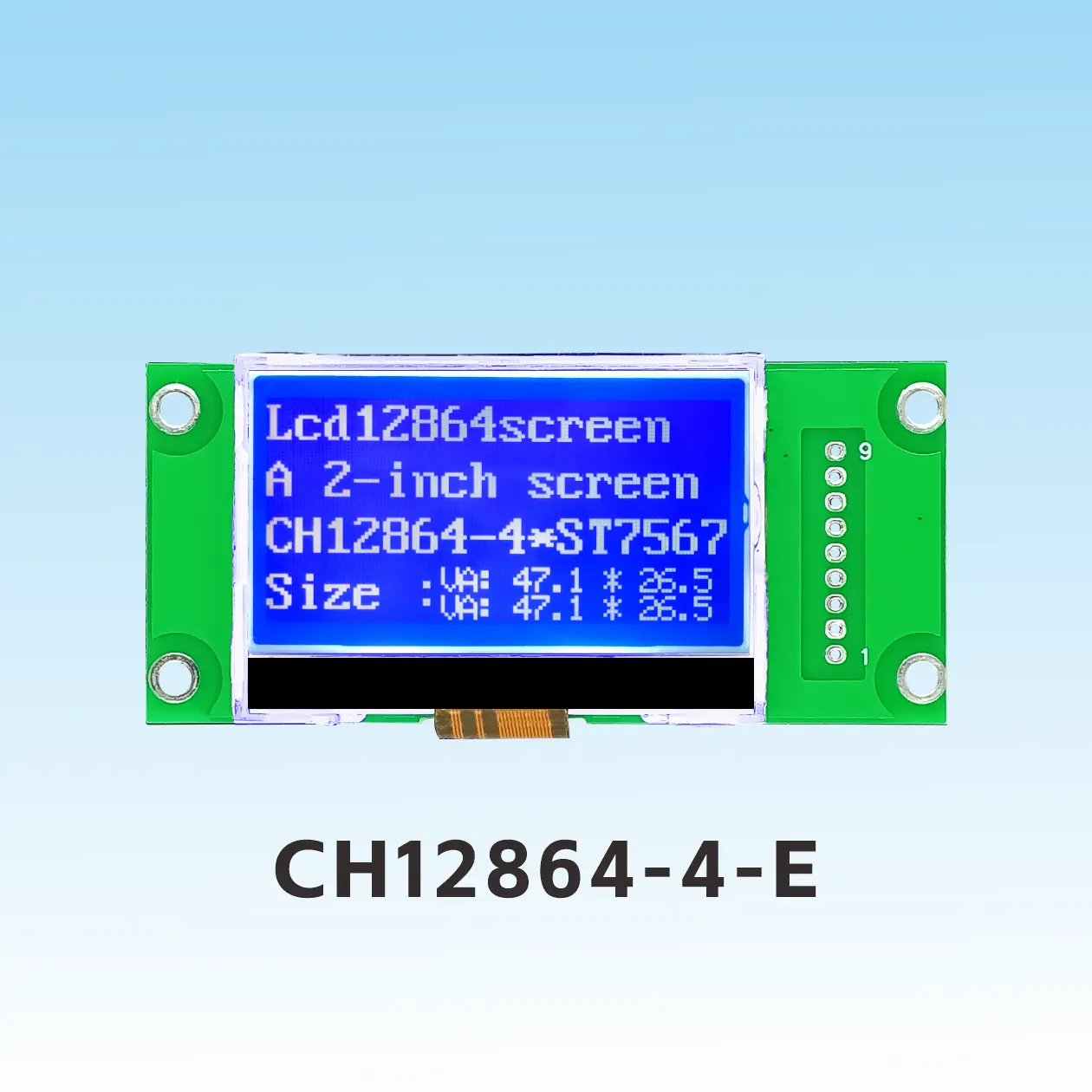

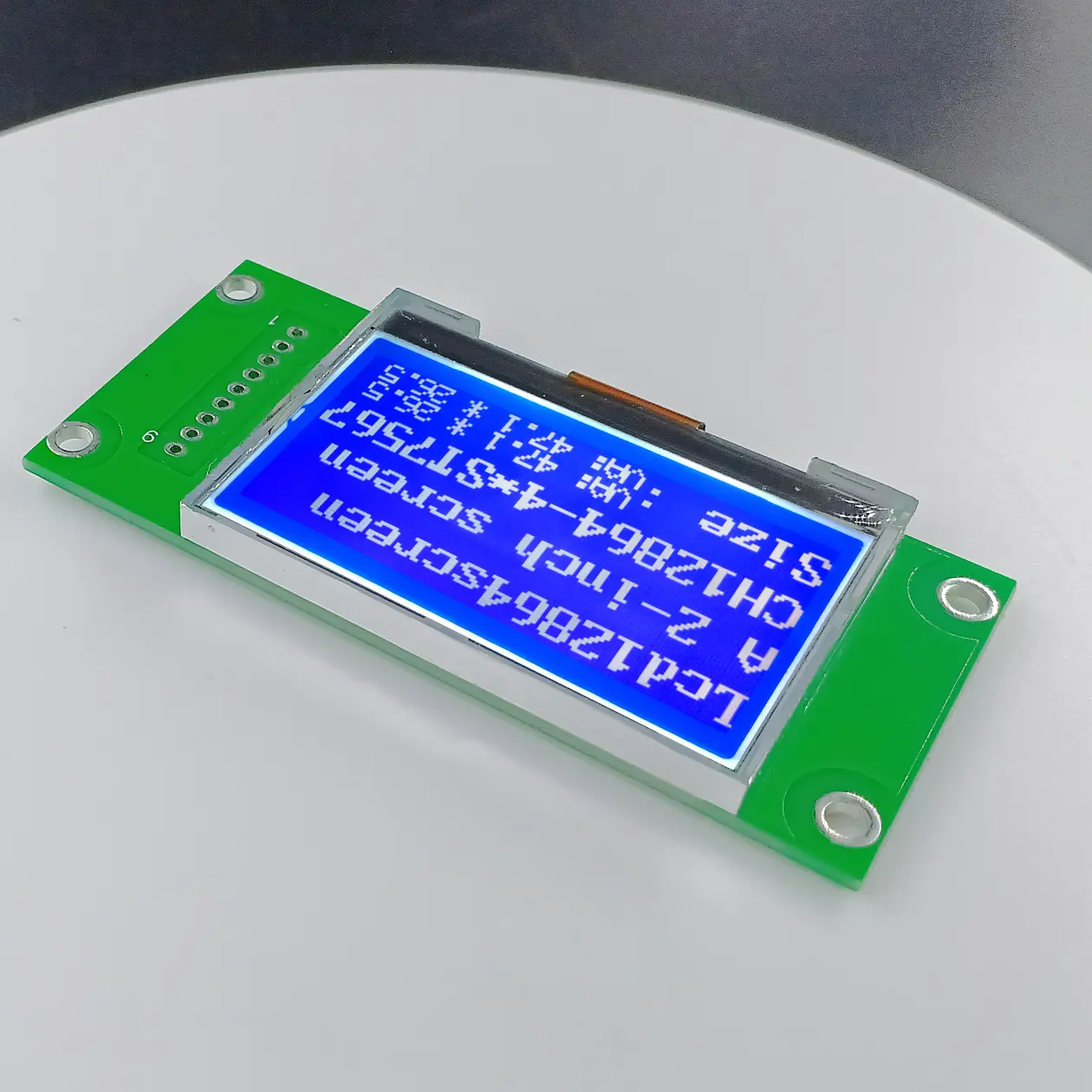

CH12864-4-E 12864 graphic lcd
Product Description
.webp "CH12864-4-E 12864 graphic lcd")
| Product Brand | ChuanHangDisplay | Product Model | CH12864-4-E |
| Resolution | 128x64 | screen size | |

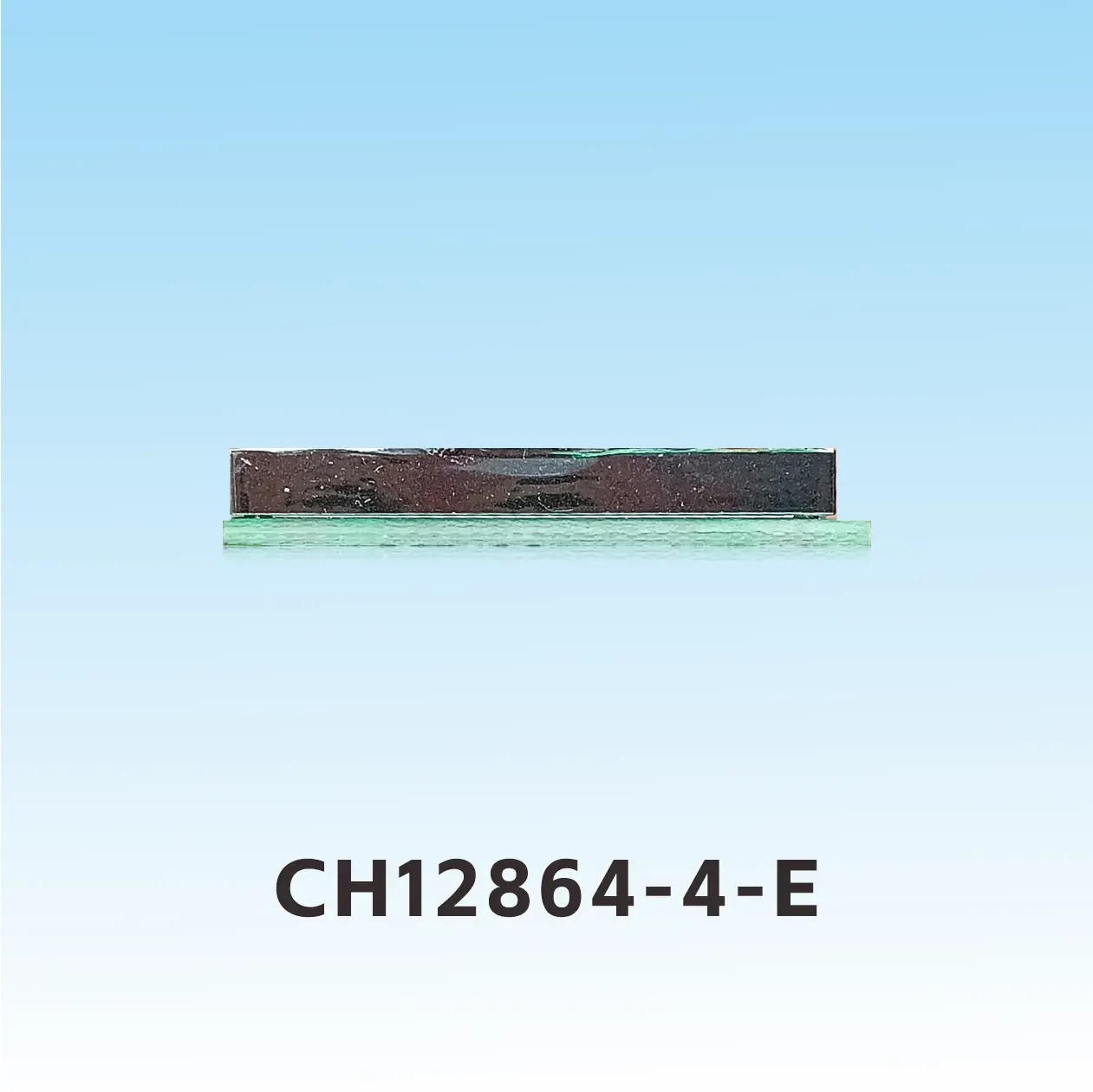

| Outline Dimension(L*W*H) | 79.50x36.20x5.60 mm | Visible Area(L*W) | 47.10x26.50mm |
| Active Area(L*W) | 44.78x22.38mm | Dot Size (mm) | 0.33(L)x0.33(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/64Duty,1/9Bias |
| Display Type | STN | Driver IC | ST7567 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |

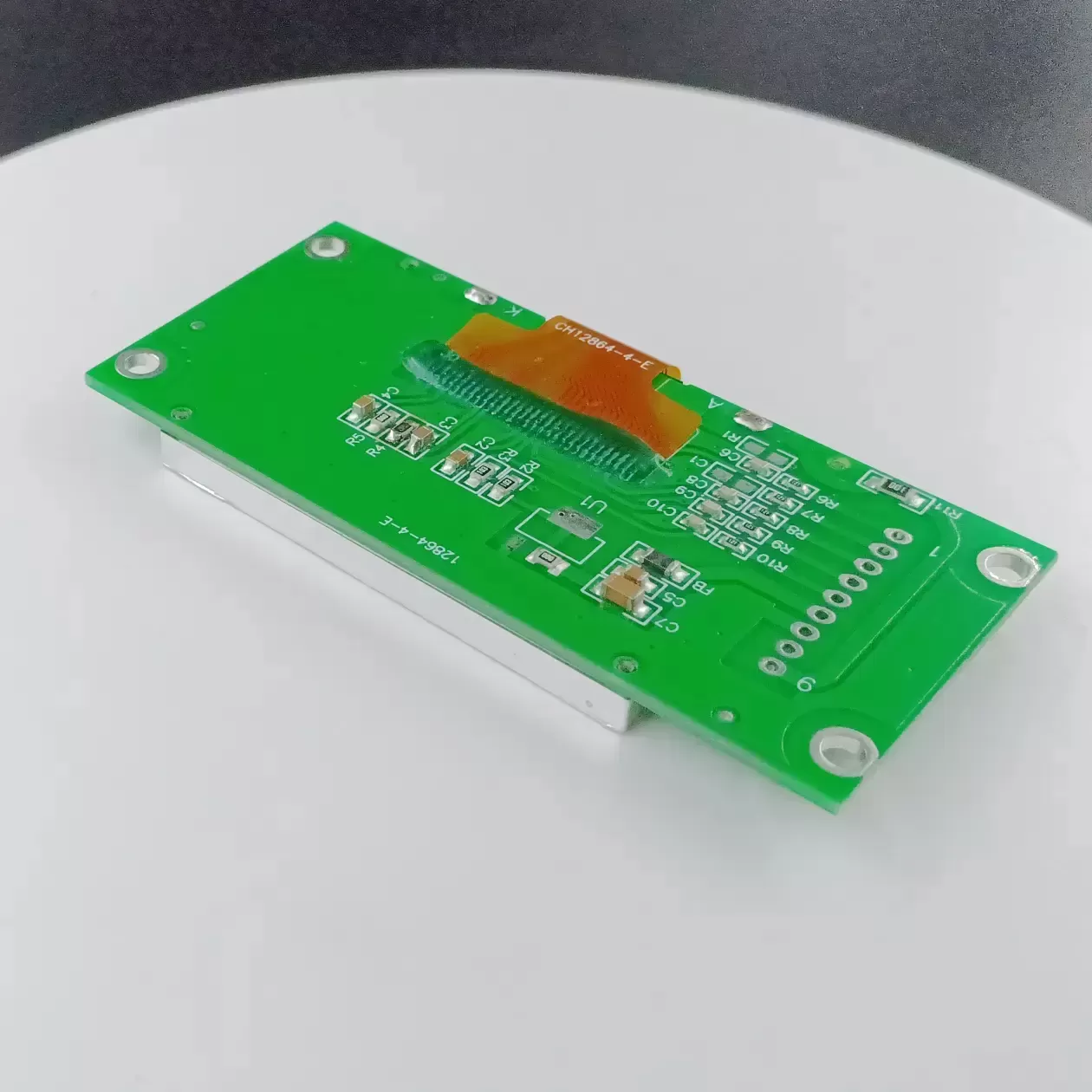

| Character libraries | Whether to bring PCB | Yes |
