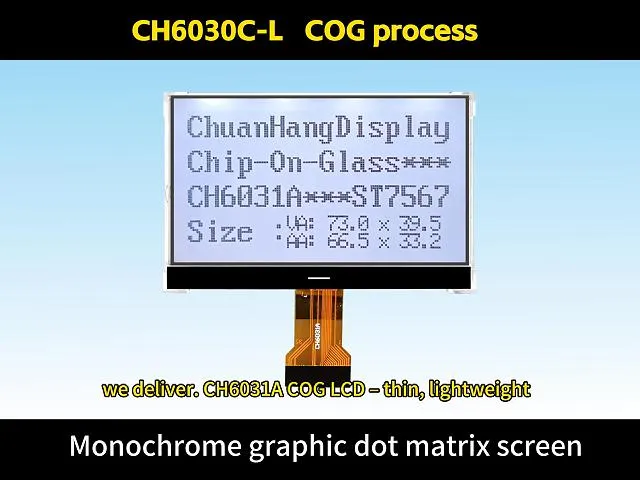

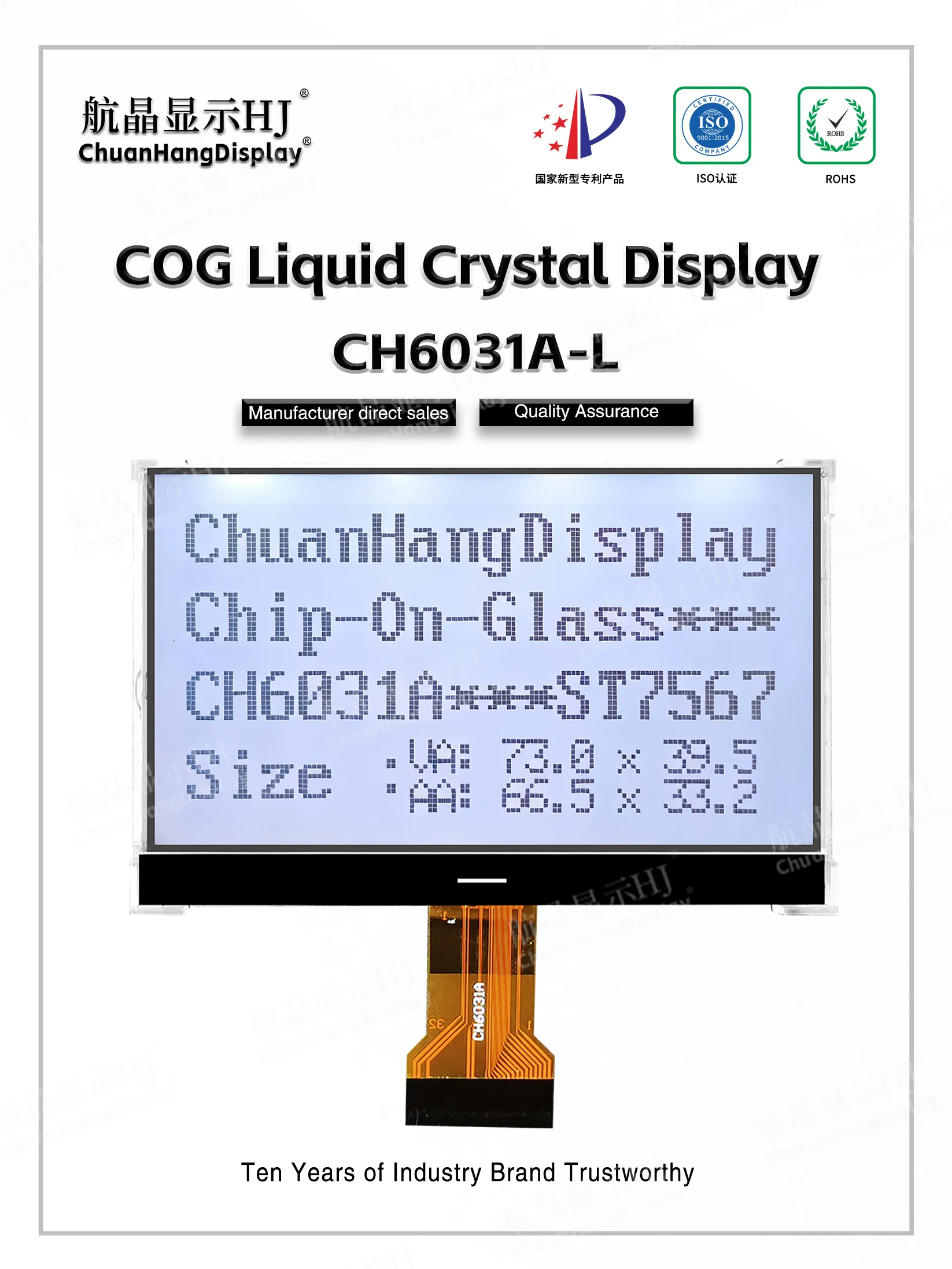

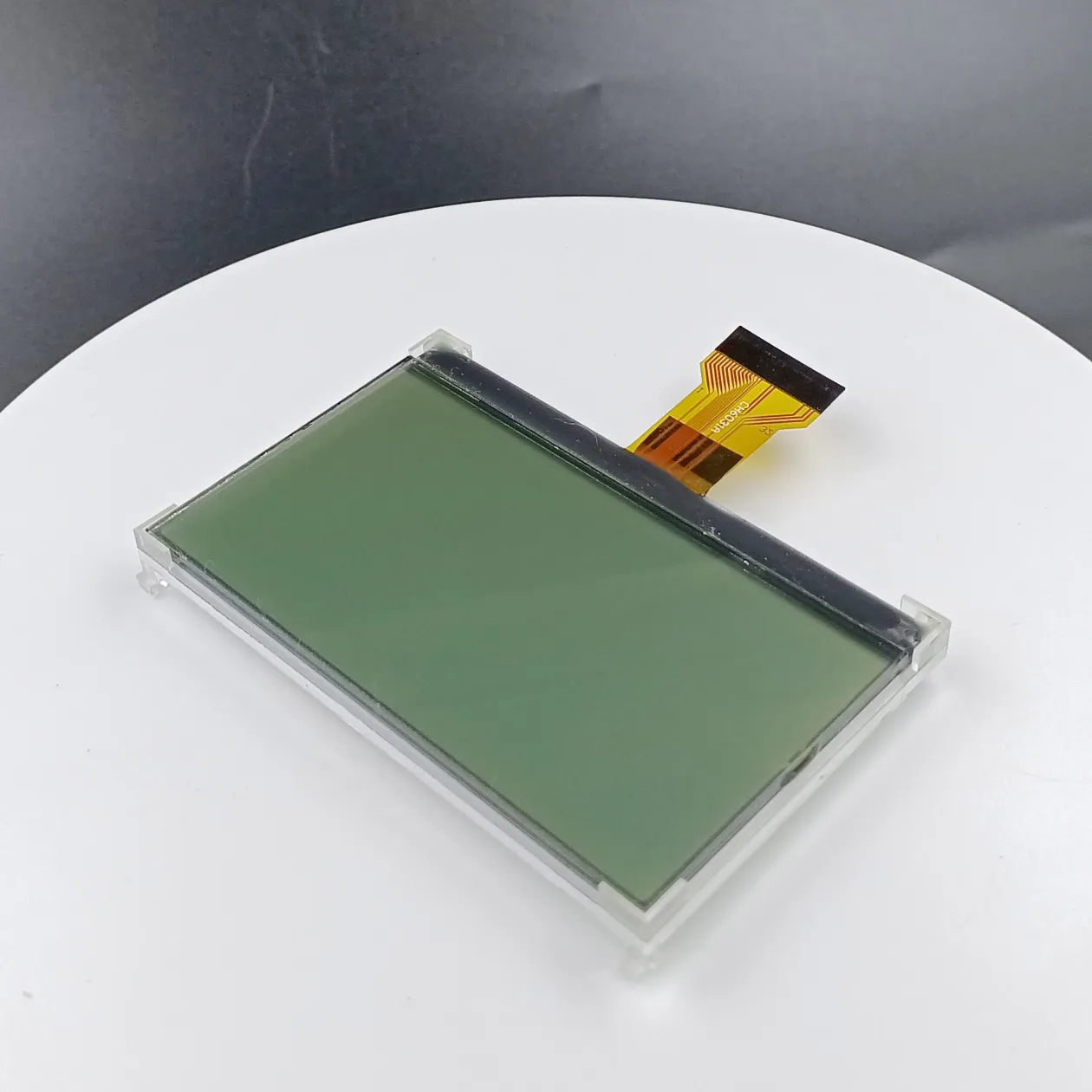

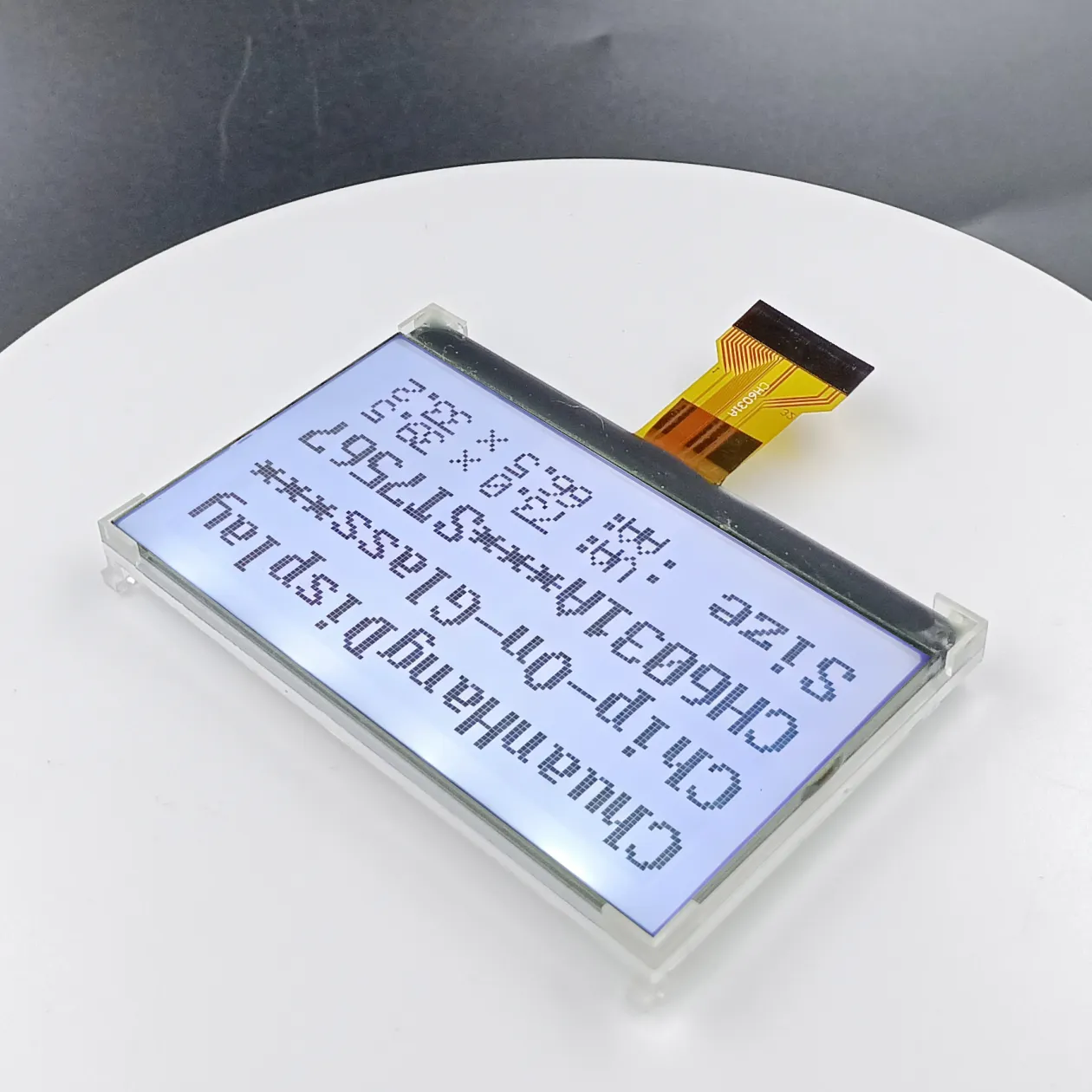

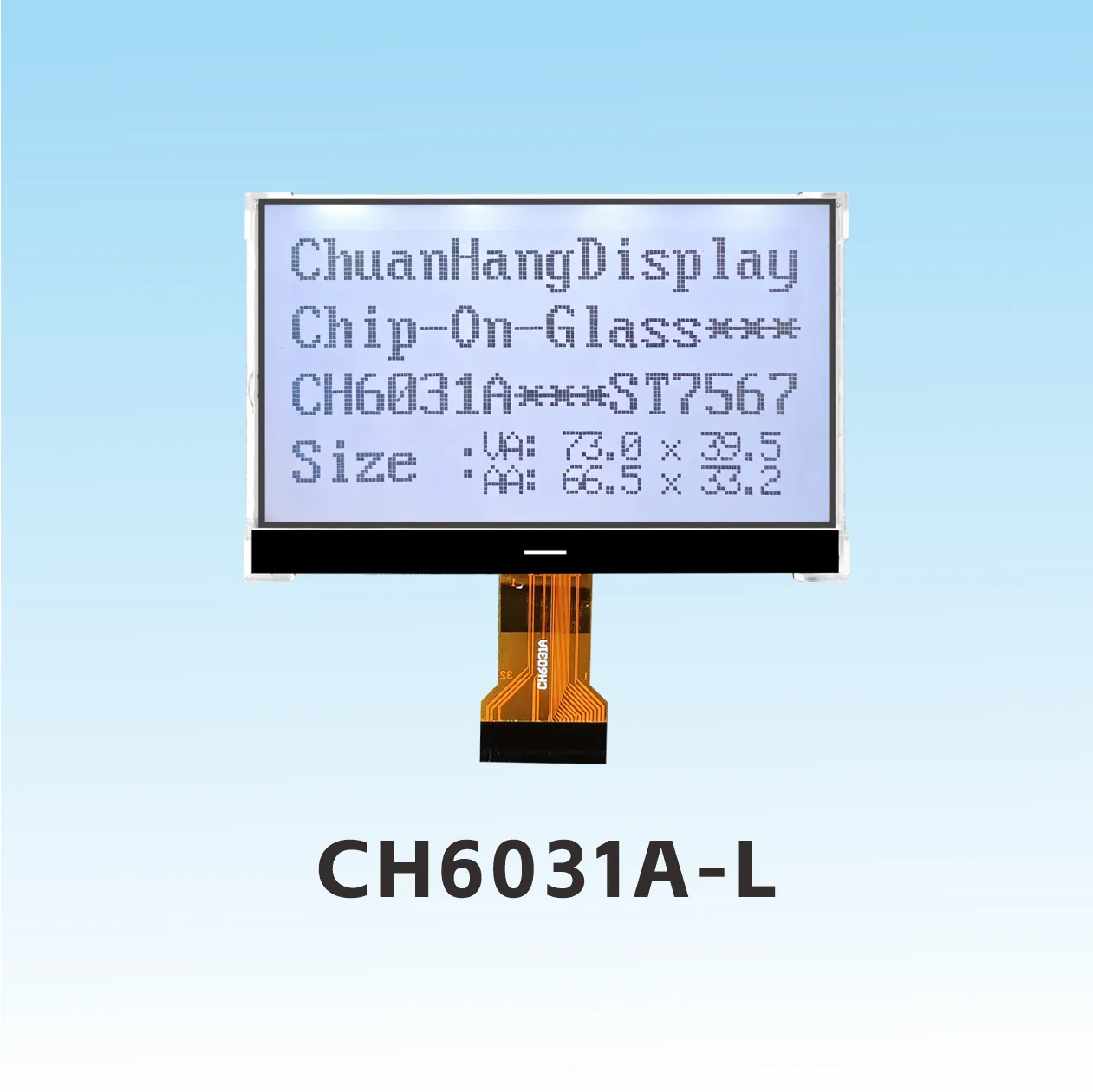

CH6031A-L 128x64 cog lcd
Product Description

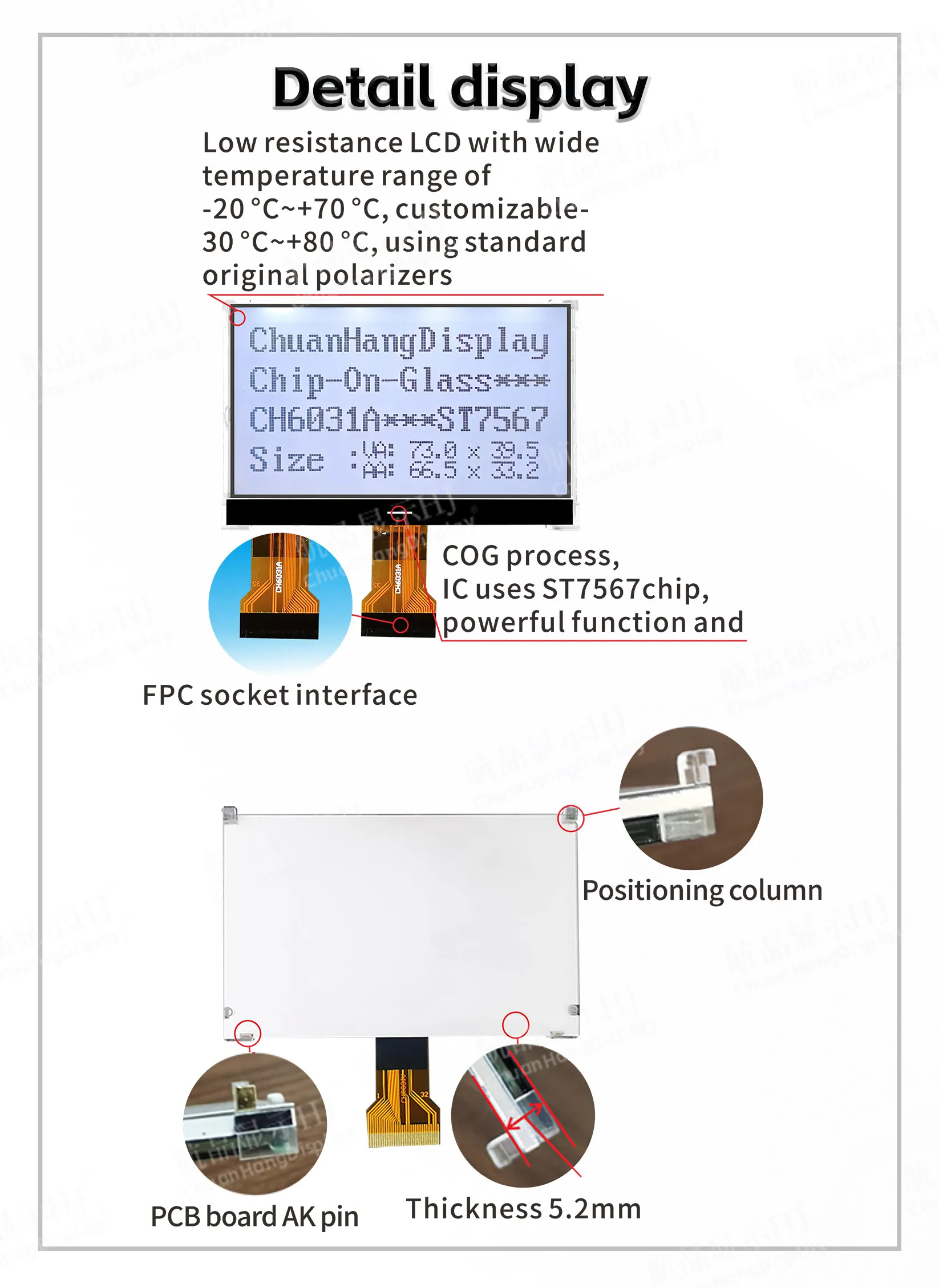

1.1 COG process, FPC soft wiring is a plug-in interface, the product has a backlight, thin thickness and stable structure.
1.2 IC uses ST7567, there is no font library in the chip, and the programmer compiles its own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 80mA.
1.4 LED backlight A and K are PCB boards. A and K need a separate power supply of 2.9V~3.0V.
1.5 Product features:
●The built-in display data RAM is 64x128 bits.
●Two external capacitors generate a boost.
●The contrast ratio is adjusted by the software.
●One screen shows 8 characters x 4 lines (16x16 dots).
●Single picture ≦128x64 dot matrix.

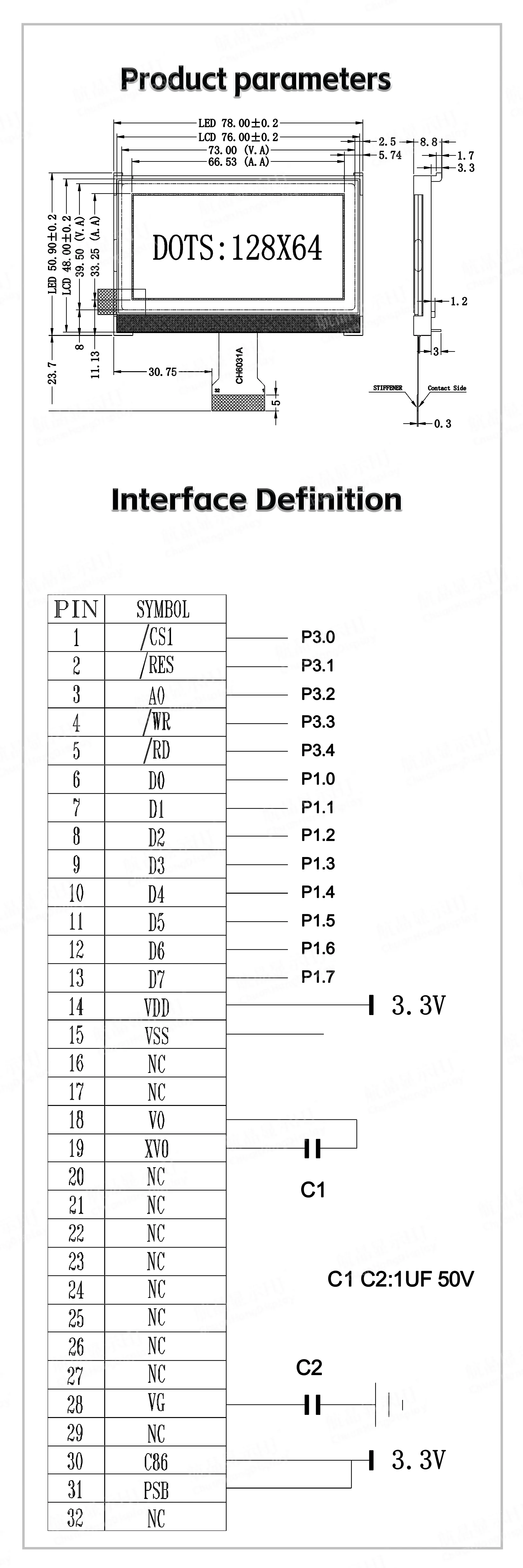

●You can choose a 4-wire SPI interface or 8-bit parallel 6800 timing or 8080 timing, and the circuit can be configured.
●Rich functions: interface display on/off, positive/reverse display, read/modify/write.
