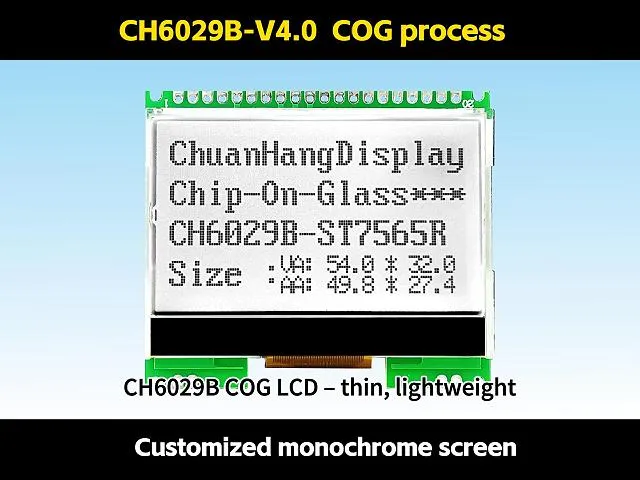

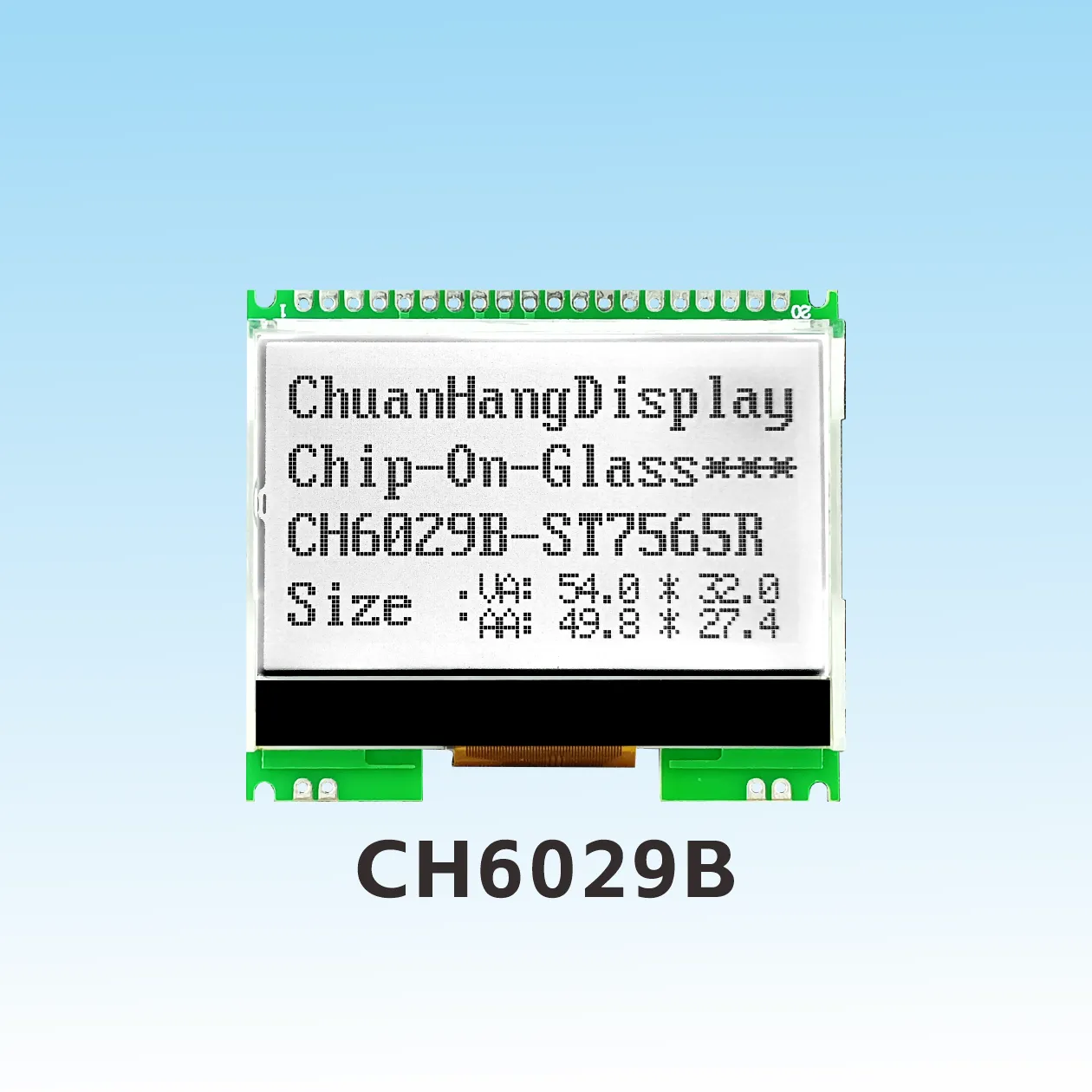

CH6029B 12864 lcd

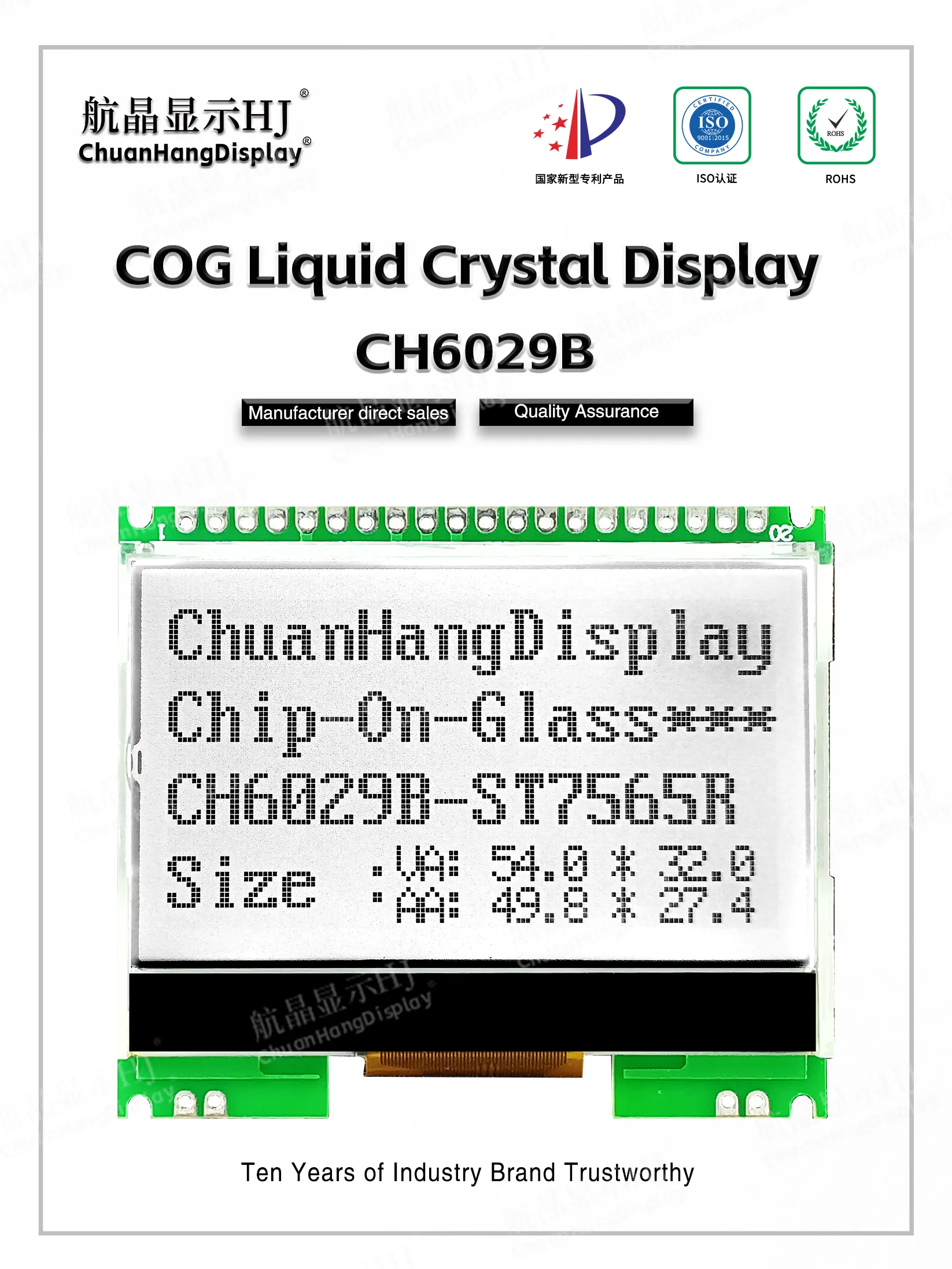

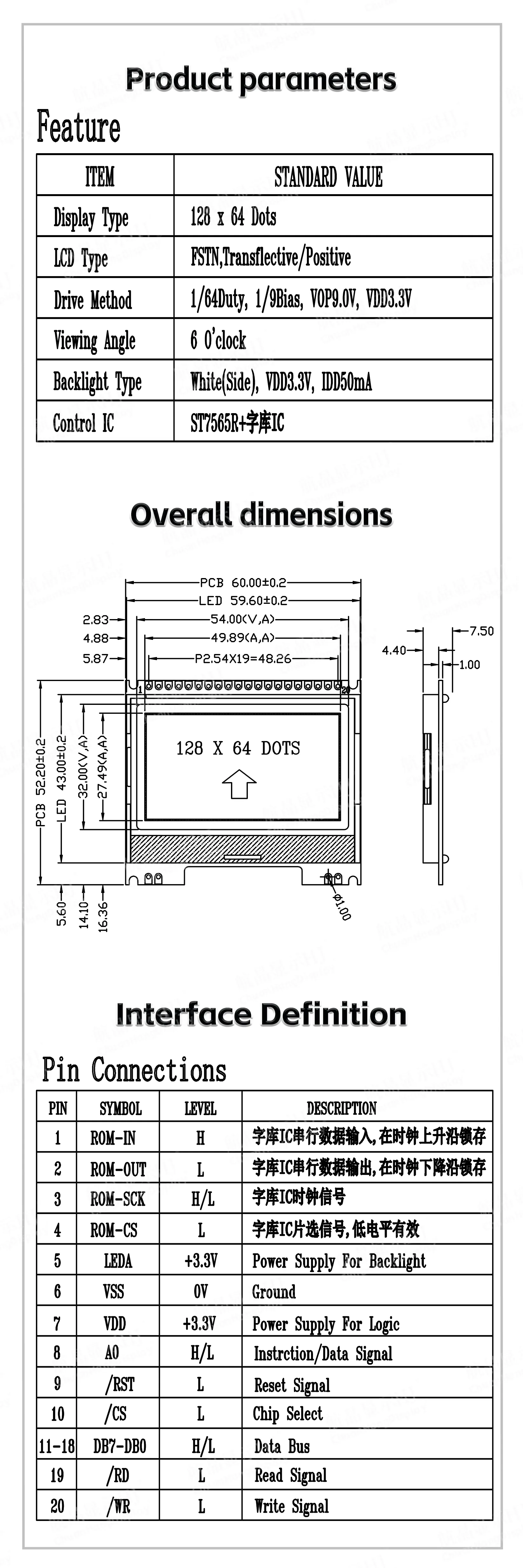

Product Description

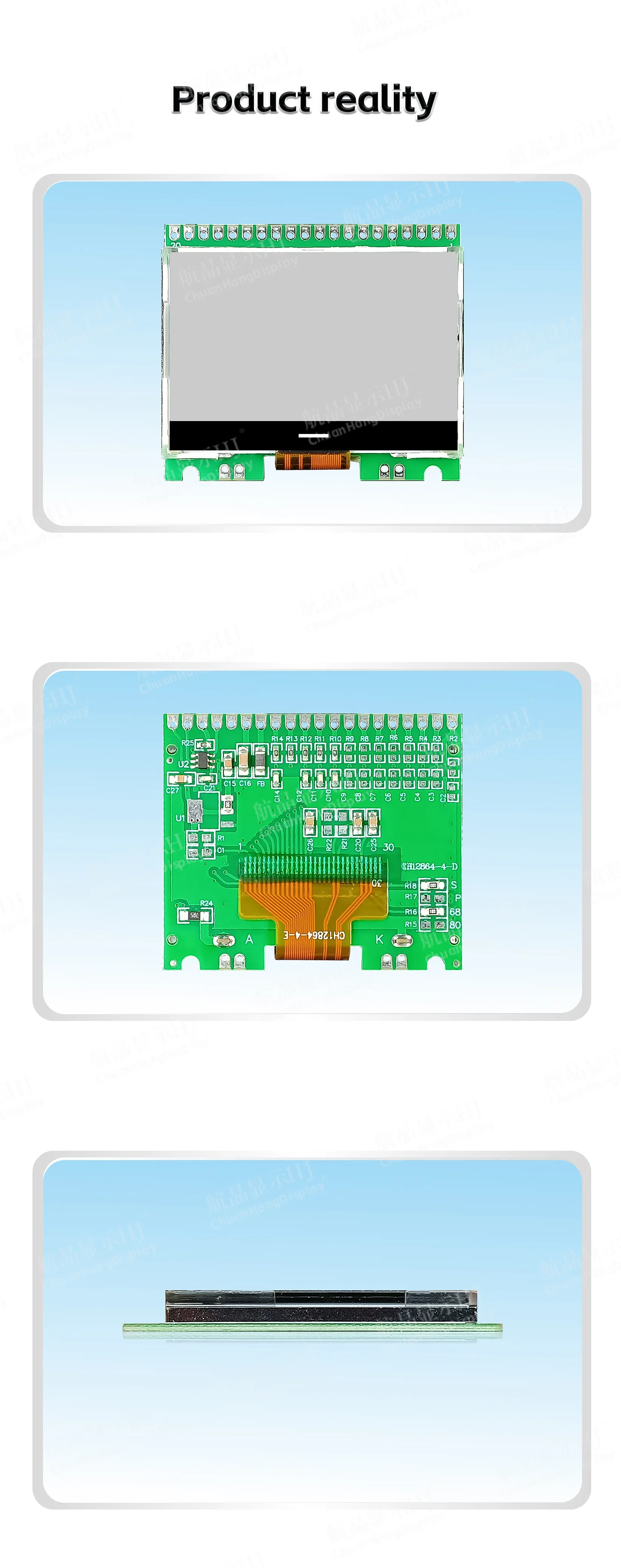

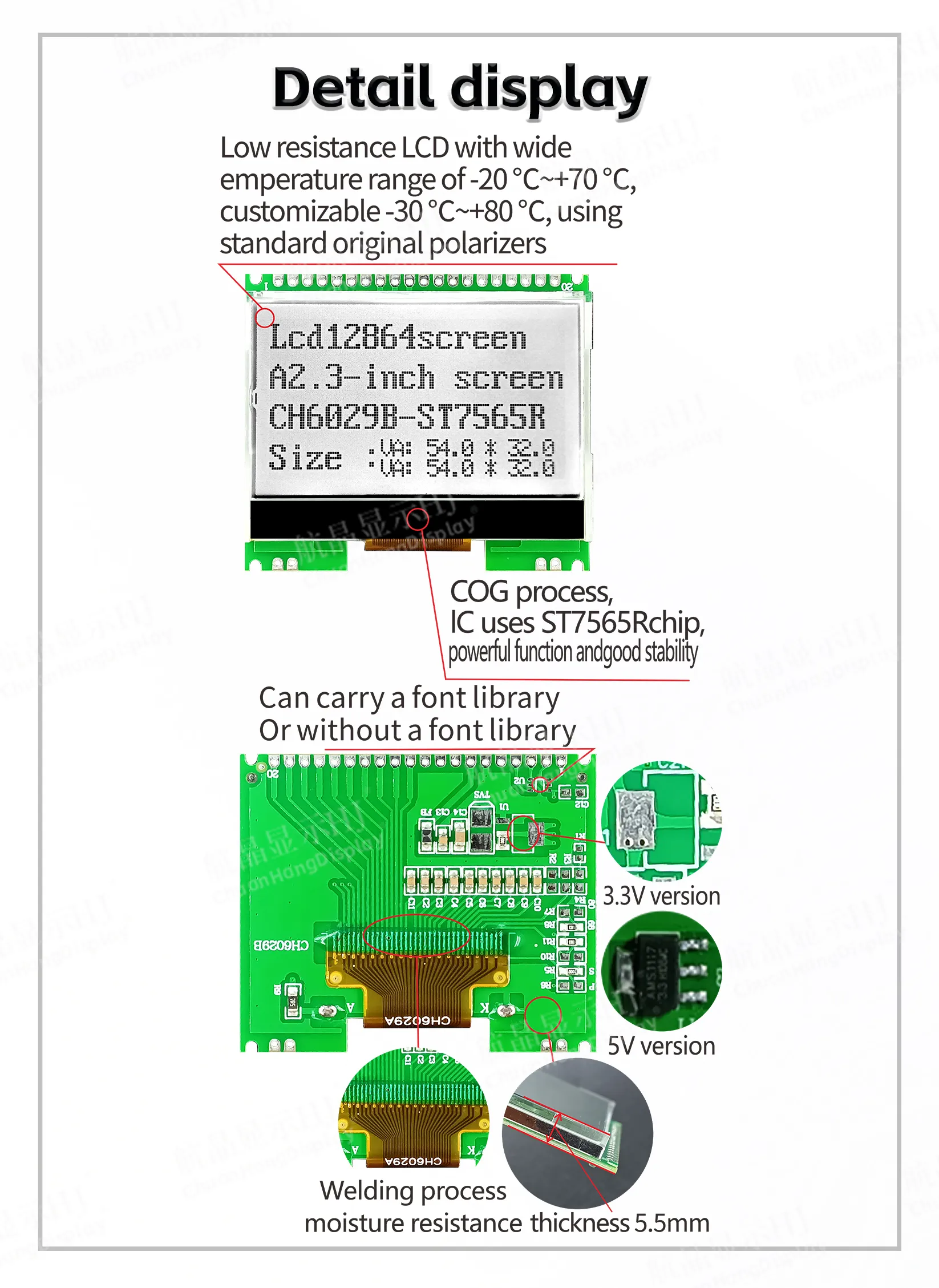

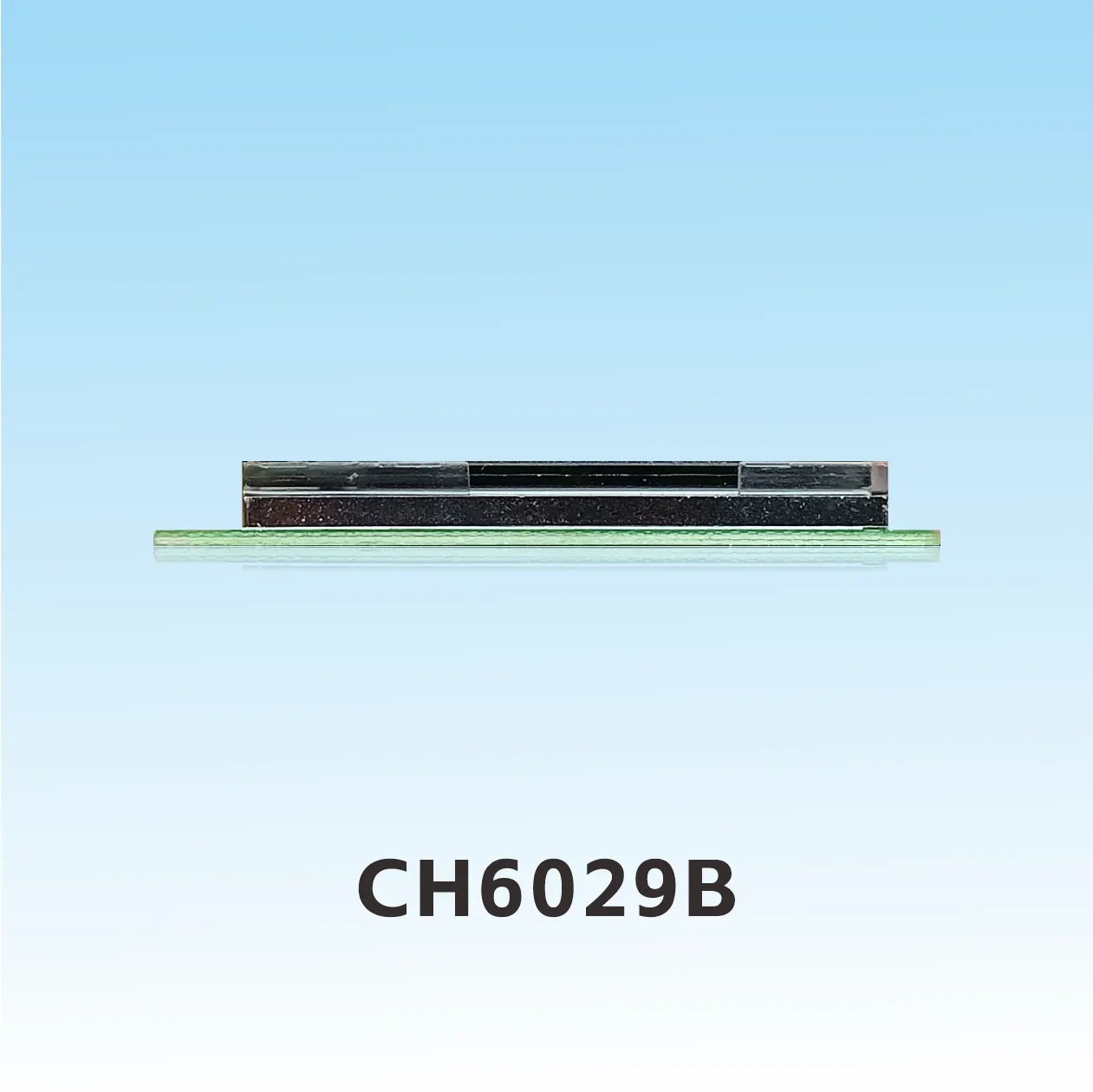

1.1 COG process, FPC welding process, product with pcb board, with backlight, thin thickness and stable structure.
1.2 IC uses ST7565R, there is no font library in the chip, and the programmer compiles his own font library.
1.3 There are word library chip leads, PIN1, PIN2, PIN3, PIN4.
1.4 Low power consumption, 3.3V/5V power supply mode can be selected, no backlight current within 1mA, there is backlight current in Within 80mA.

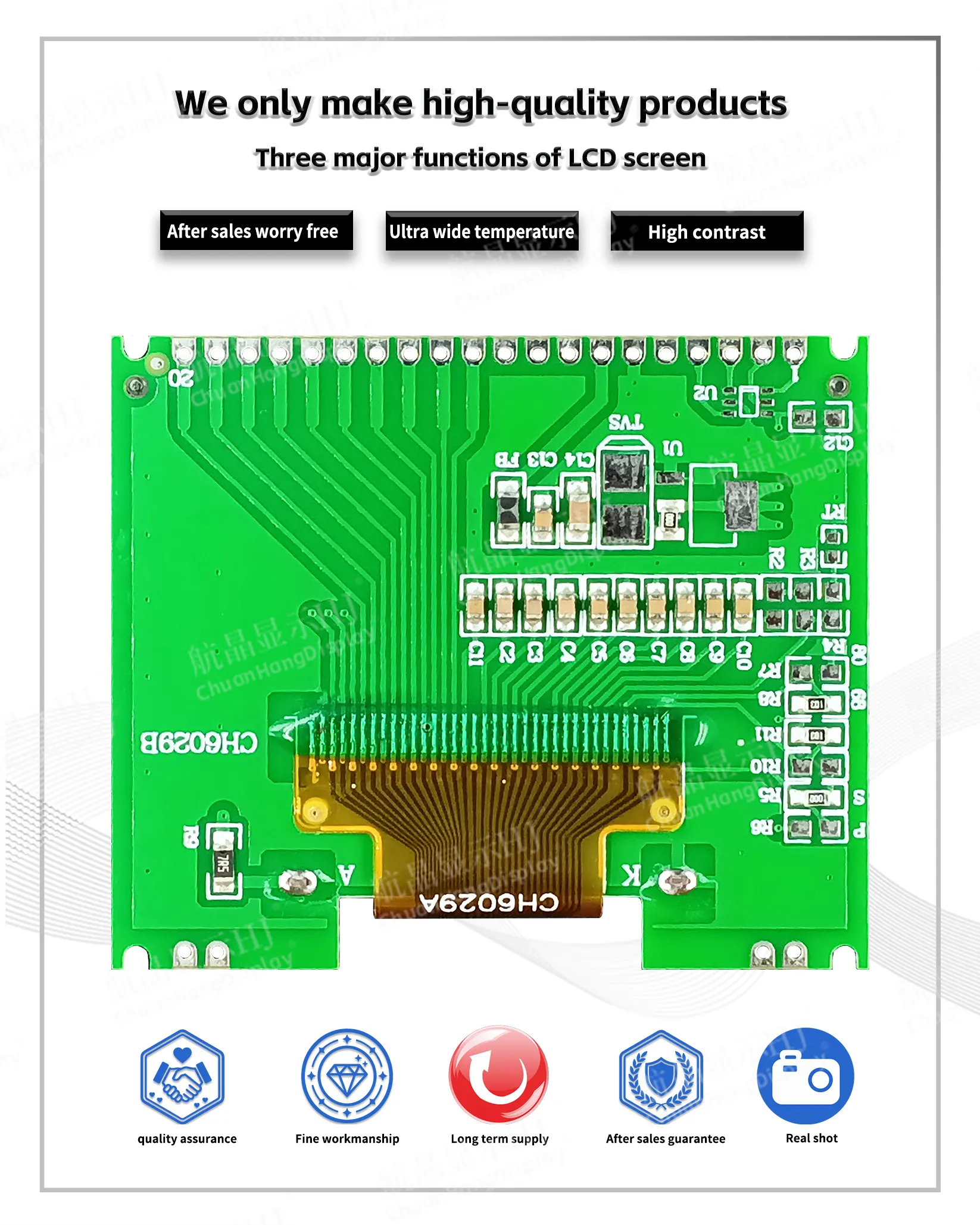

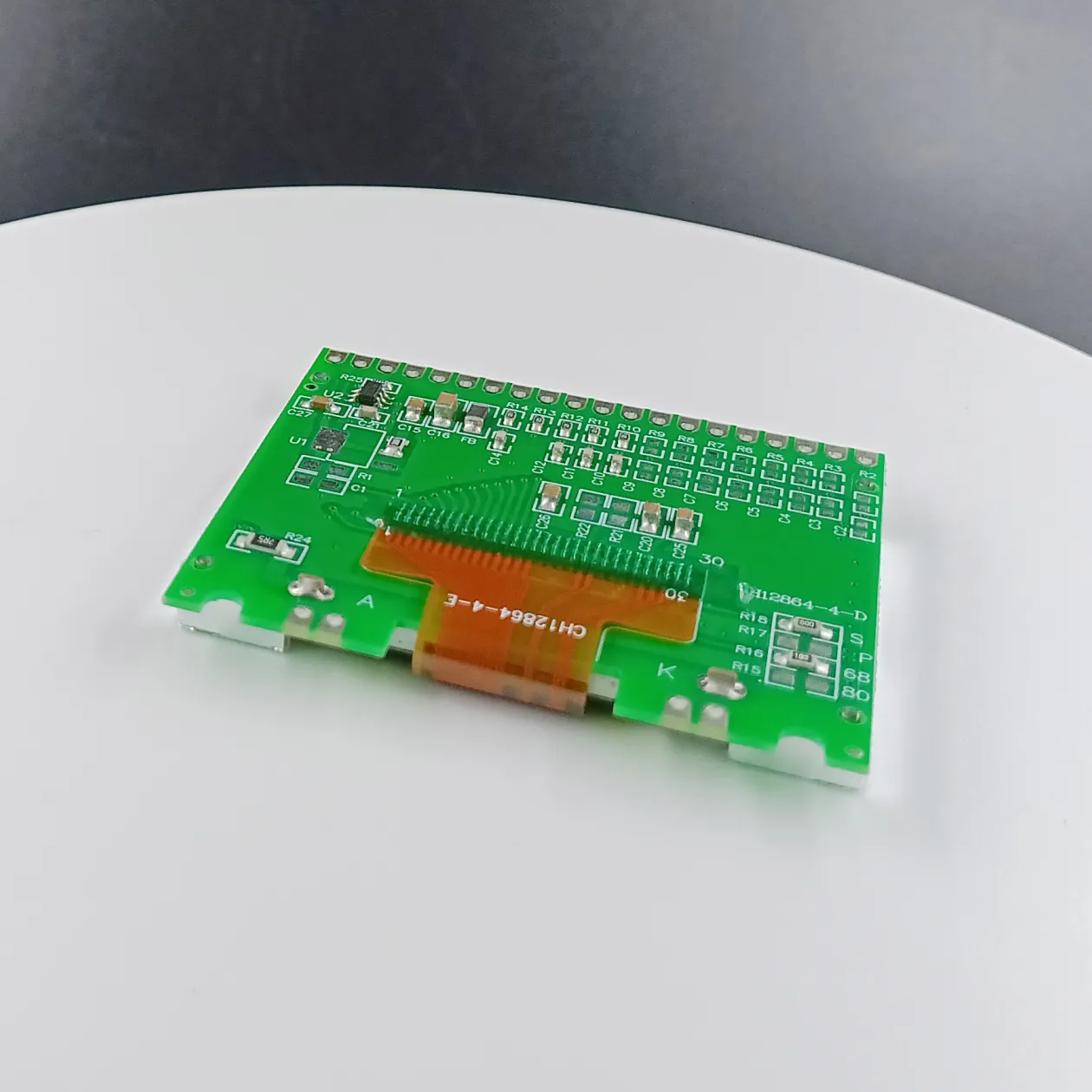

1.5 LED backlight A and K are soldered to the PCB board. LED can be driven by PIN5, PIN6 and PIN7.
1.6 Product features:
●The built-in display data RAM is 64x128 bits. Built-in boost circuit.
●The contrast ratio is adjusted by the software.
●One screen shows 8 characters x 4 lines (16x16 dots).
●Single picture ≦128x64 dot matrix.
●You can choose 4-wire SPI interface or 8-bit parallel 6800 timing or 8080 timing.
●Rich functions: The interface display is on/off, positive/reverse, read/modify/write.
1.2 IC uses ST7565R, there is no font library in the chip, and the programmer compiles his own font library.
1.3 There are word library chip leads, PIN1, PIN2, PIN3, PIN4.
1.4 Low power consumption, 3.3V/5V power supply mode can be selected, no backlight current within 1mA, there is backlight current in Within 80mA.
1.5 LED backlight A and K are soldered to the PCB board. LED can be driven by PIN5, PIN6 and PIN7.
1.6 Product features:
●The built-in display data RAM is 64x128 bits. Built-in boost circuit.
●The contrast ratio is adjusted by the software.
●One screen shows 8 characters x 4 lines (16x16 dots).
●Single picture ≦128x64 dot matrix.
●You can choose 4-wire SPI interface or 8-bit parallel 6800 timing or 8080 timing.
●Rich functions: The interface display is on/off, positive/reverse, read/modify/write.
