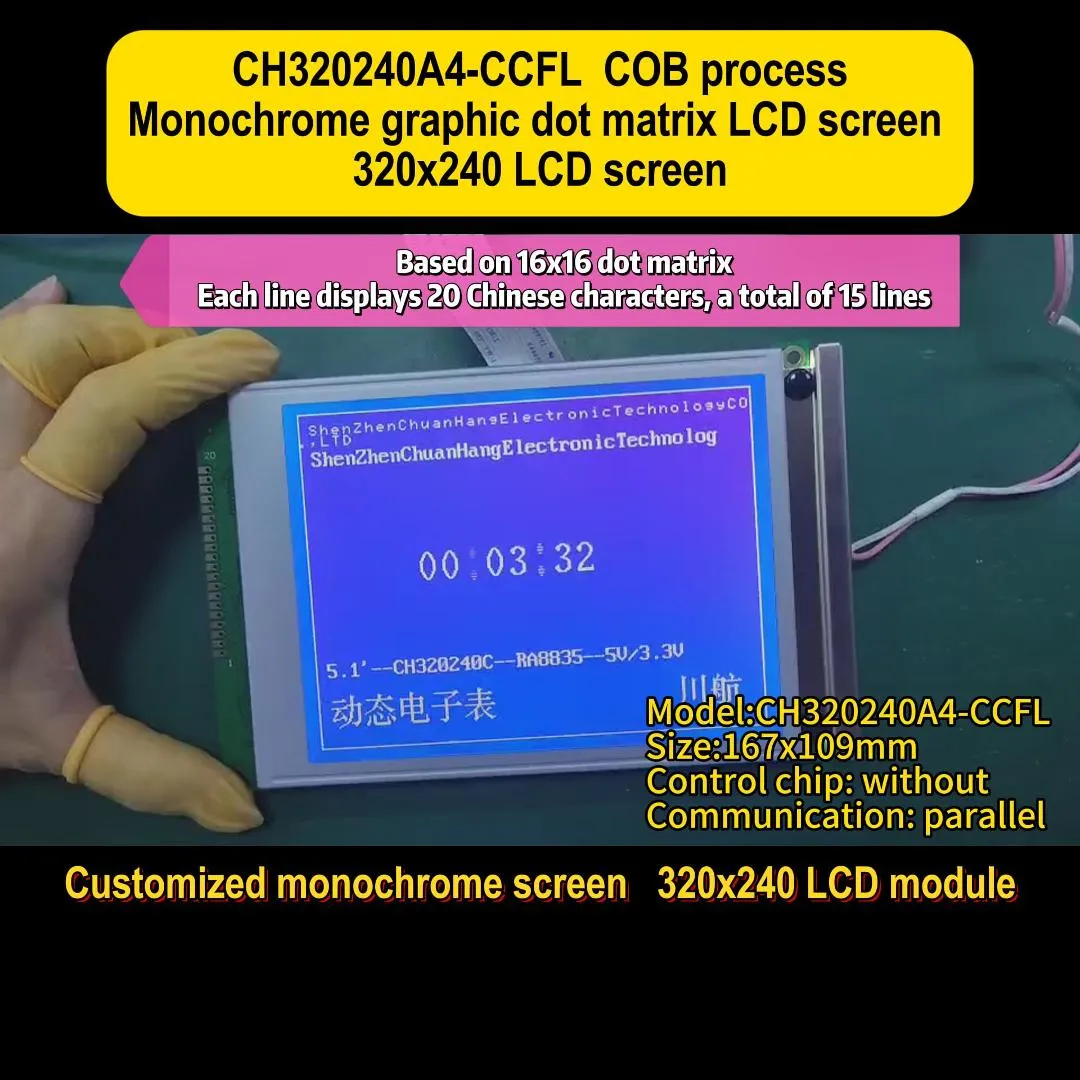

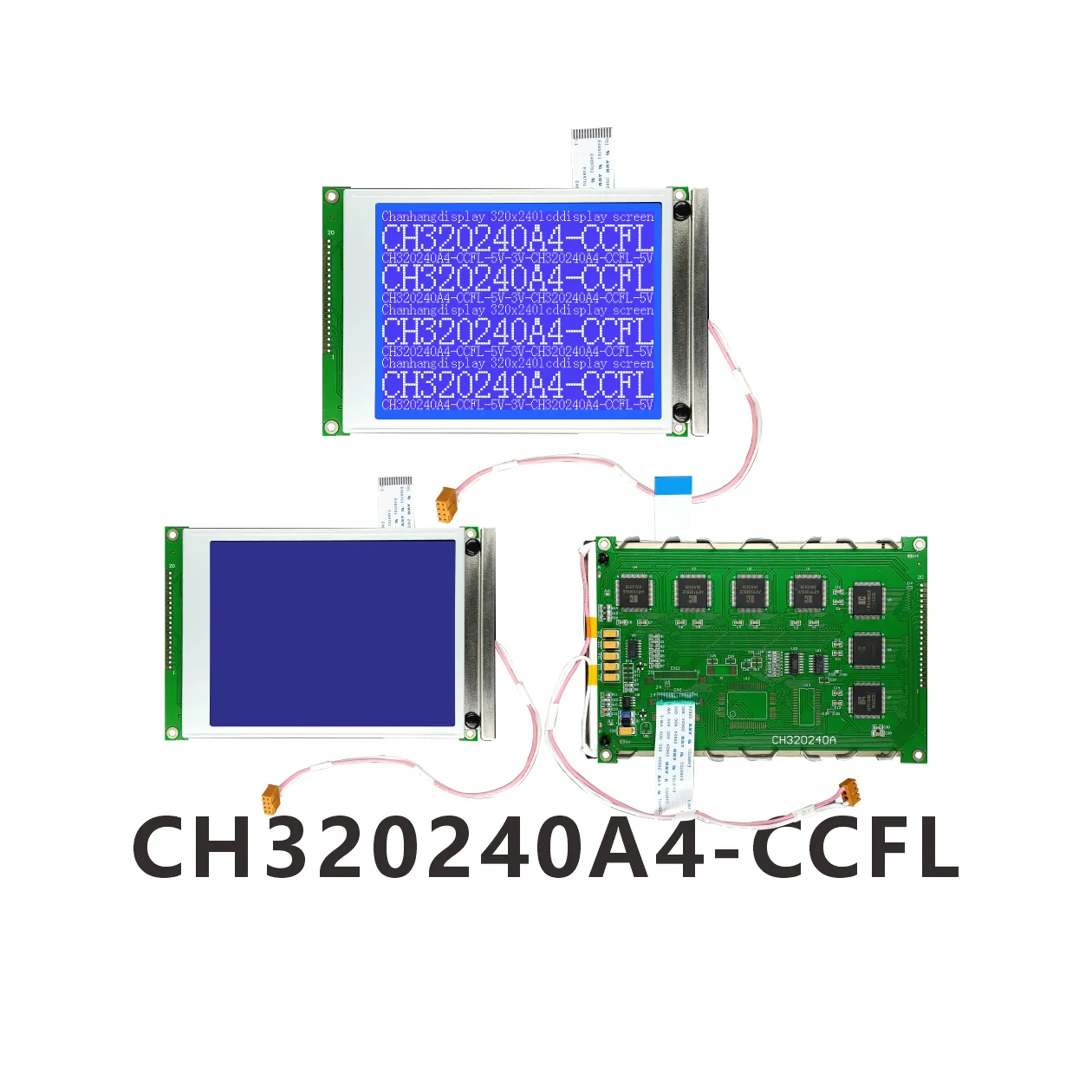

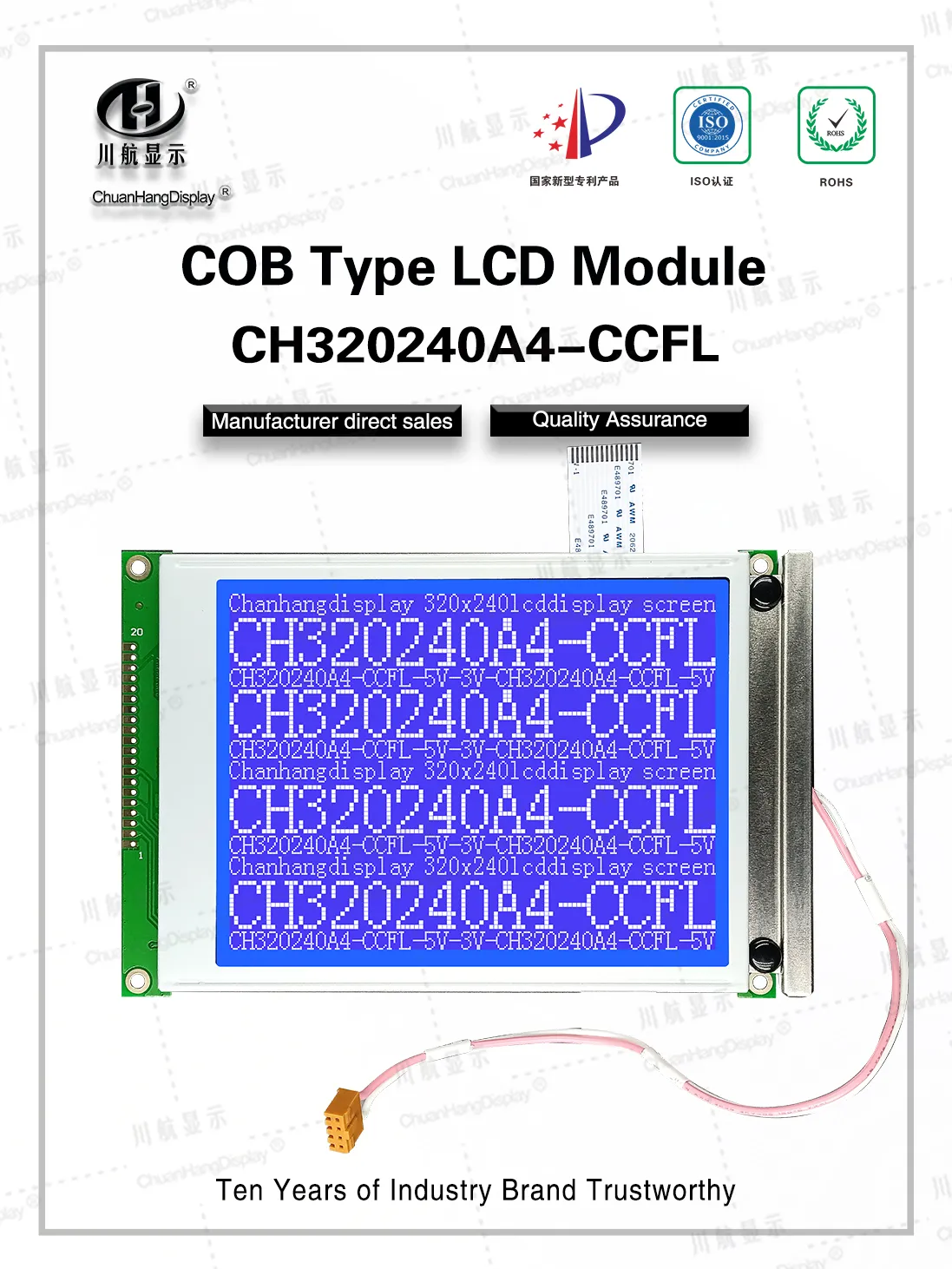

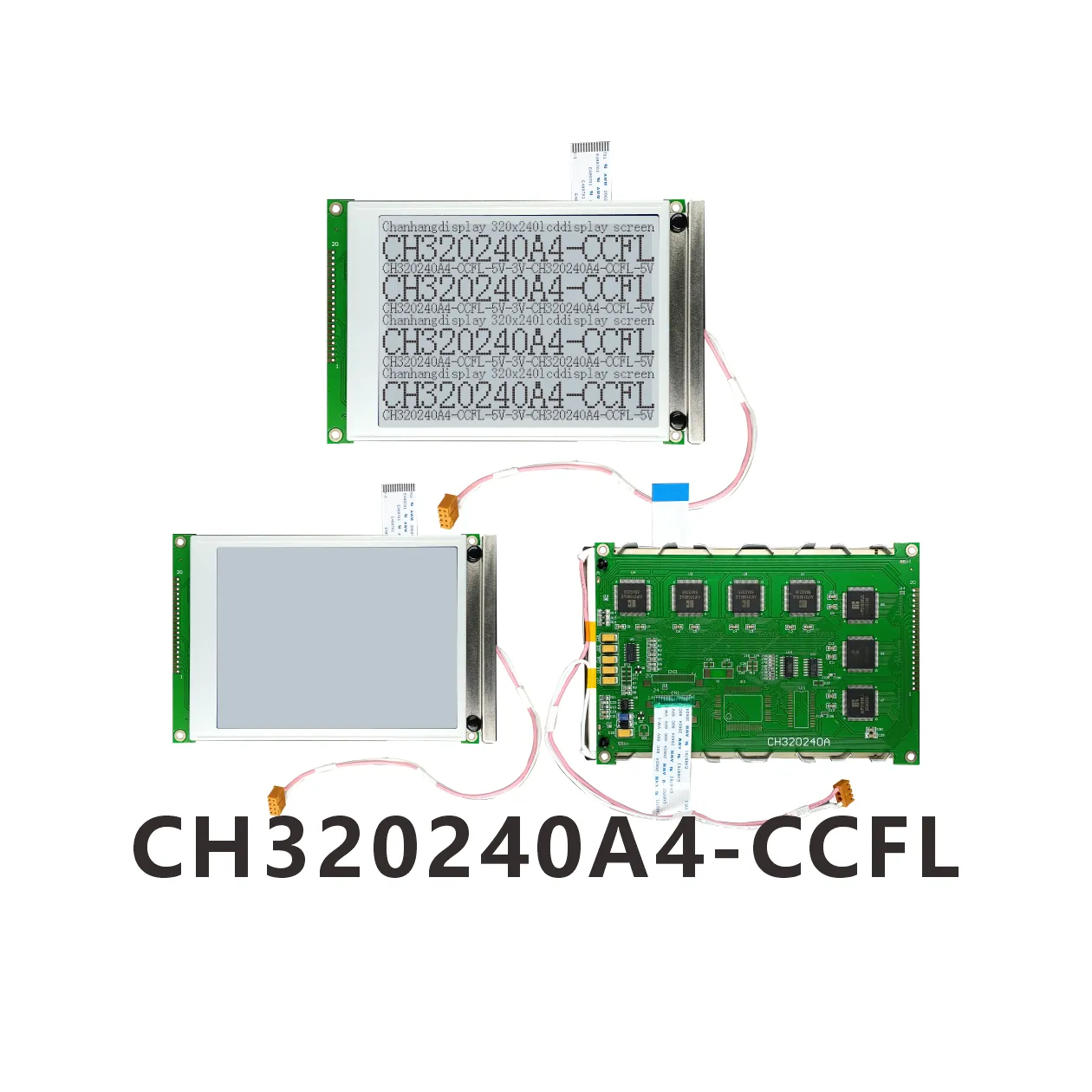

CH320240A4-CCFL 320x240 LCD Module
Product Description

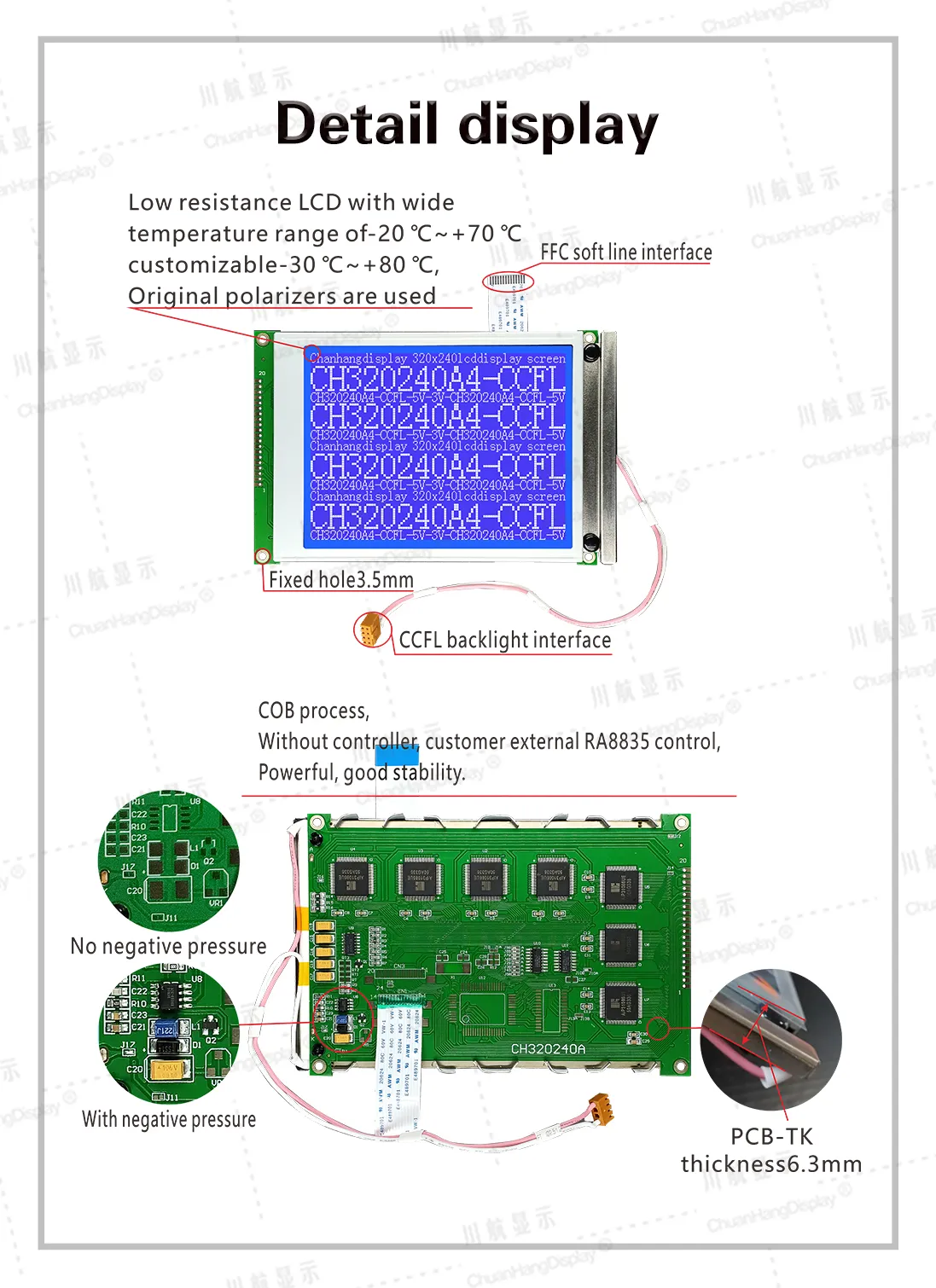

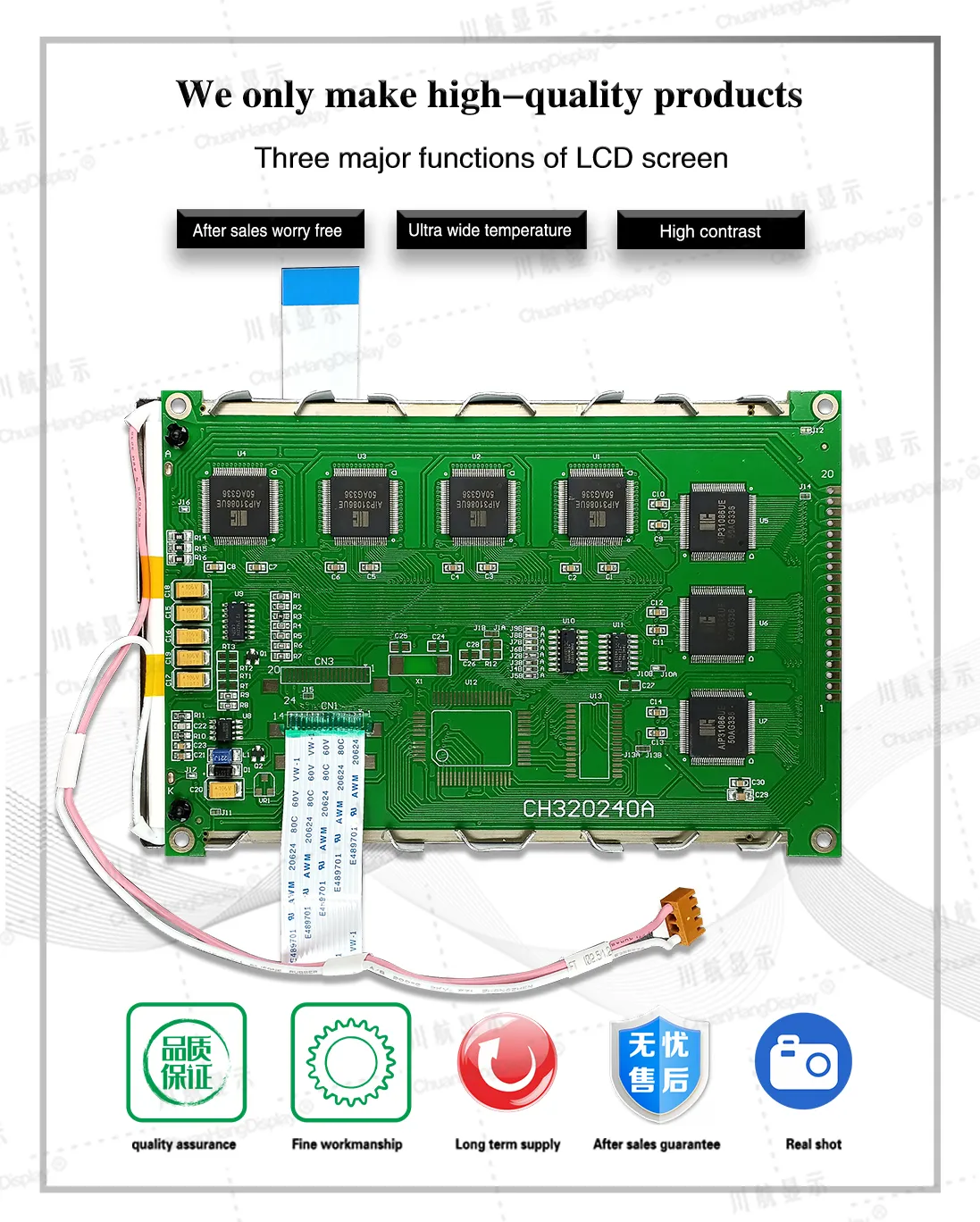

1.1 320*240 resolution, COB process dot matrix LCD module, the product comes with PCB board, CCFL backlight, conductive tape connection, stable structure.
1.2 Replace DMF-50840, built-in 240 rows and 320 columns LCD driver chip, no control chip, can be connected to external LCD control chip RA8835, programmers compile Chinese character library.
1.3 Low power consumption, 5V/3.3V two power supply modes.
1.4 CCFL backlight external supply AC110V.

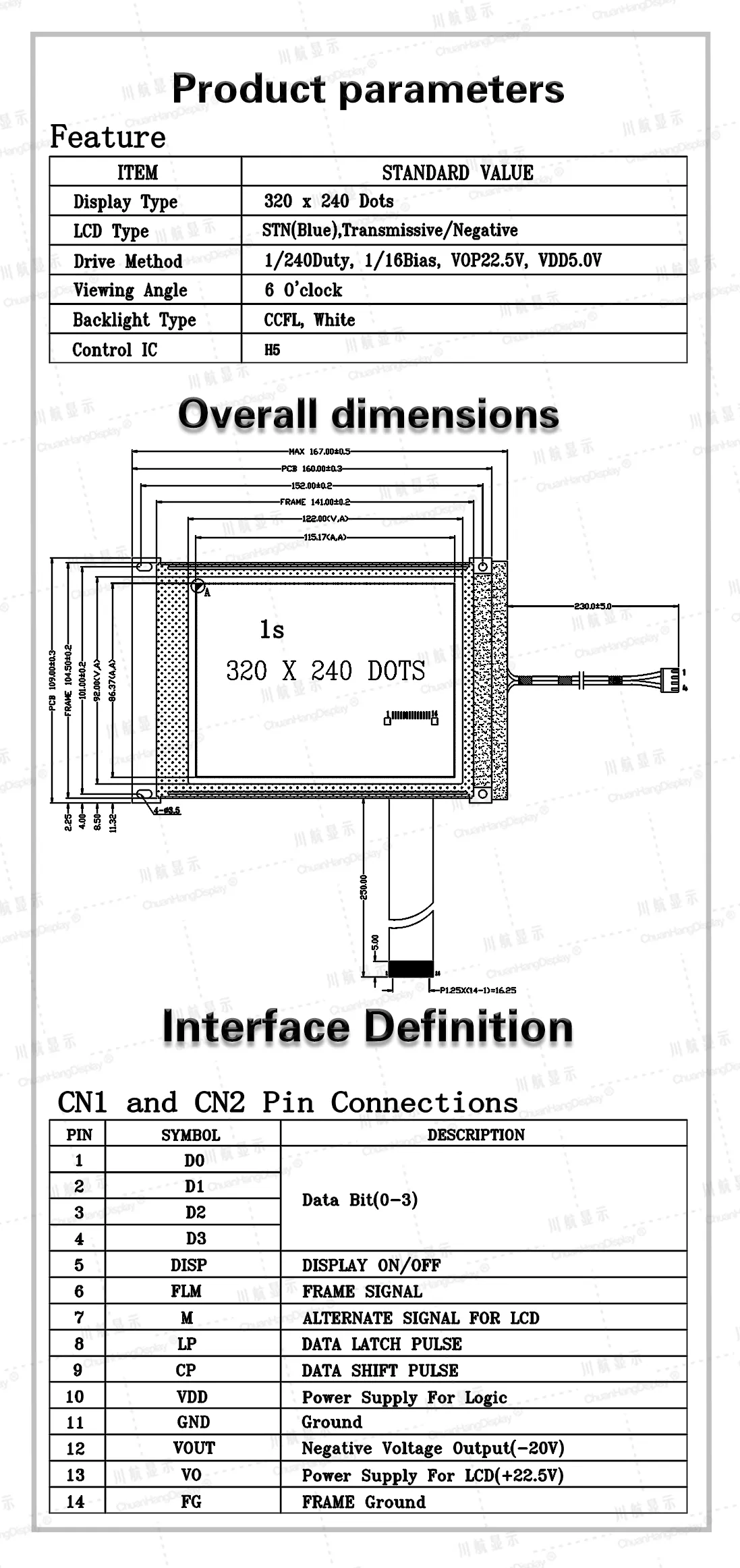

1.5 Product features:
●1/240 duty, 4-bit parallel data processing
●The module has built-in M signal.
●One screen displays 20 characters x 15 rows (16x16 dot matrix).
●Single picture ≦ 320x240 dot matrix.
