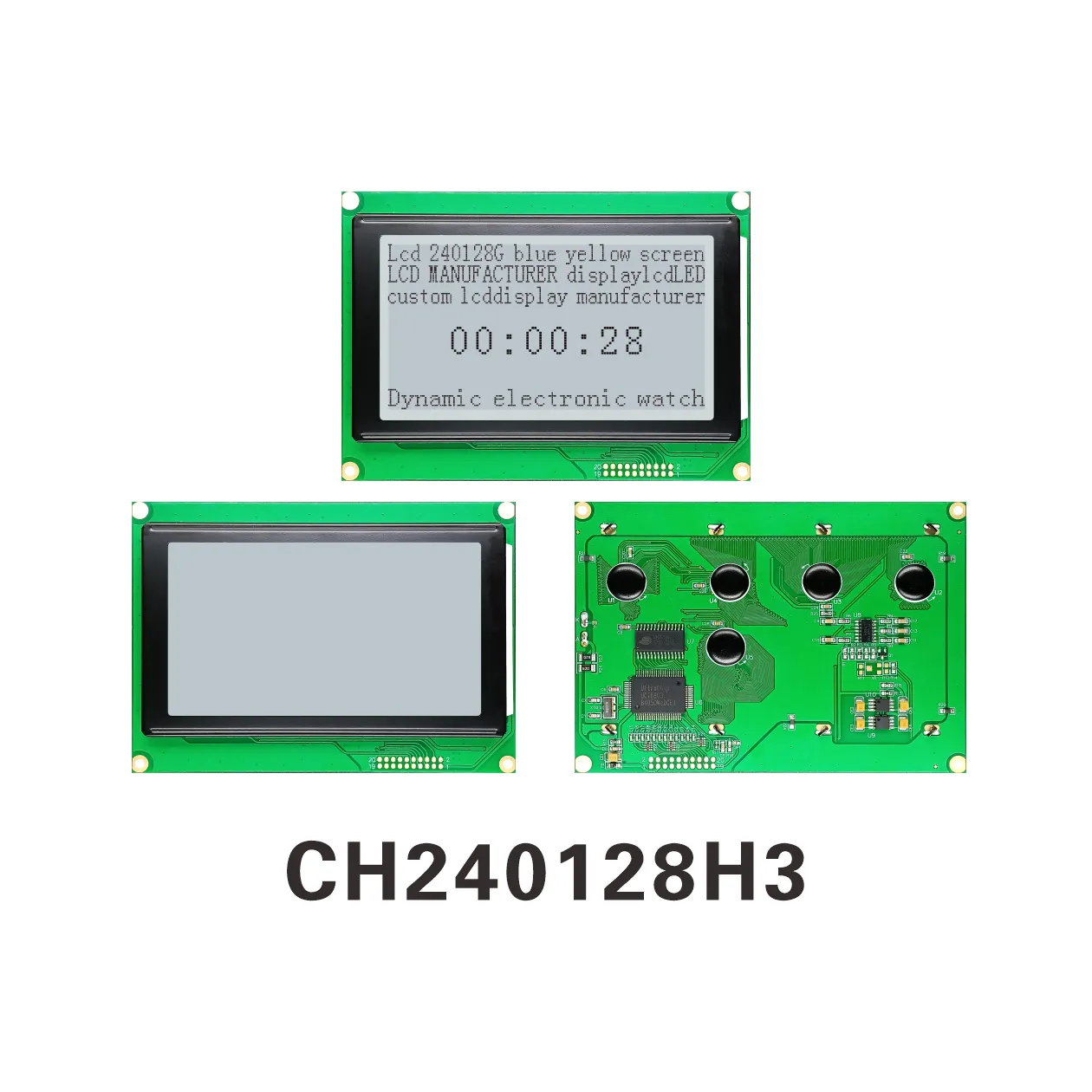

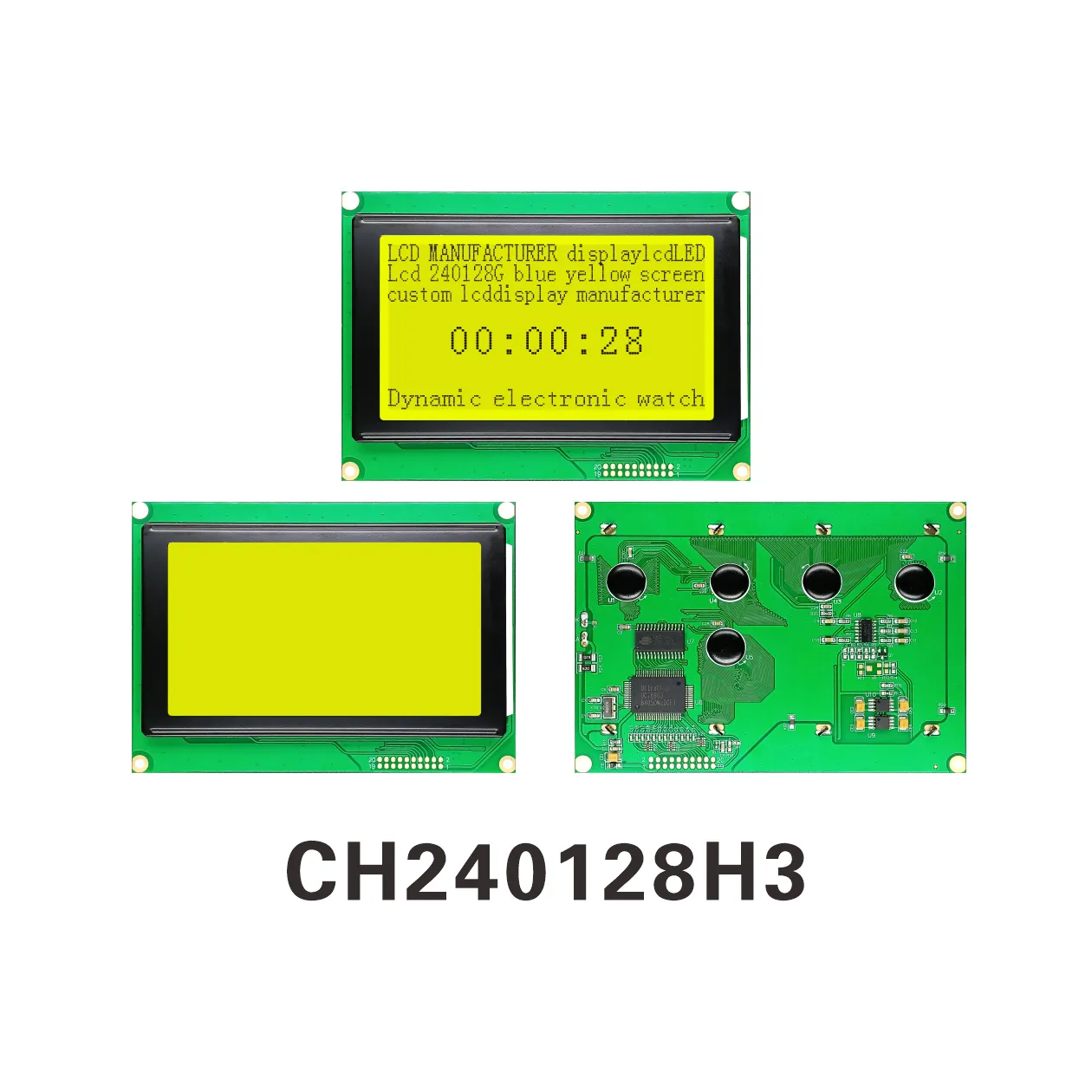

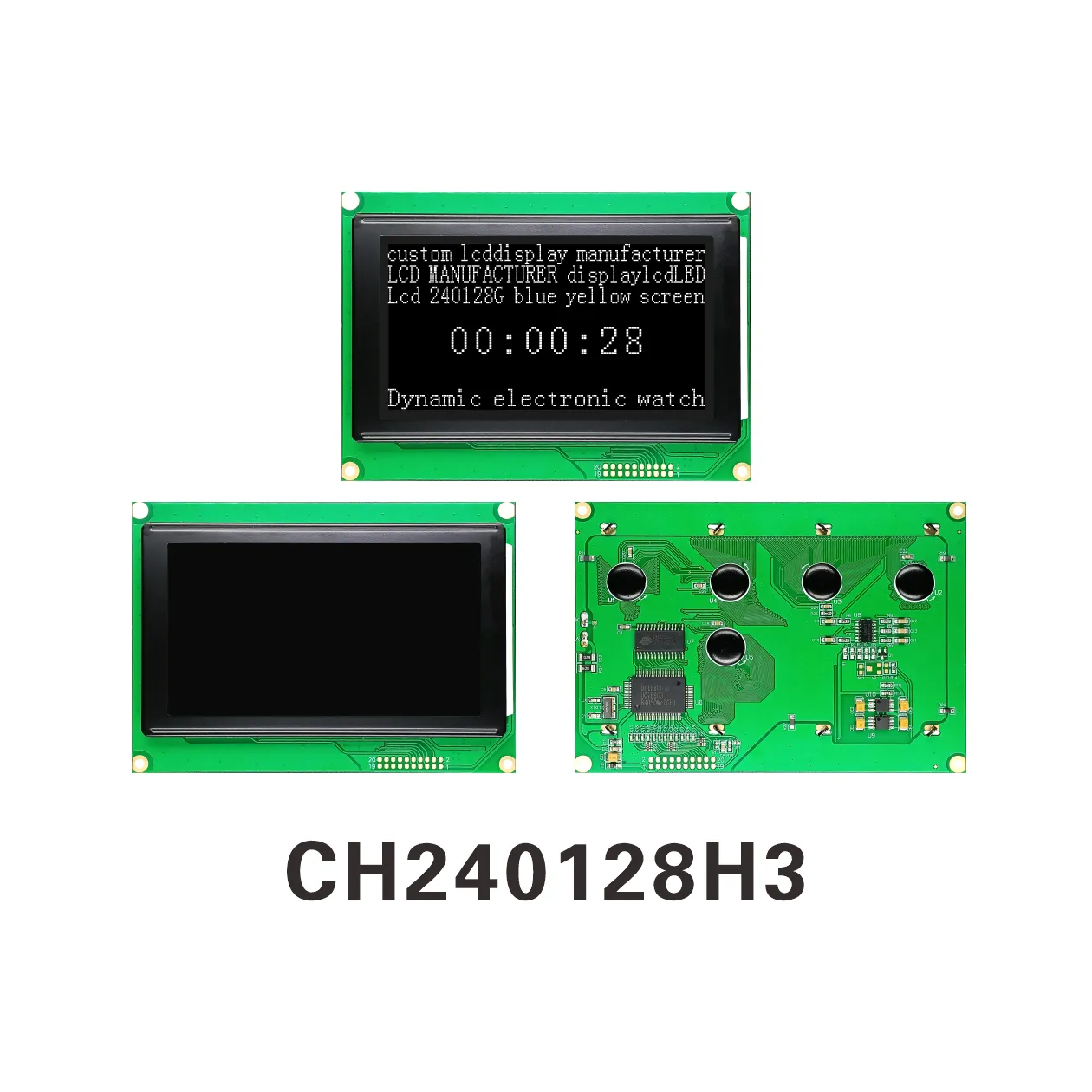

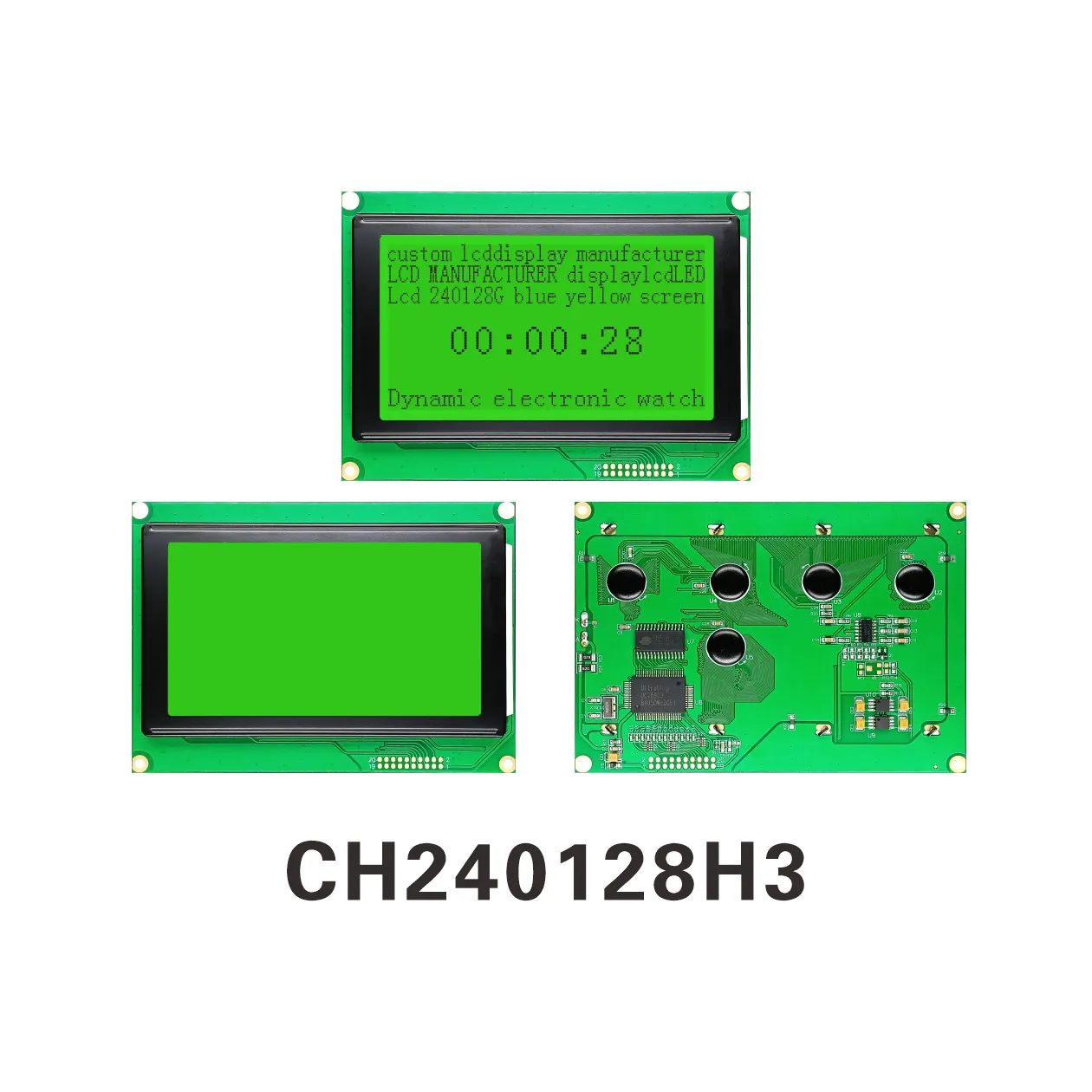

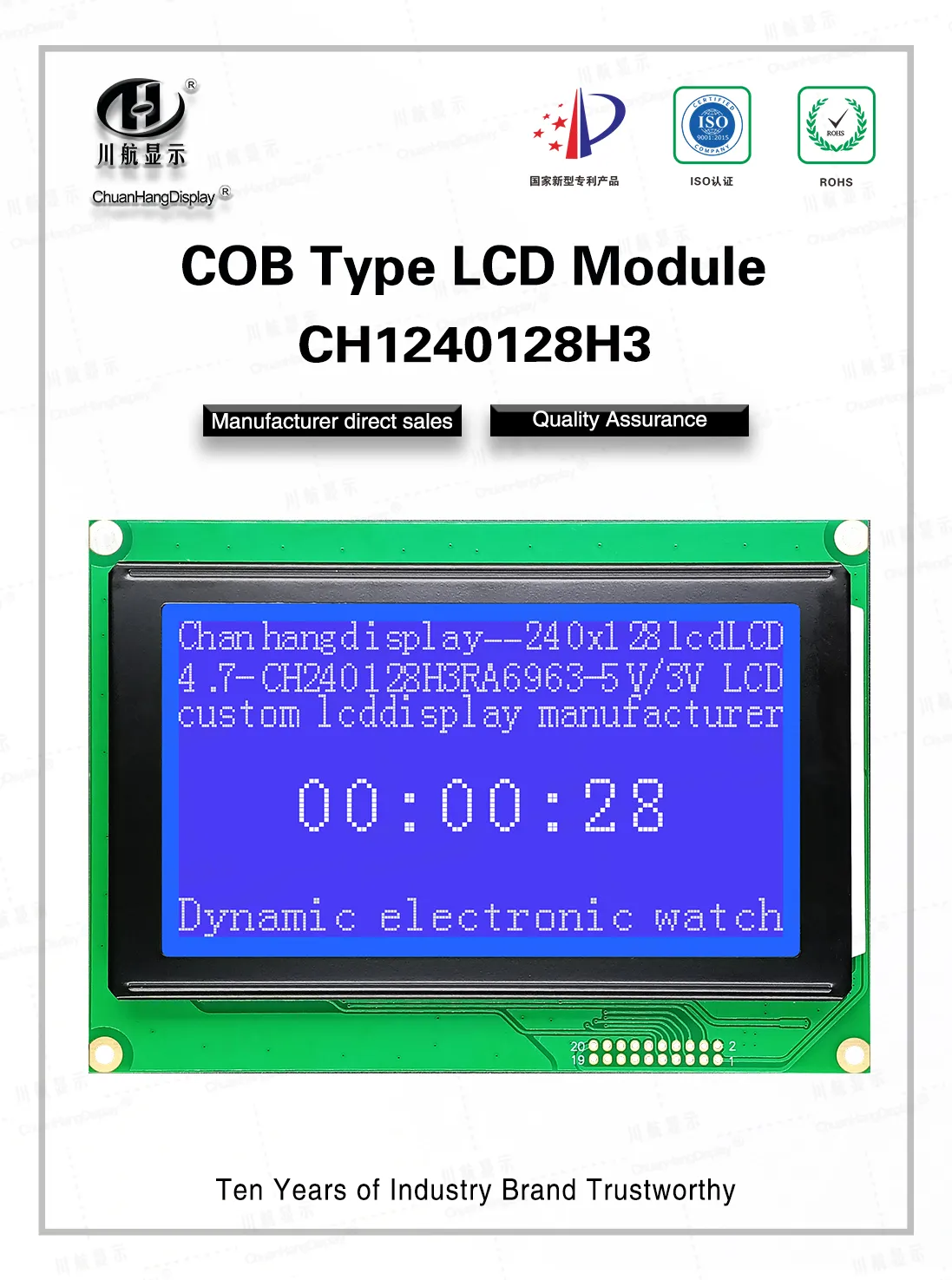

CH240128H3 240x128 Graphic LCD Displays
Product Description

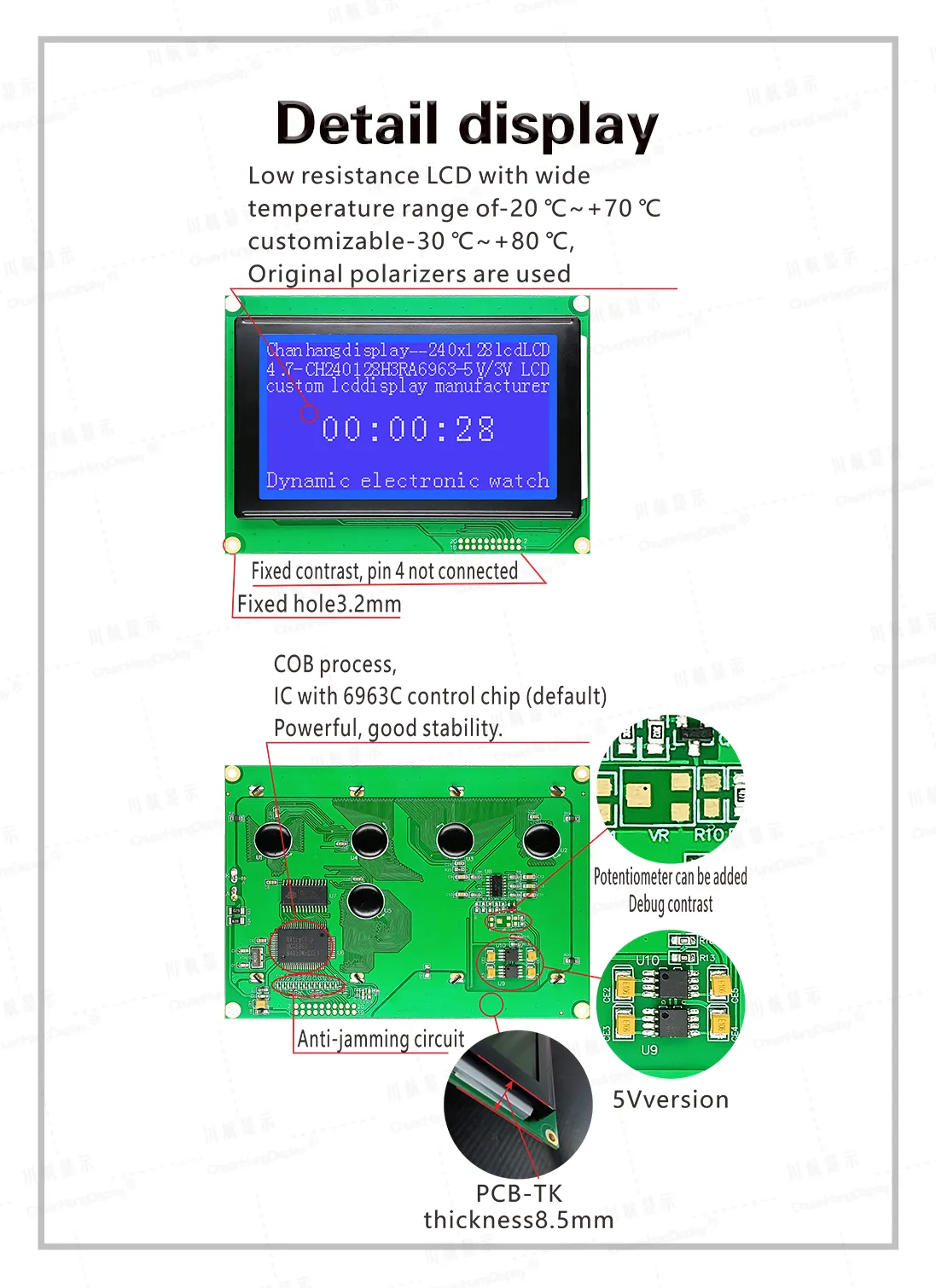

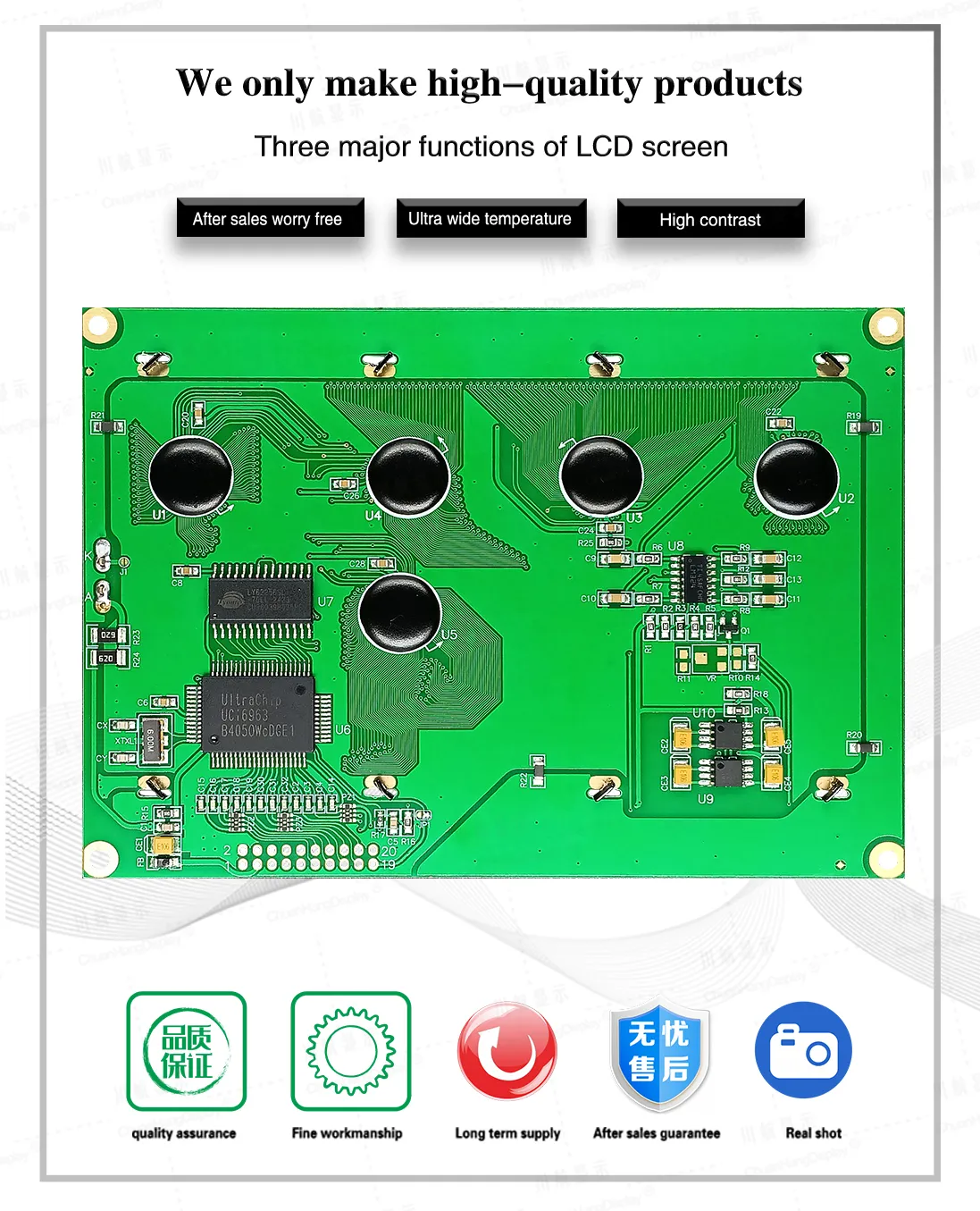

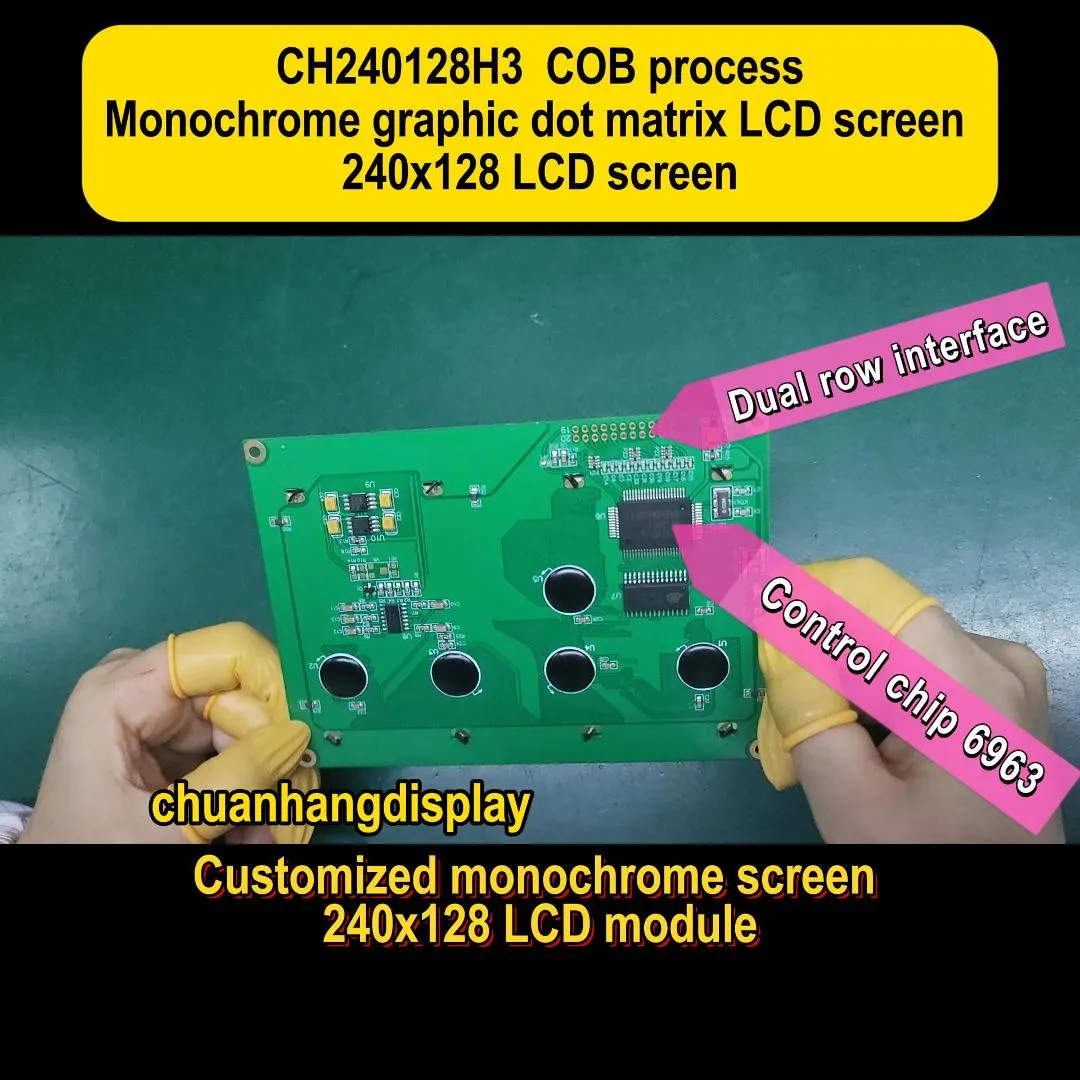

1.1 C0B process, double-row pin interface, product with PCB board, backlight, conductive tape connection, stable structure.
1.2 IC uses t6963c/uc6963, chip built-in character library ROM (CGROM), no Chinese character library, programmers compile Chinese character library.
1.3 Low power consumption, 5V/3.3V two power modes, no backlight current within 20mA, backlight current within 180mA.
1.4 LED can be driven by PIN2, PIN3, PIN20.

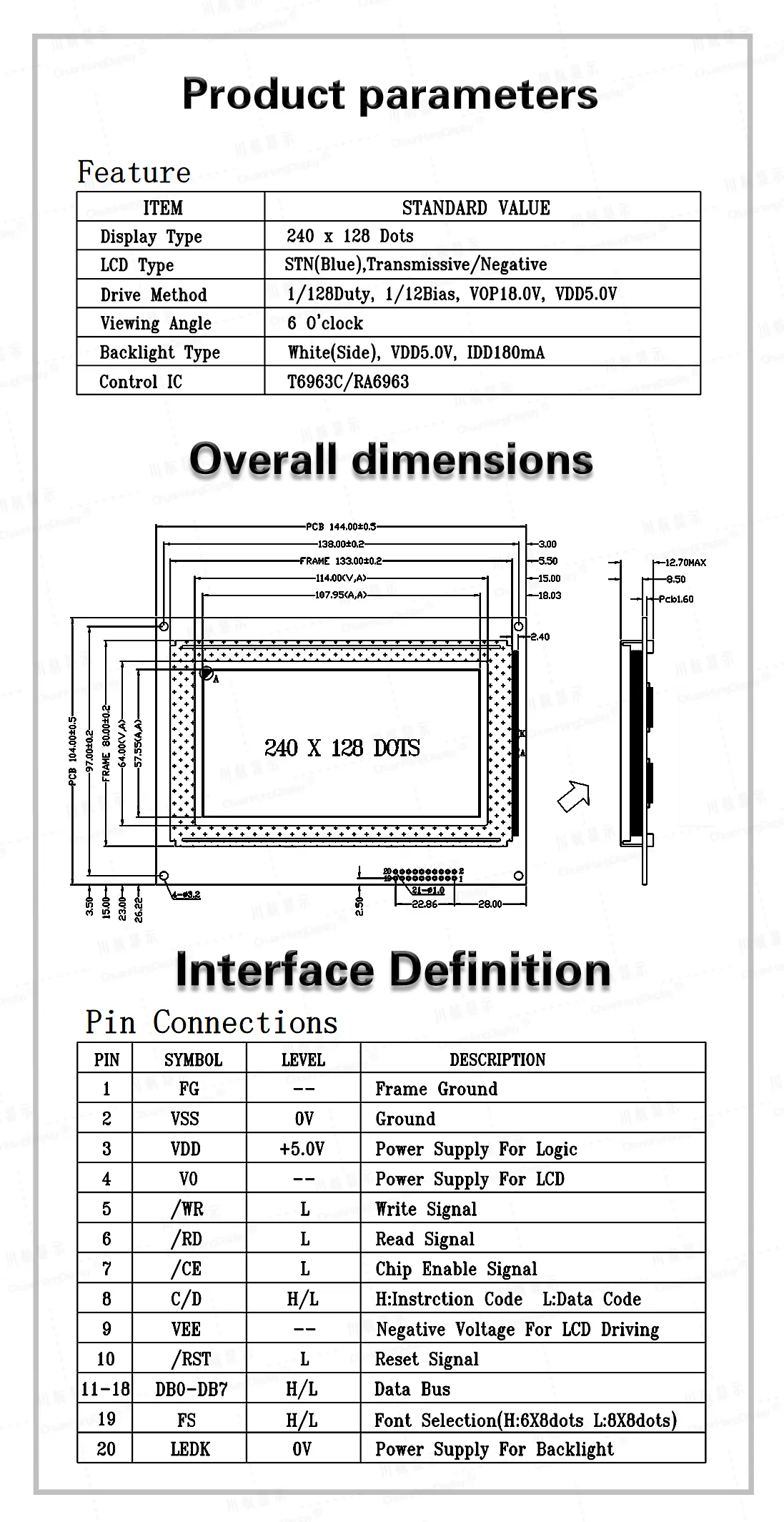

1.5 Product features:
●Built-in display data RAM is 128x240 bits.
●Built-in character library ROM (CGROM): 128 characters
●Graphic mode, text mode, graphic text mixed mode.
●One screen displays 15 characters x 8 lines (16x16 dot matrix).
●Single image ≦240x128 dot matrix
●Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed.
●8-bit parallel port interface, 8080 timing.
1.2 IC uses t6963c/uc6963, chip built-in character library ROM (CGROM), no Chinese character library, programmers compile Chinese character library.
1.3 Low power consumption, 5V/3.3V two power modes, no backlight current within 20mA, backlight current within 180mA.
1.4 LED can be driven by PIN2, PIN3, PIN20.
1.5 Product features:
●Built-in display data RAM is 128x240 bits.
●Built-in character library ROM (CGROM): 128 characters
●Graphic mode, text mode, graphic text mixed mode.
●One screen displays 15 characters x 8 lines (16x16 dot matrix).
●Single image ≦240x128 dot matrix
●Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed.
●8-bit parallel port interface, 8080 timing.
