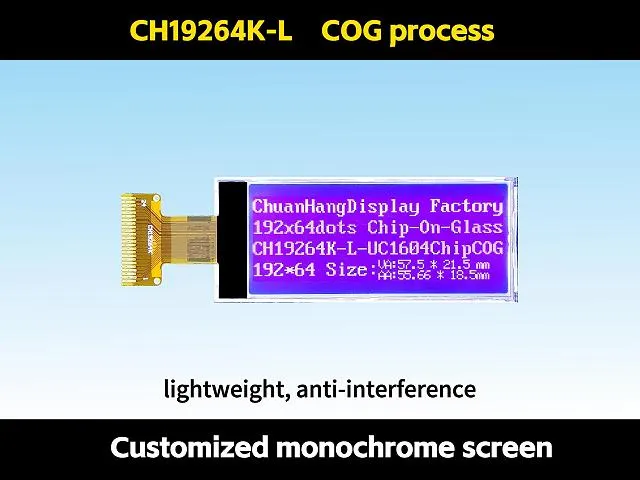

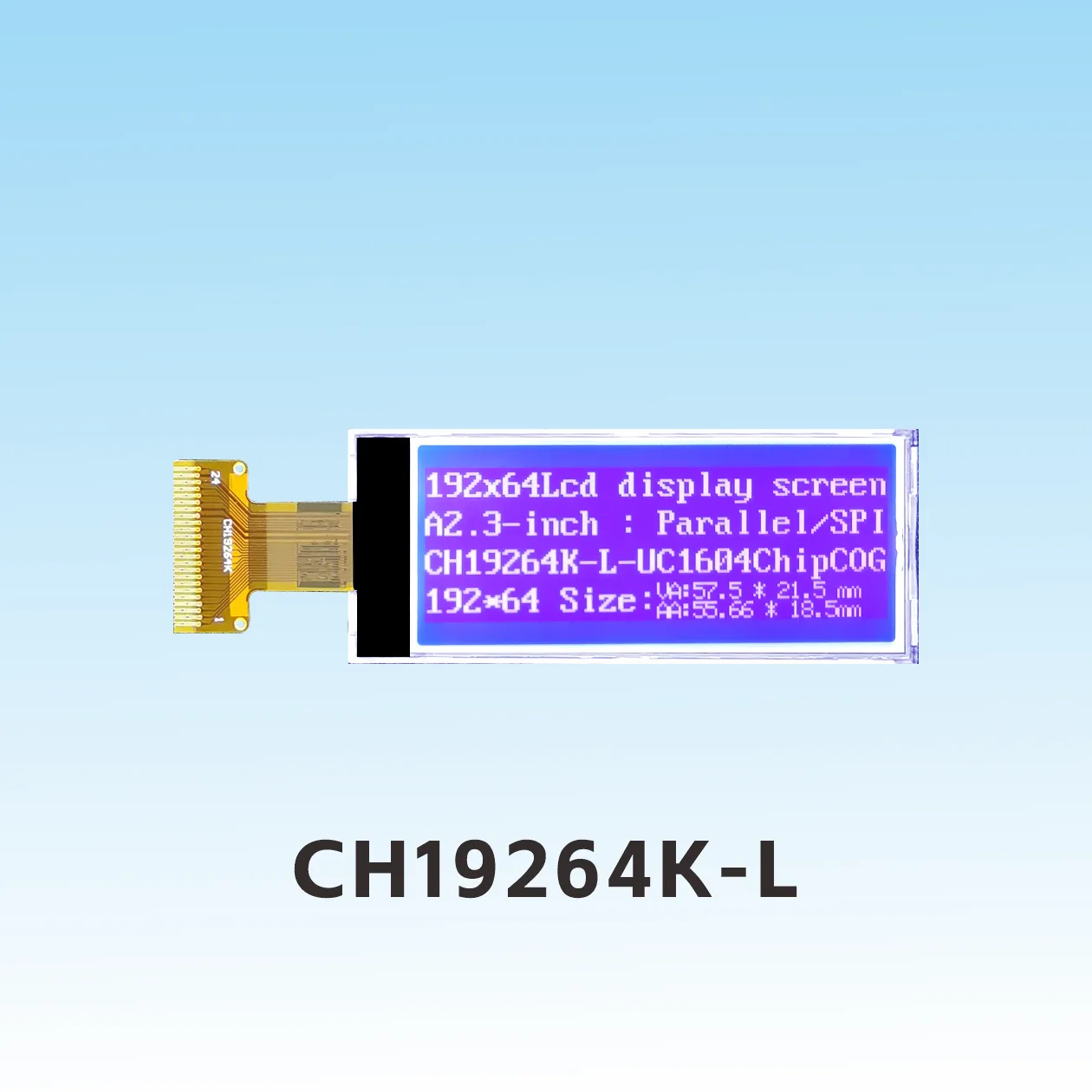

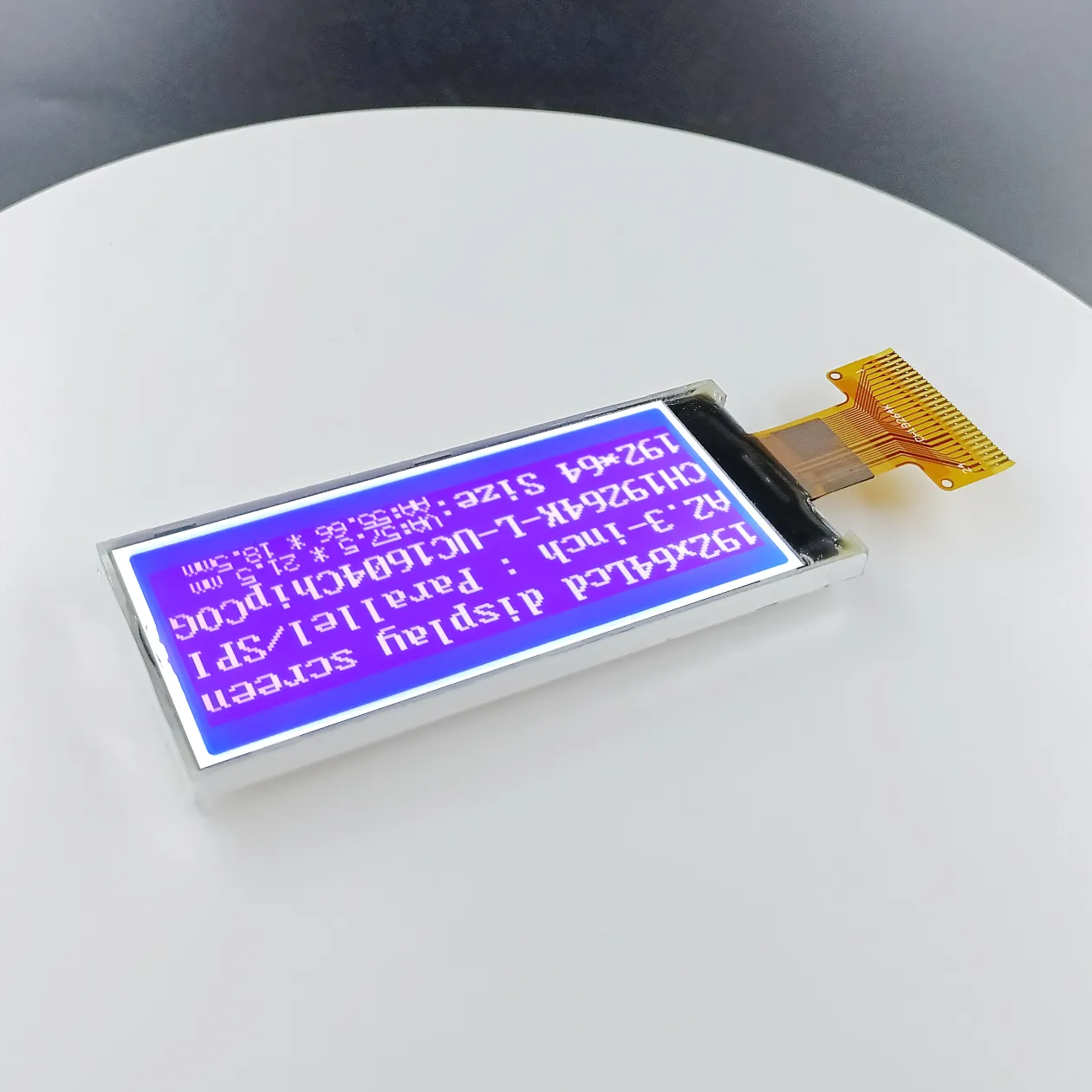

CH19264K-L 192x64 LCD Graphic
Product Description

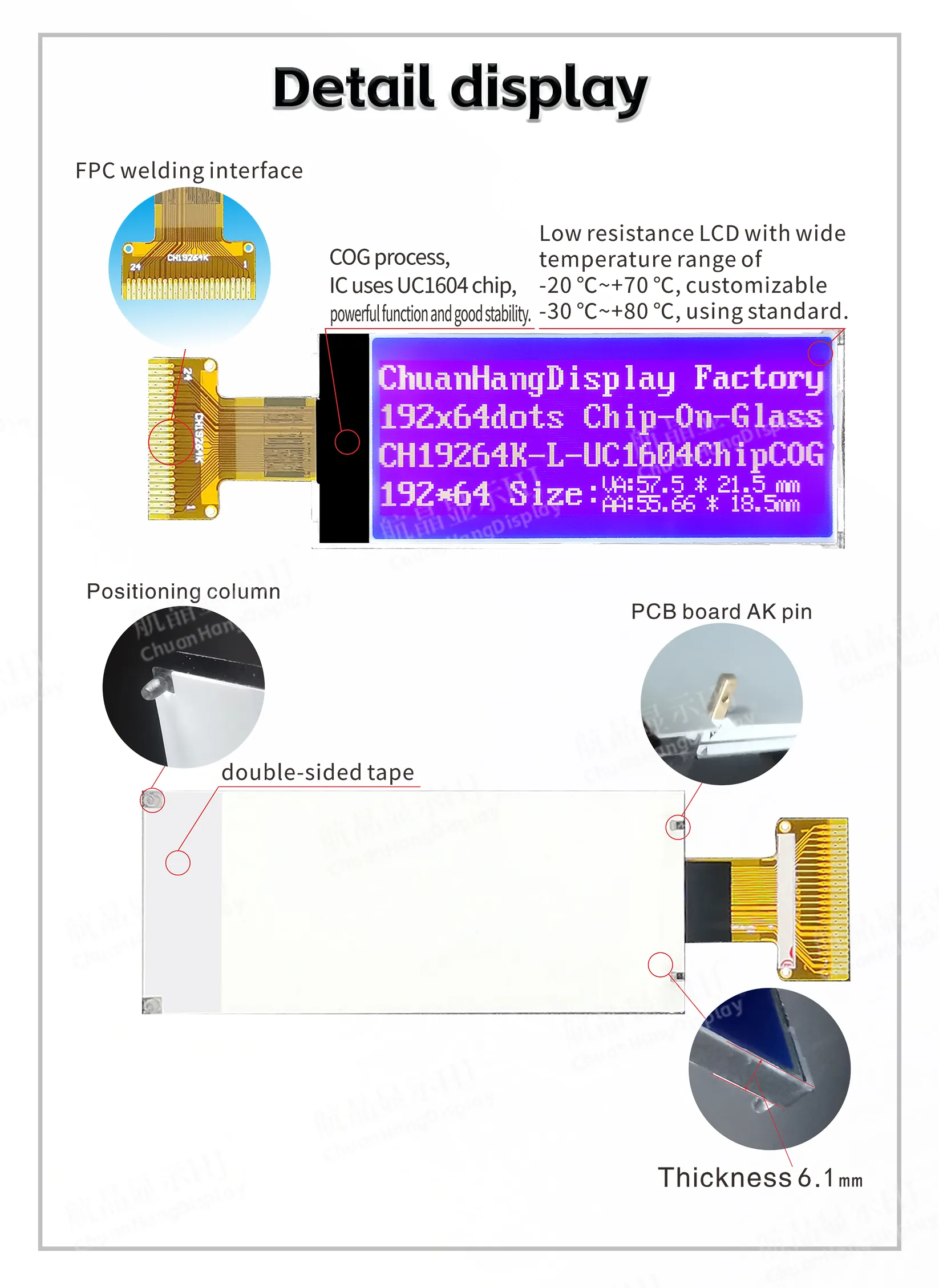

1.1 C0G process, FPC welding, product with backlight, thin thickness, stable structure.
1.2 IC uses uc1604, there is no font library in the chip, programmers compile fonts by themselves.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 1mA, backlight current within 70mA.

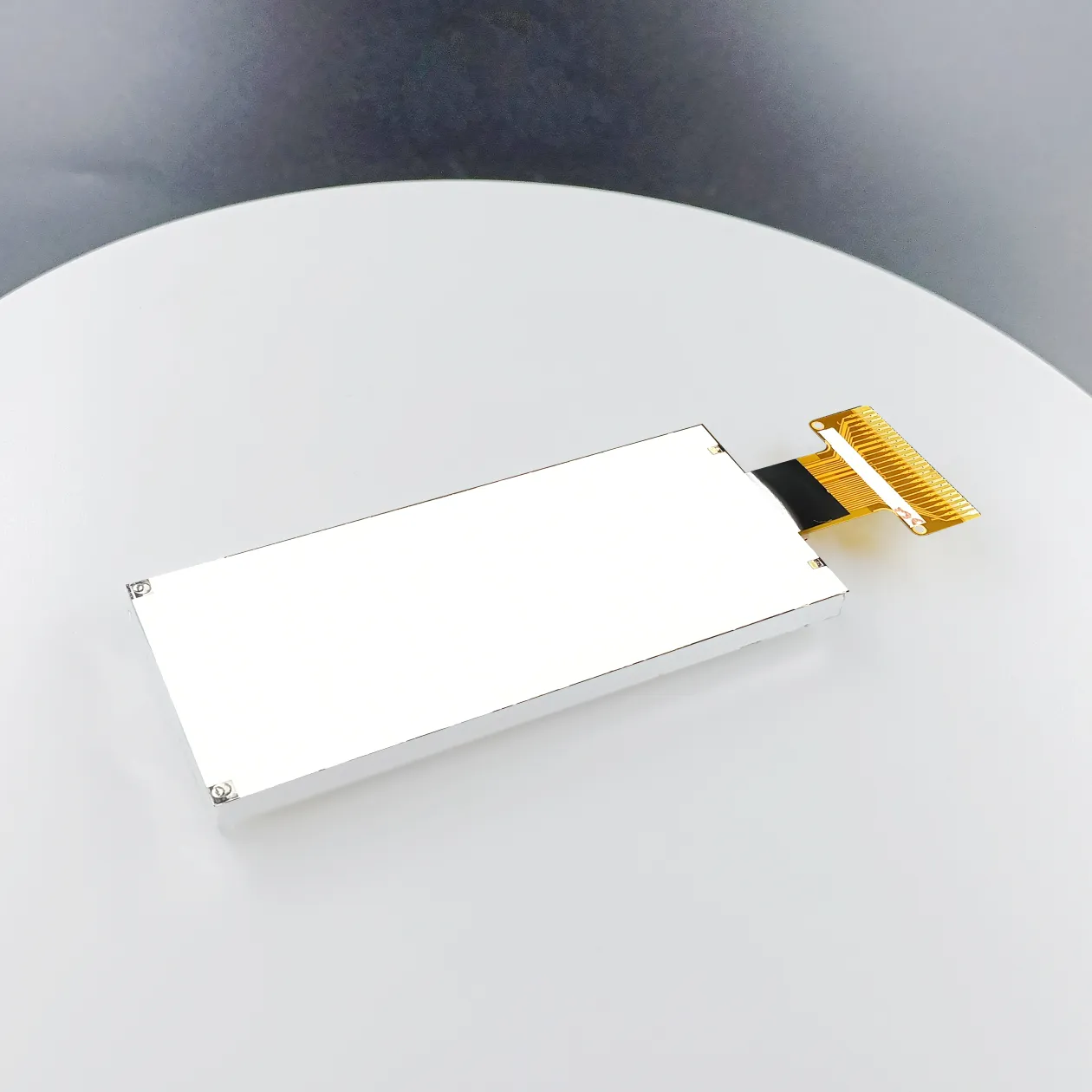

1.4 LED backlight A and K are soldered on the PCB board, stable structure.
1.5 Product features:
●Built-in display data RAM is 64x192 bits
●The boost circuit only needs 3 1uf capacitors
●The contrast is adjusted by software.
●One screen displays 12 characters x 4 lines (16x16 dot matrix).
●Single picture ≦192x64 dot matrix.
●Optional 4-wire SPI interface/8-bit parallel port 6800 timing/8080 timing
●Rich functions:
Interface display on/off, positive display/reverse display, read/modify/write,
