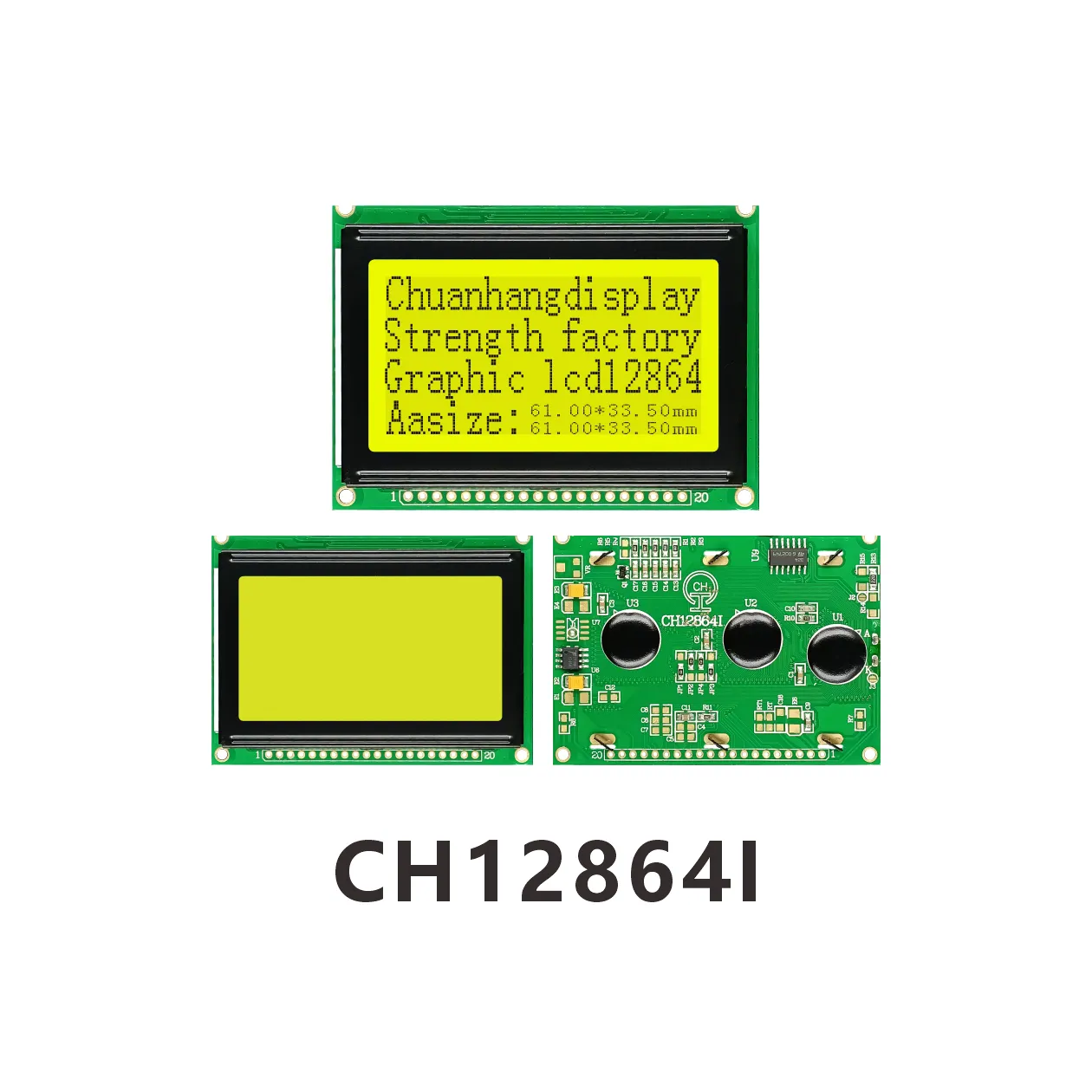

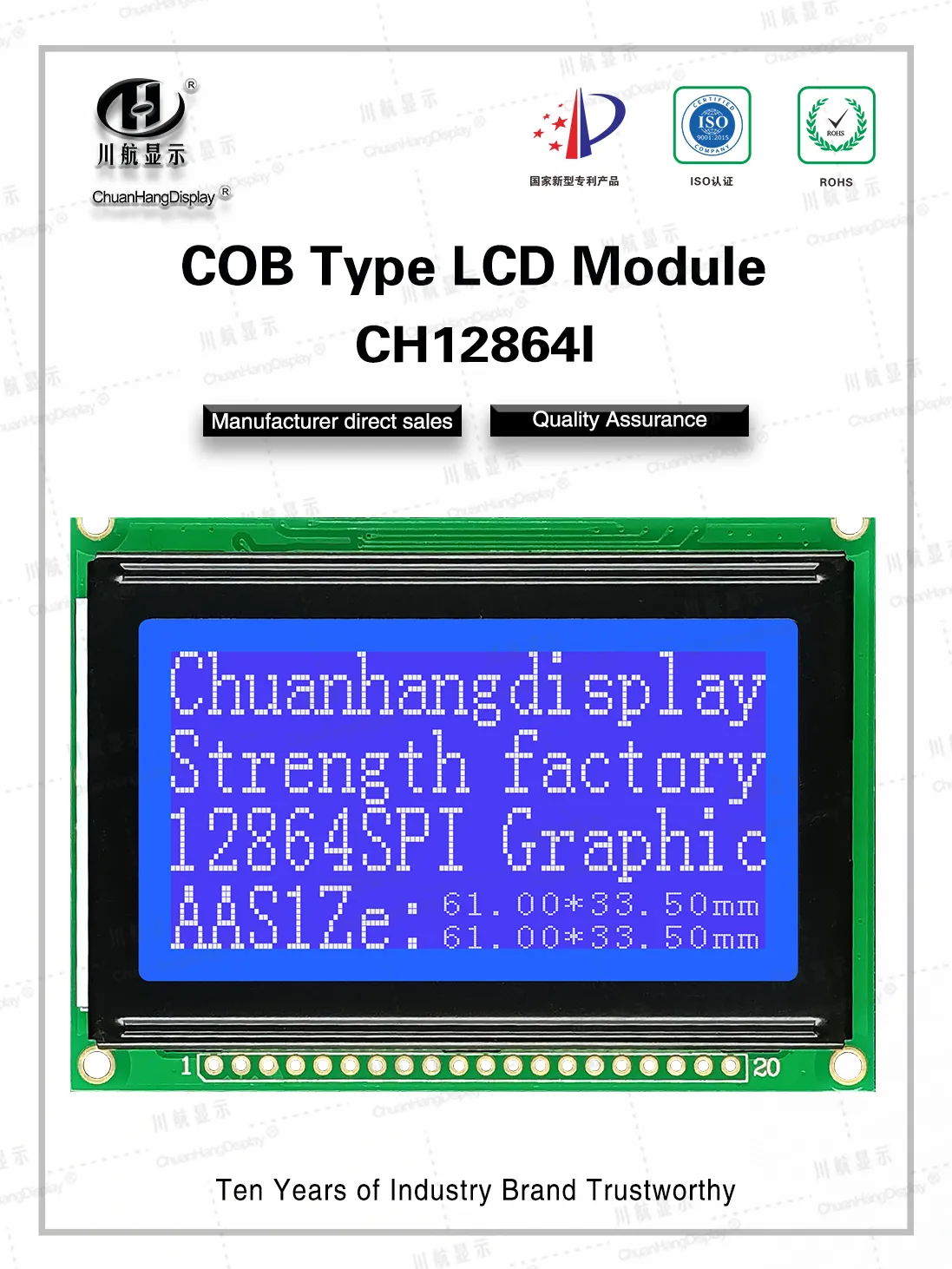

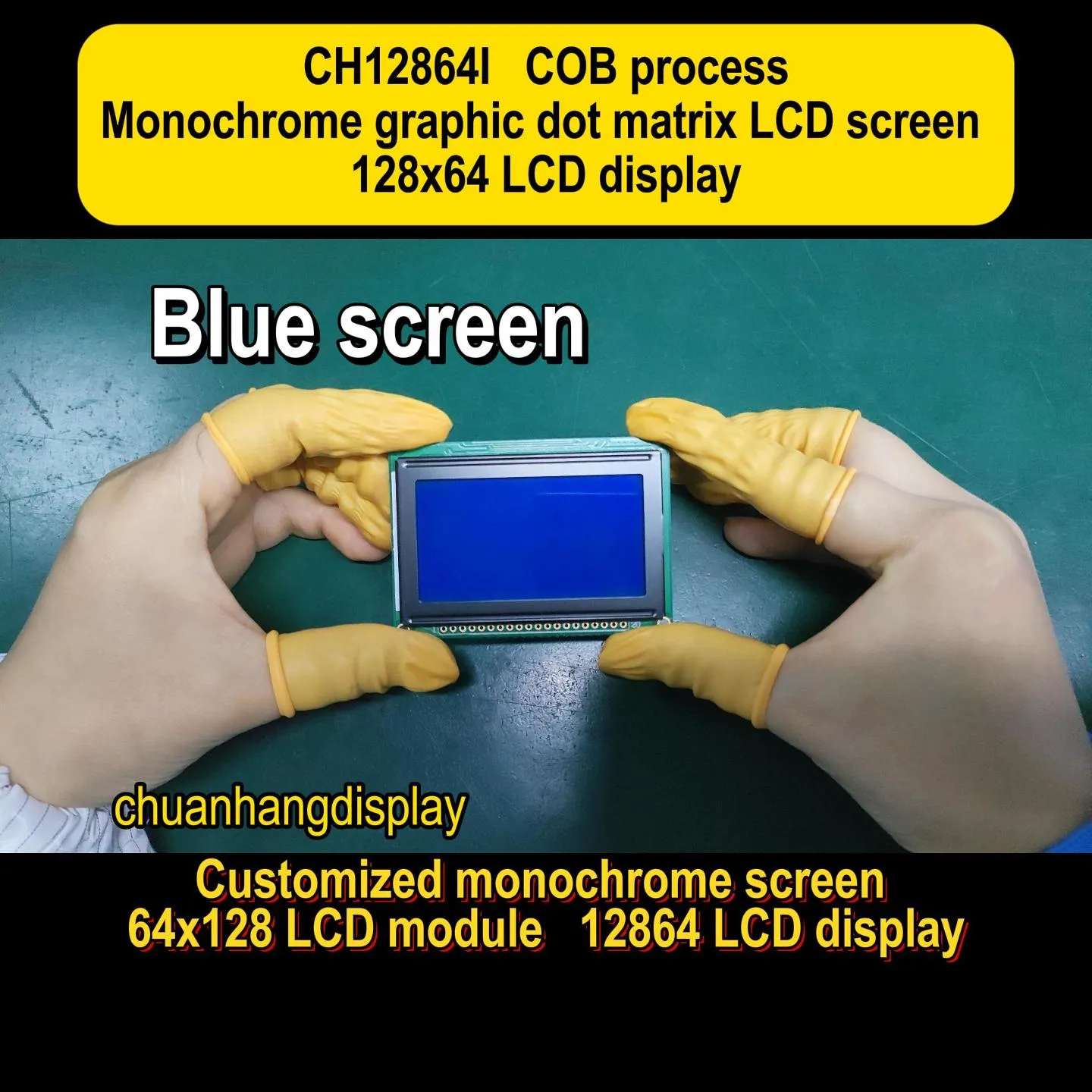

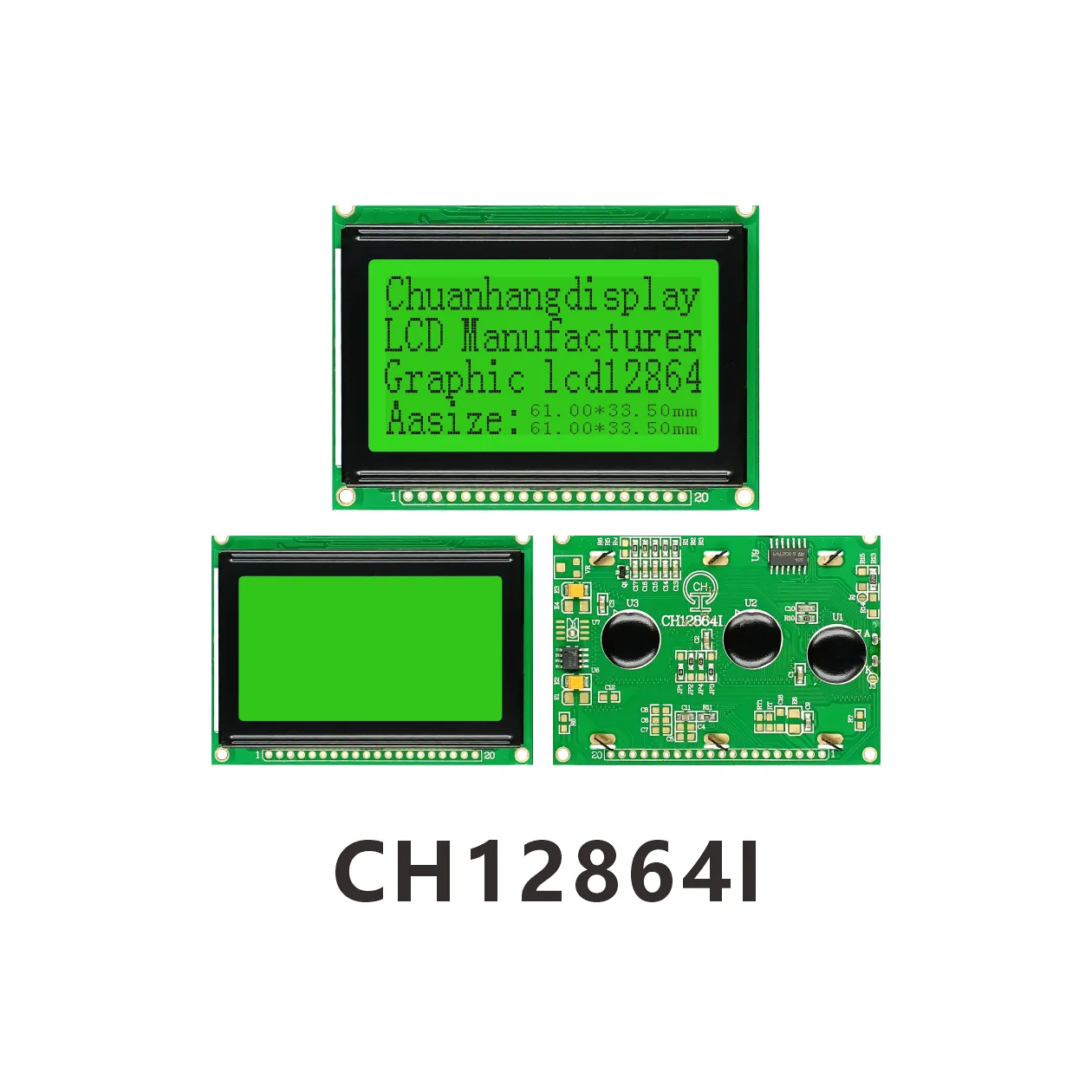

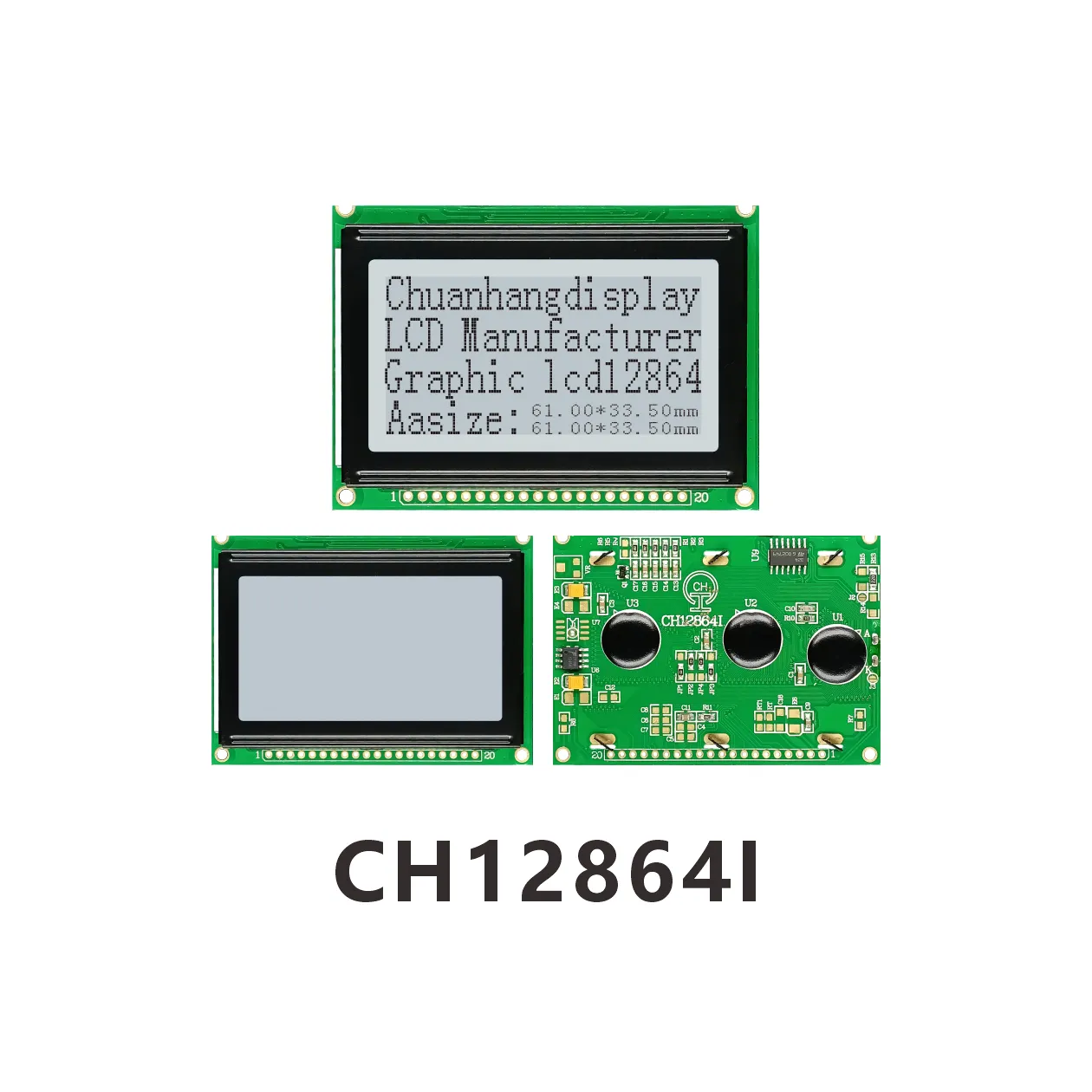

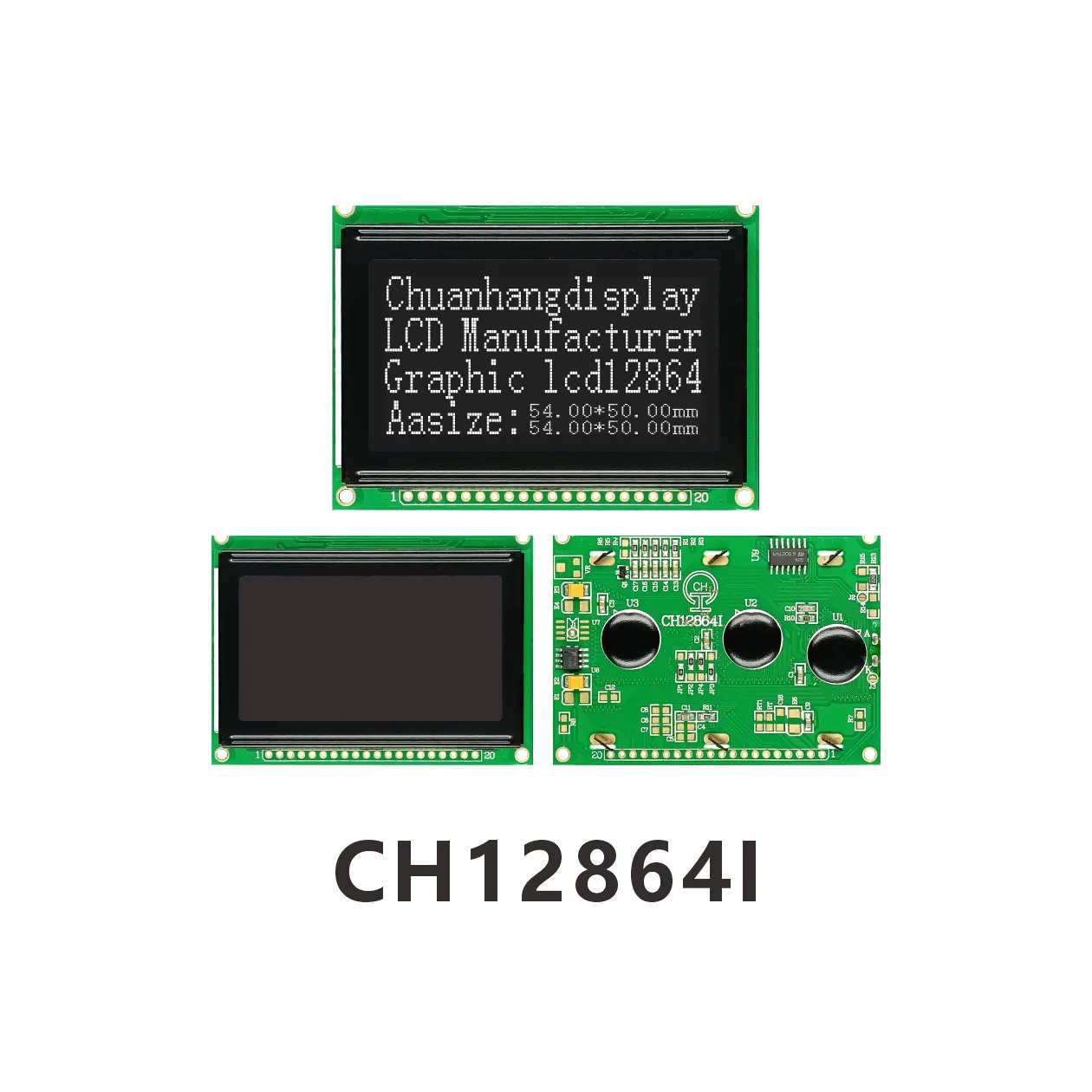

CH12864I COB LCD Display Module
Product Description

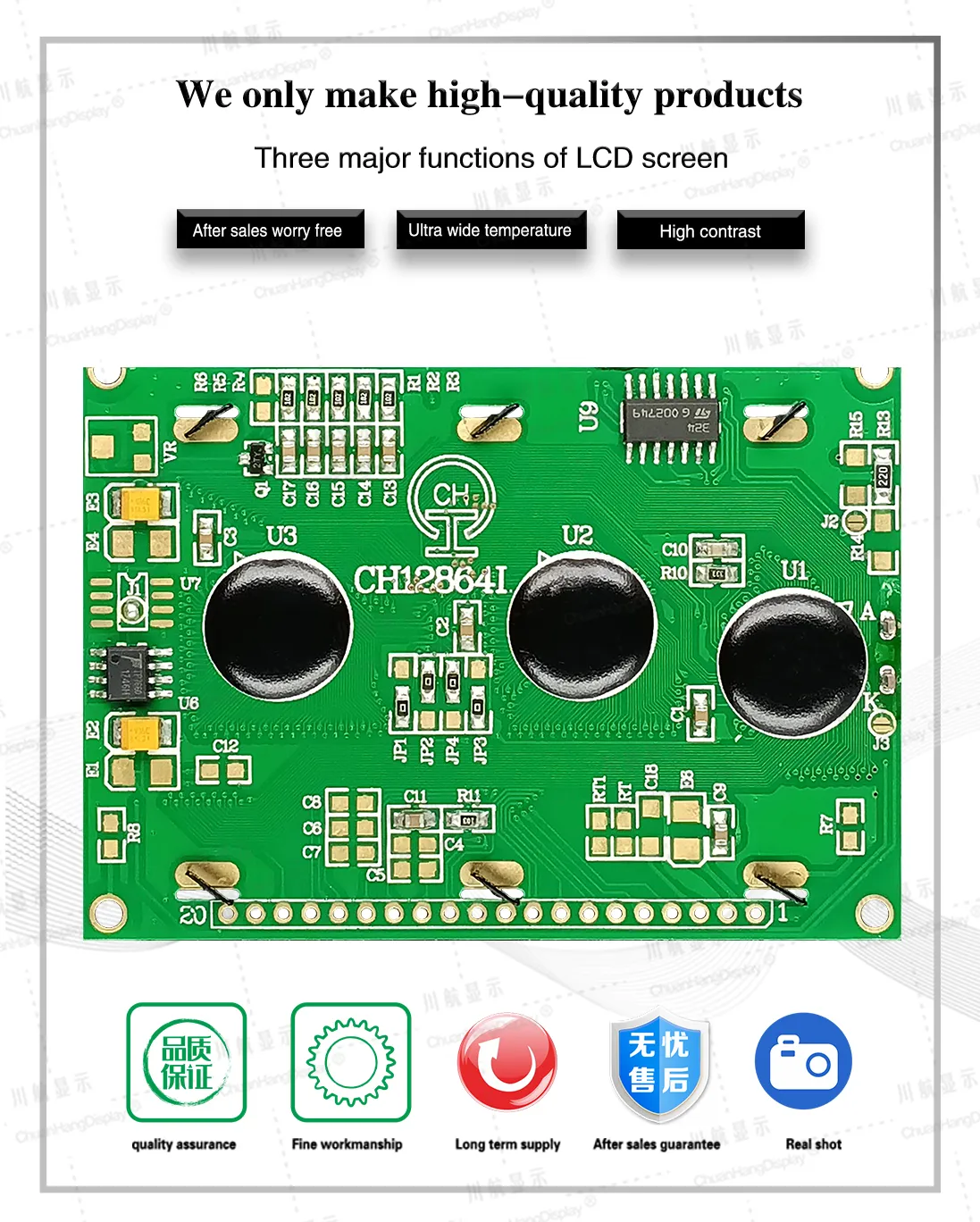

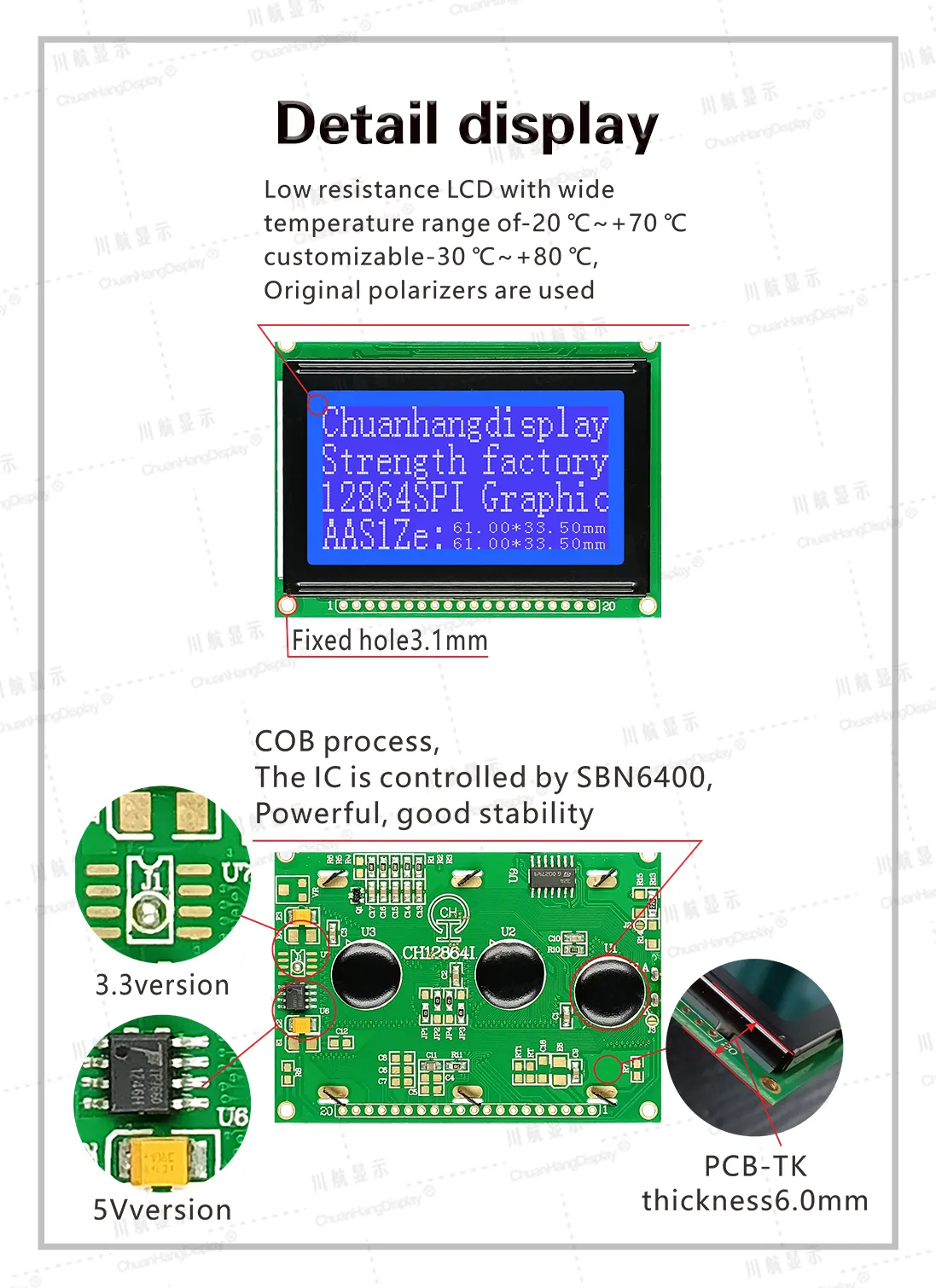

1.1 C0B process, product with backlight, conductive tape connection, stable structure
1.2 IC uses SBN6400/AIP31108, there is no font library in the chip, programmers compile font library by themselves.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, no backlight current within 8mA, backlight current within 100mA.

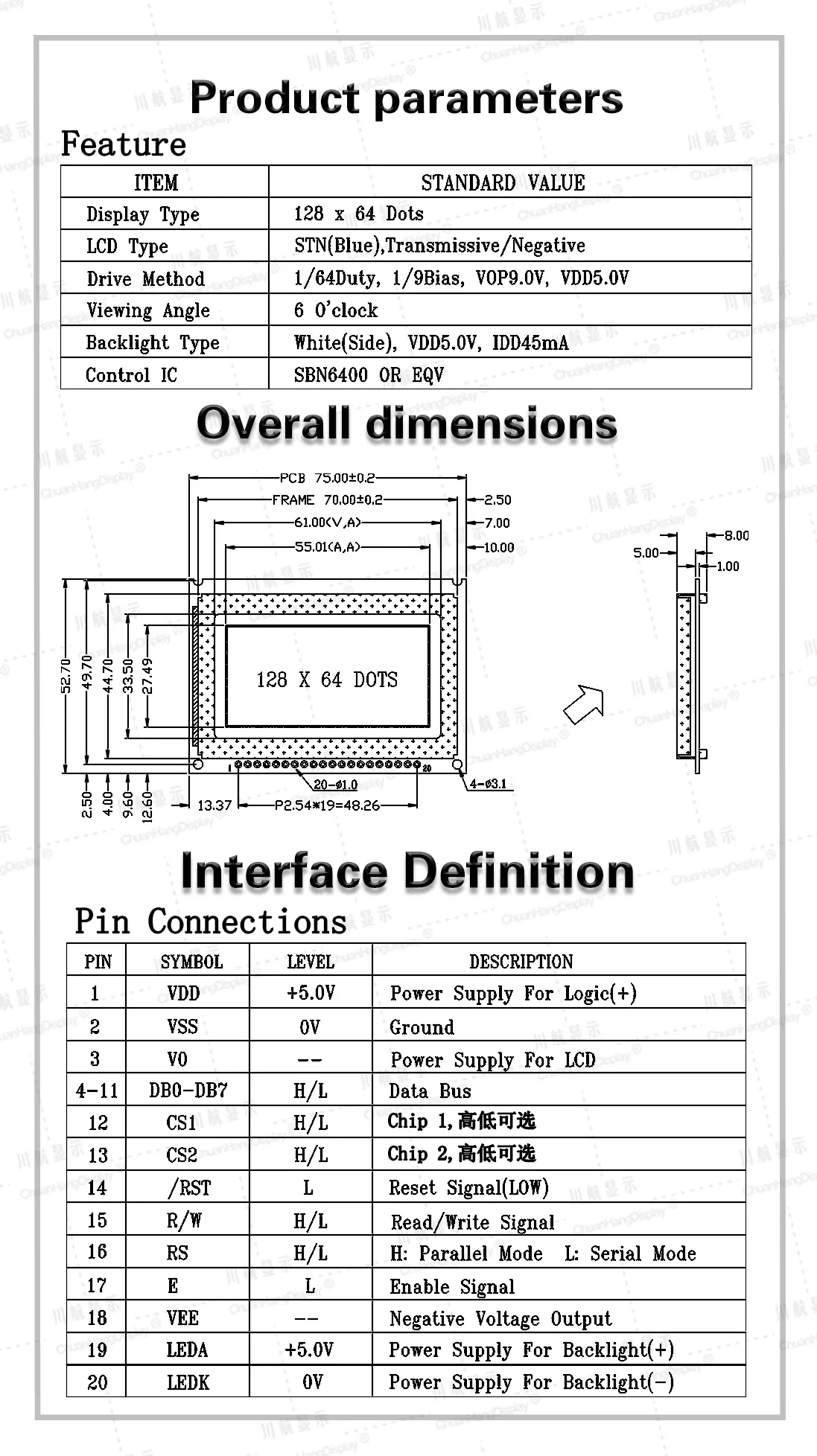

1.4 LED can be driven by PIN1, PIN2, PIN19, PIN20.
1.5 Product features:
●Built-in display data RAM is 2560 bits:
●One screen displays 8 characters x 4 lines (16x16 dot matrix).
●Single picture ≦128x64 dot matrix.
●The module has built-in 2PCS chip select chip.
●Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed.
●The module has built-in CS1, CS2 high and low level jump point selection,
