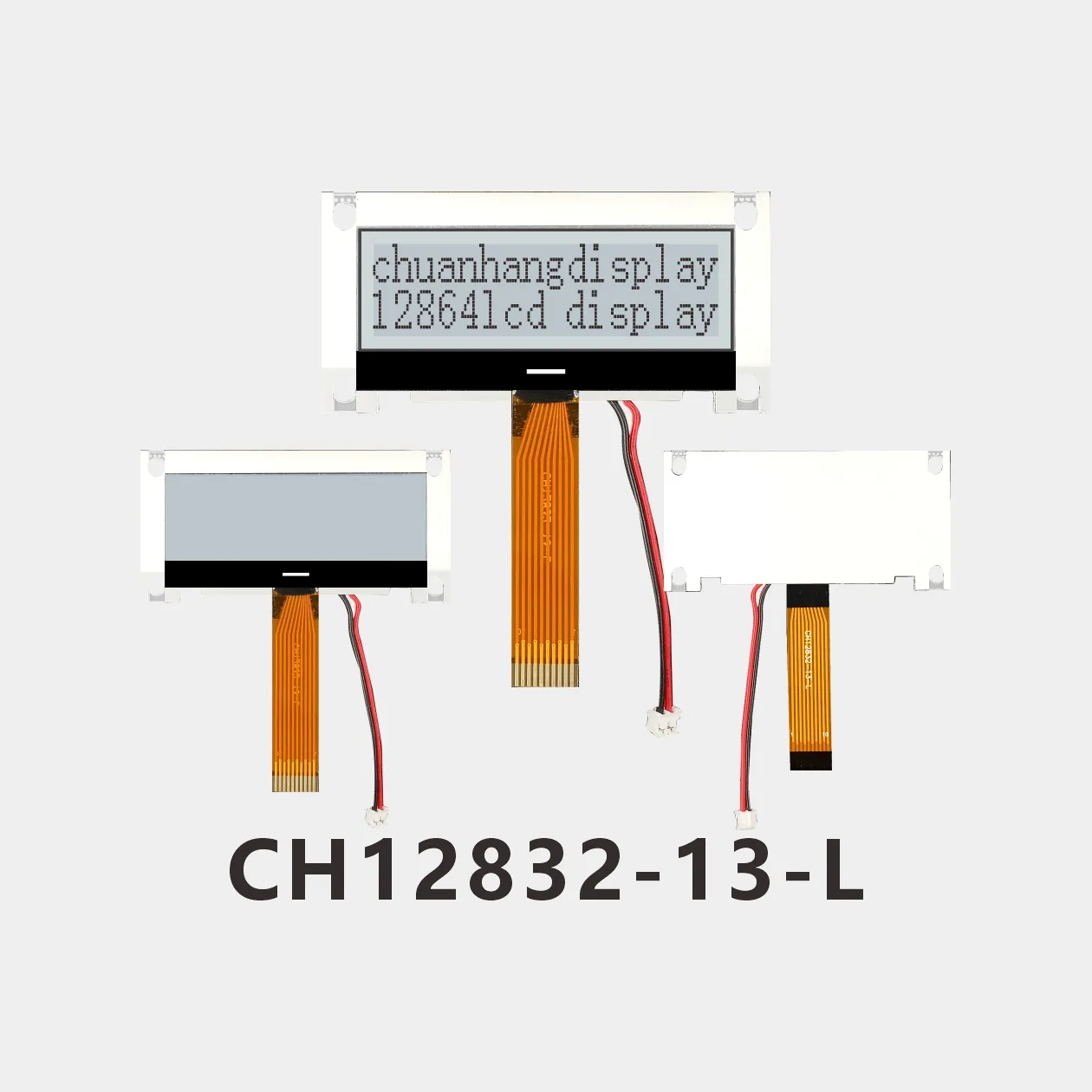

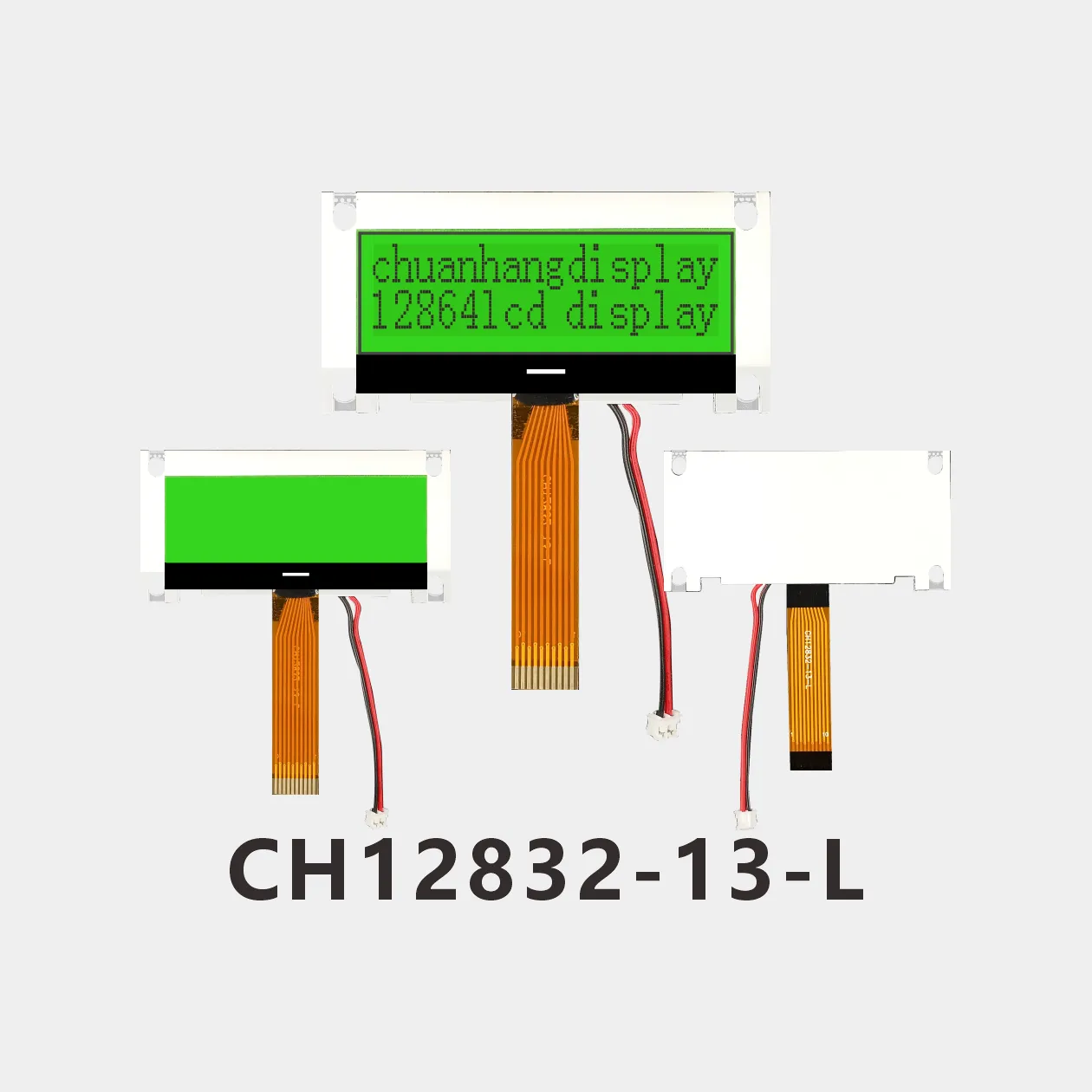

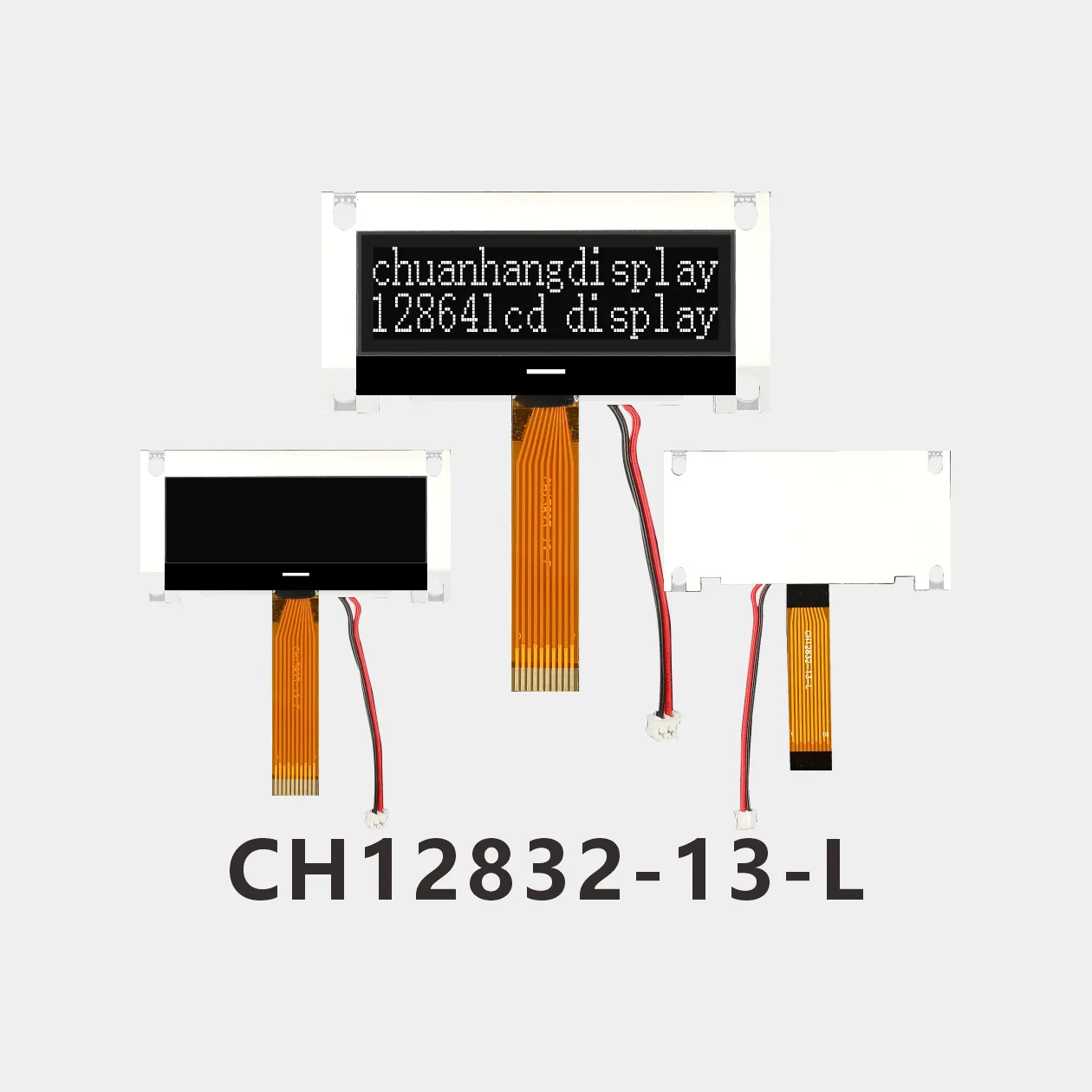

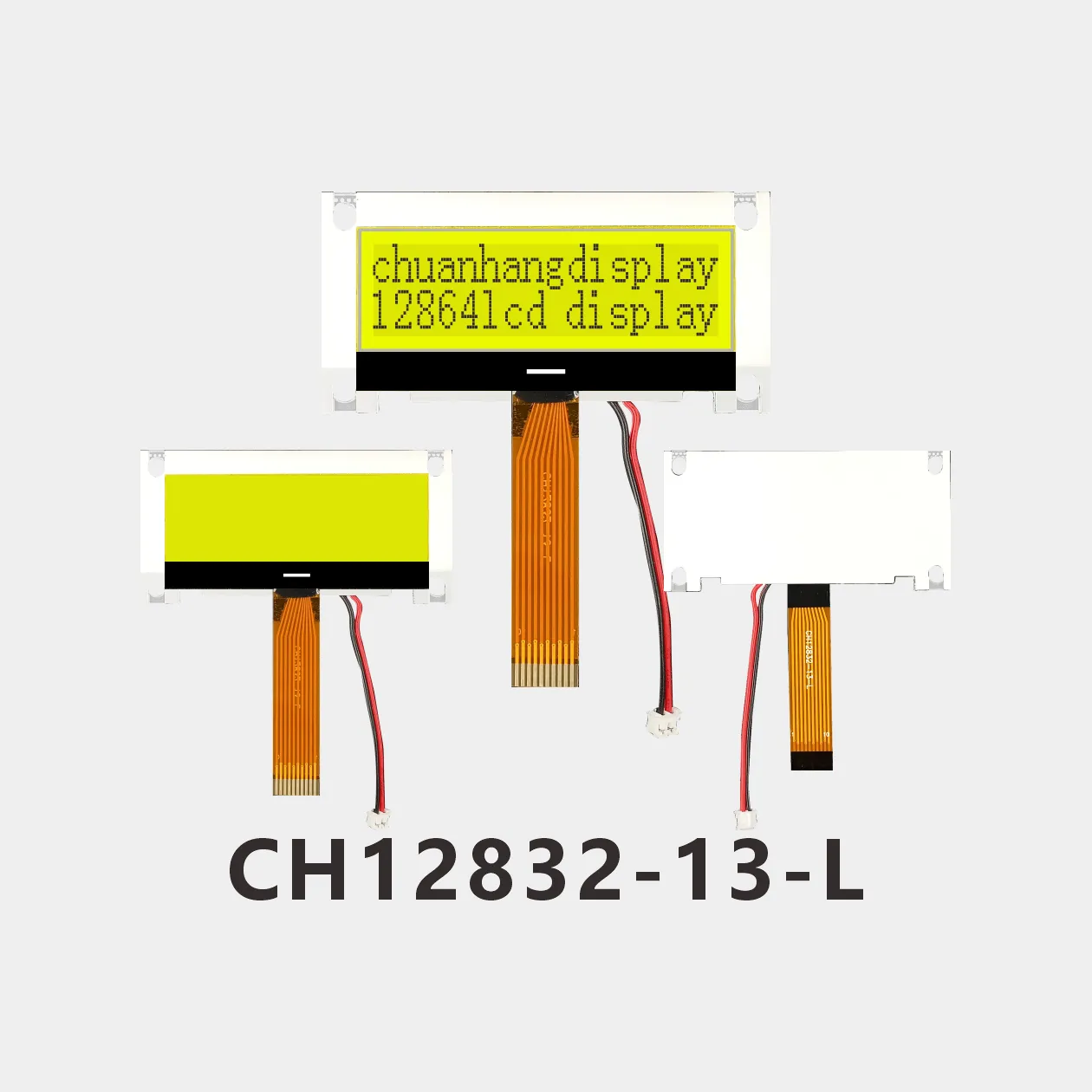

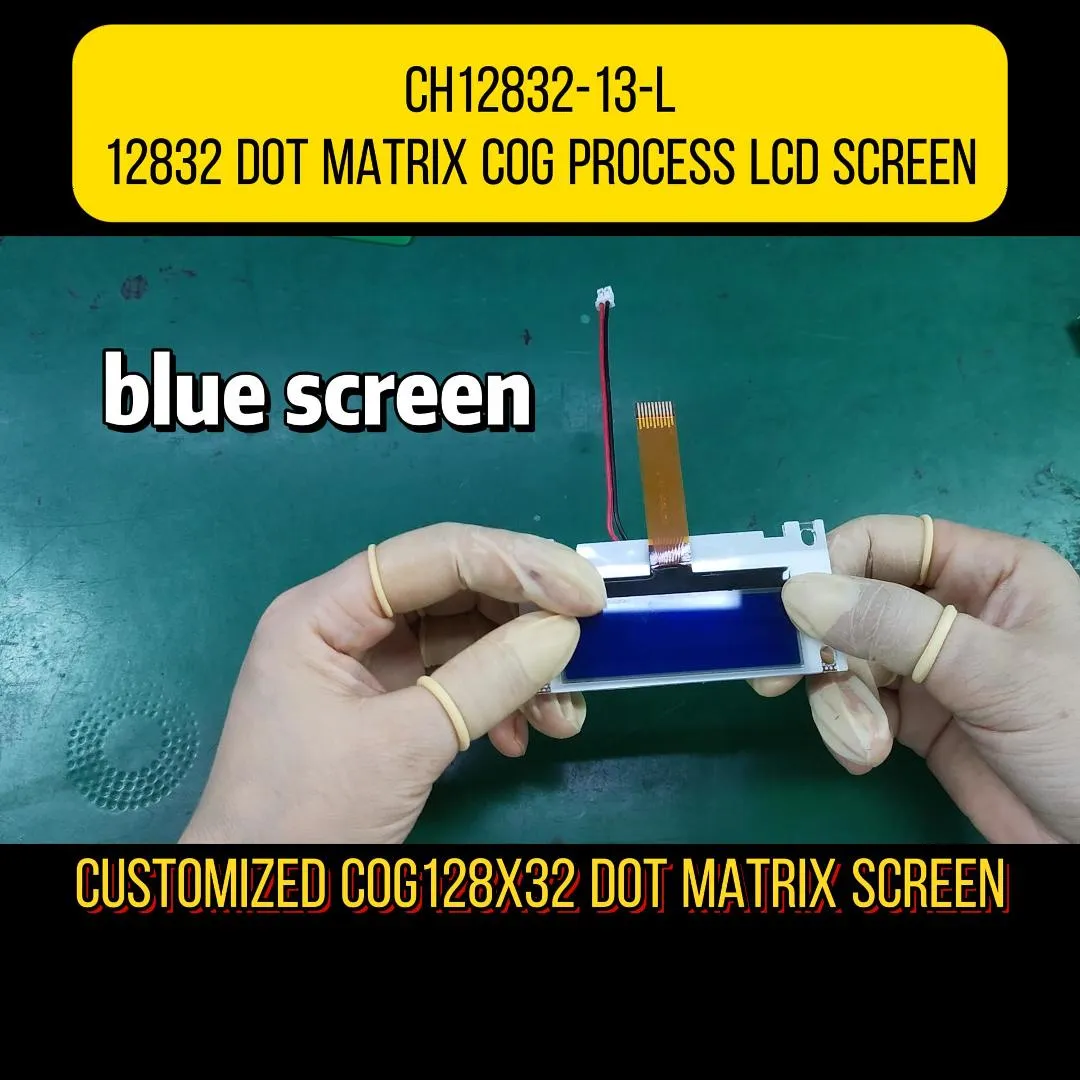

CH12832-13-L 128x 32 dots cog lcd display
Product Description

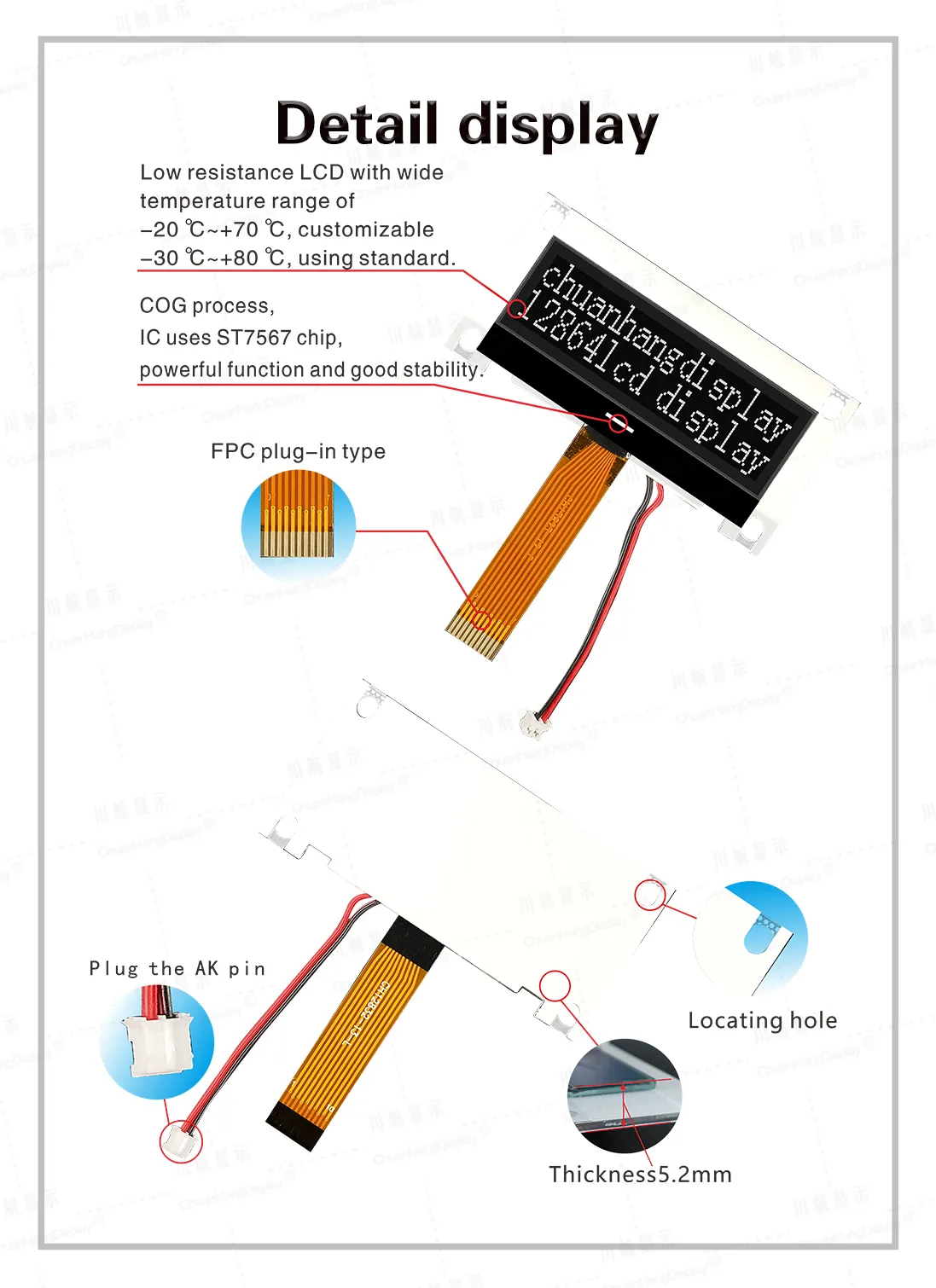

1.1 C0G process, FPC plug-in process, product with backlight, thin thickness, stable structure. 1.21C uses st7567, there is no font library in the chip, programmers compile fonts by themselves. 1.3 Low power consumption, only 3.3V power mode, no backlight current within 1mA, backlight current within 100mA.
1.4 LED backlight A and K are powered by the red line separately.
1.5 Product features:
●Built-in display data RAM is 8192 bits
●The boost circuit only needs 2 1uf capacitors.
●The contrast is adjusted by software.
●One screen displays 8 characters x 2 lines (16x16 dot matrix)
●A single picture ≦128x32 dot matrix.

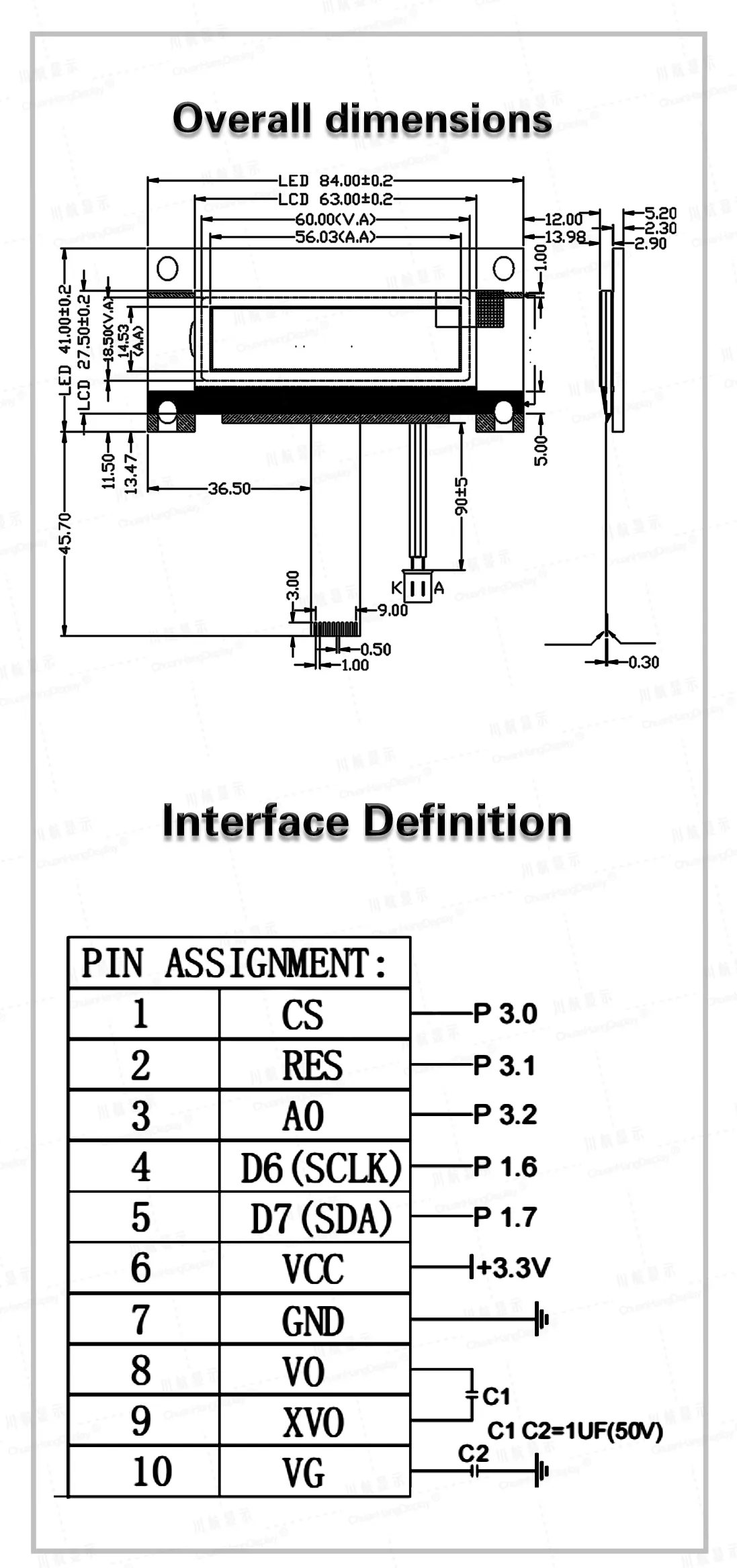

●4-wire SPI interface.
●Rich functions:
Interface display on/off, positive display/reverse display, read/modify/write
