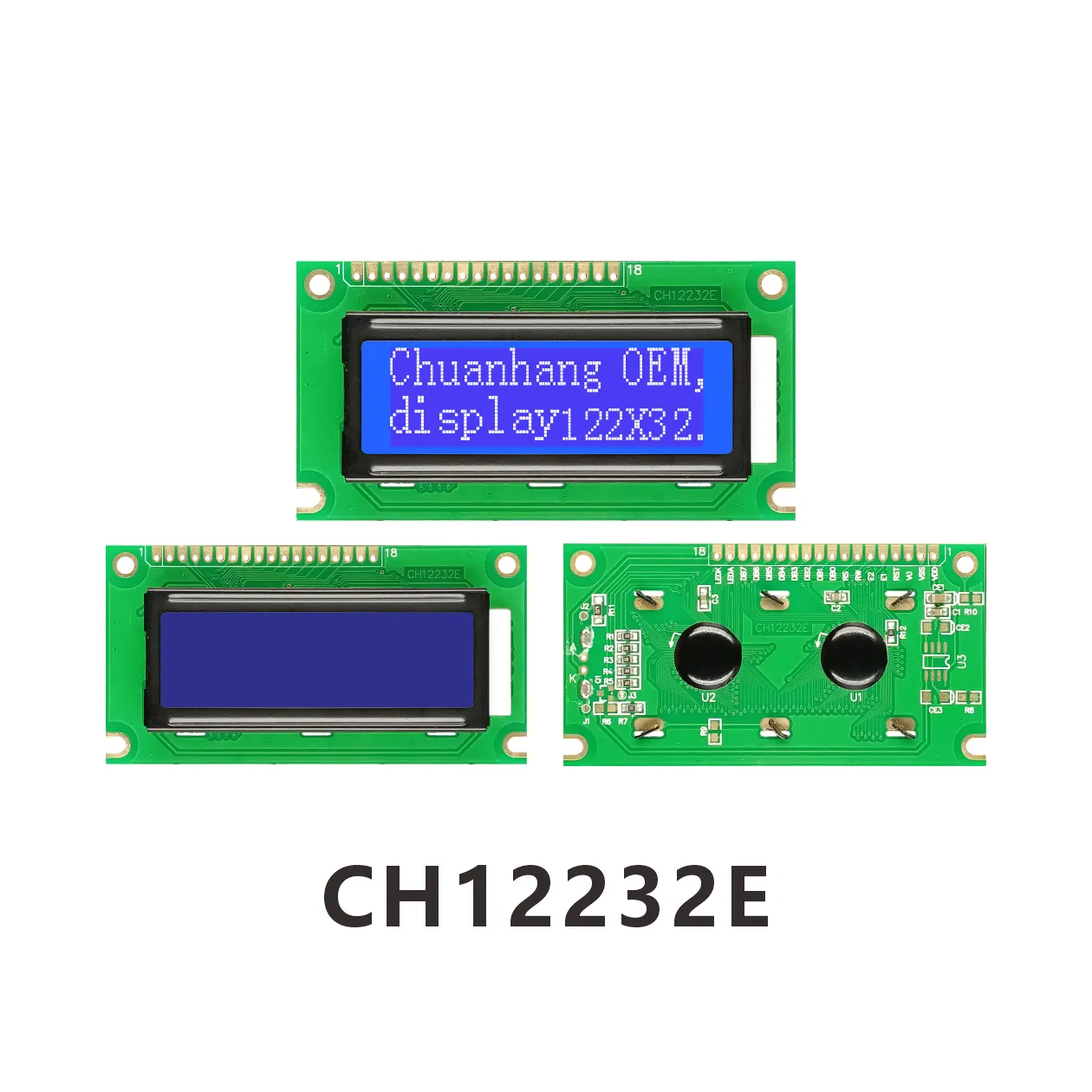

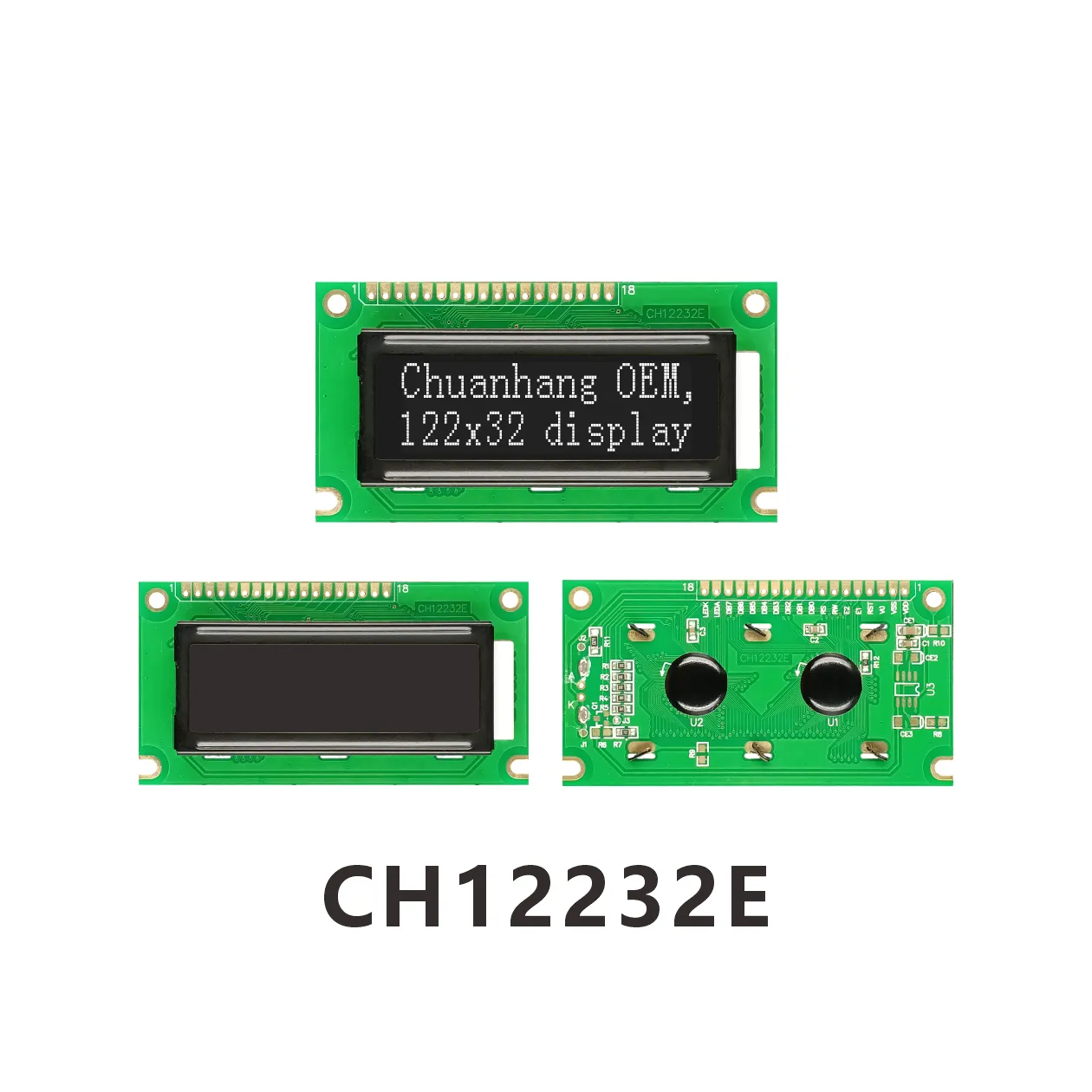

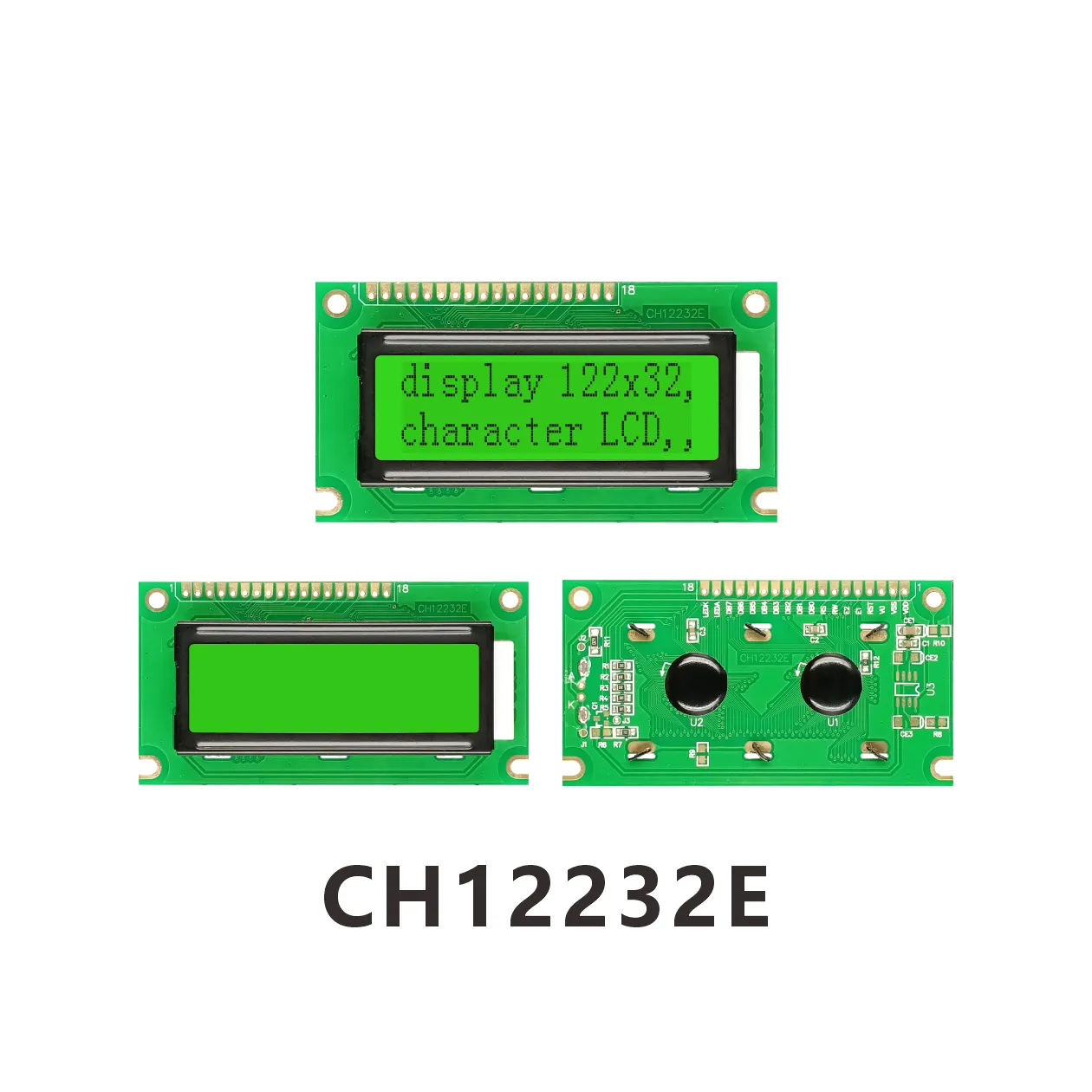

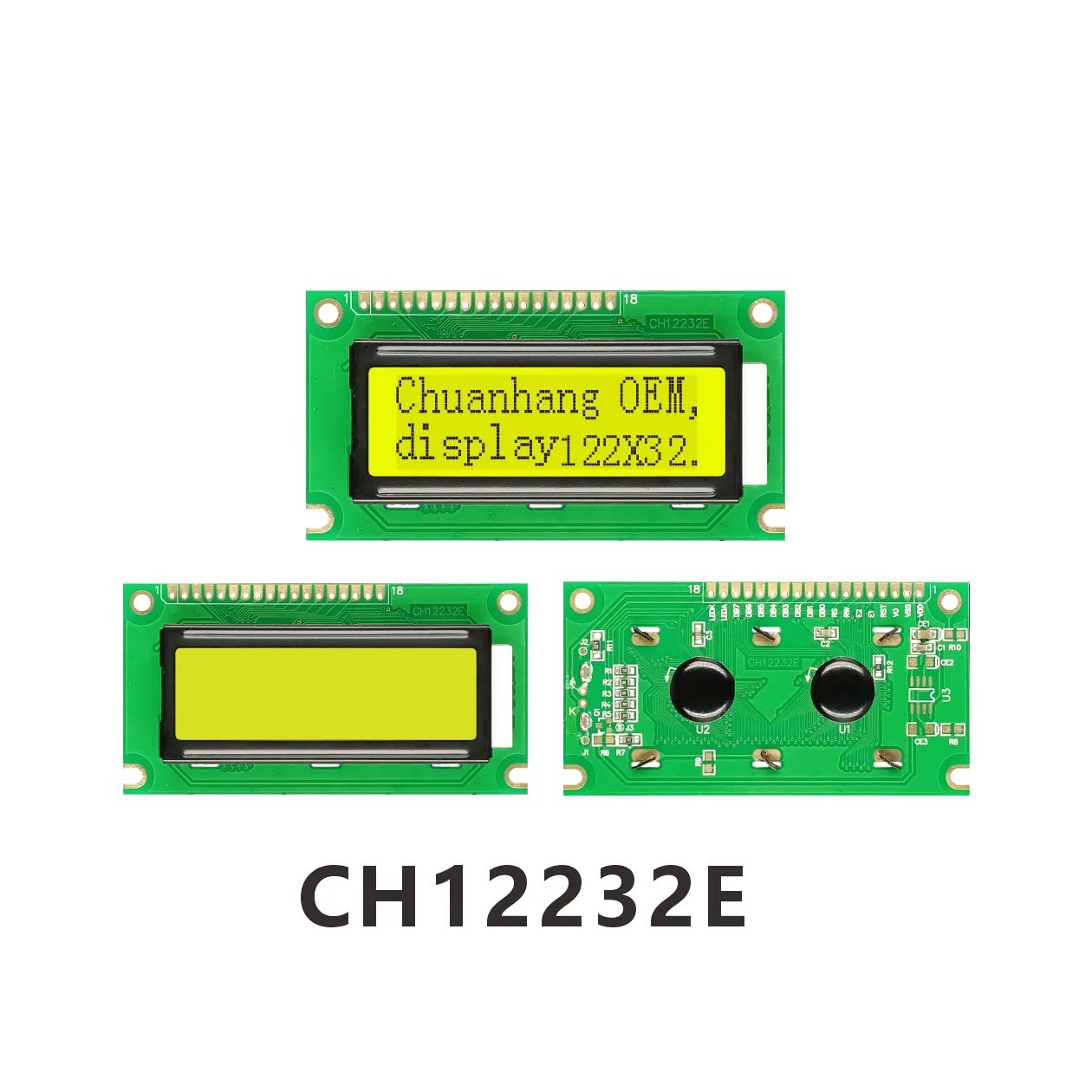

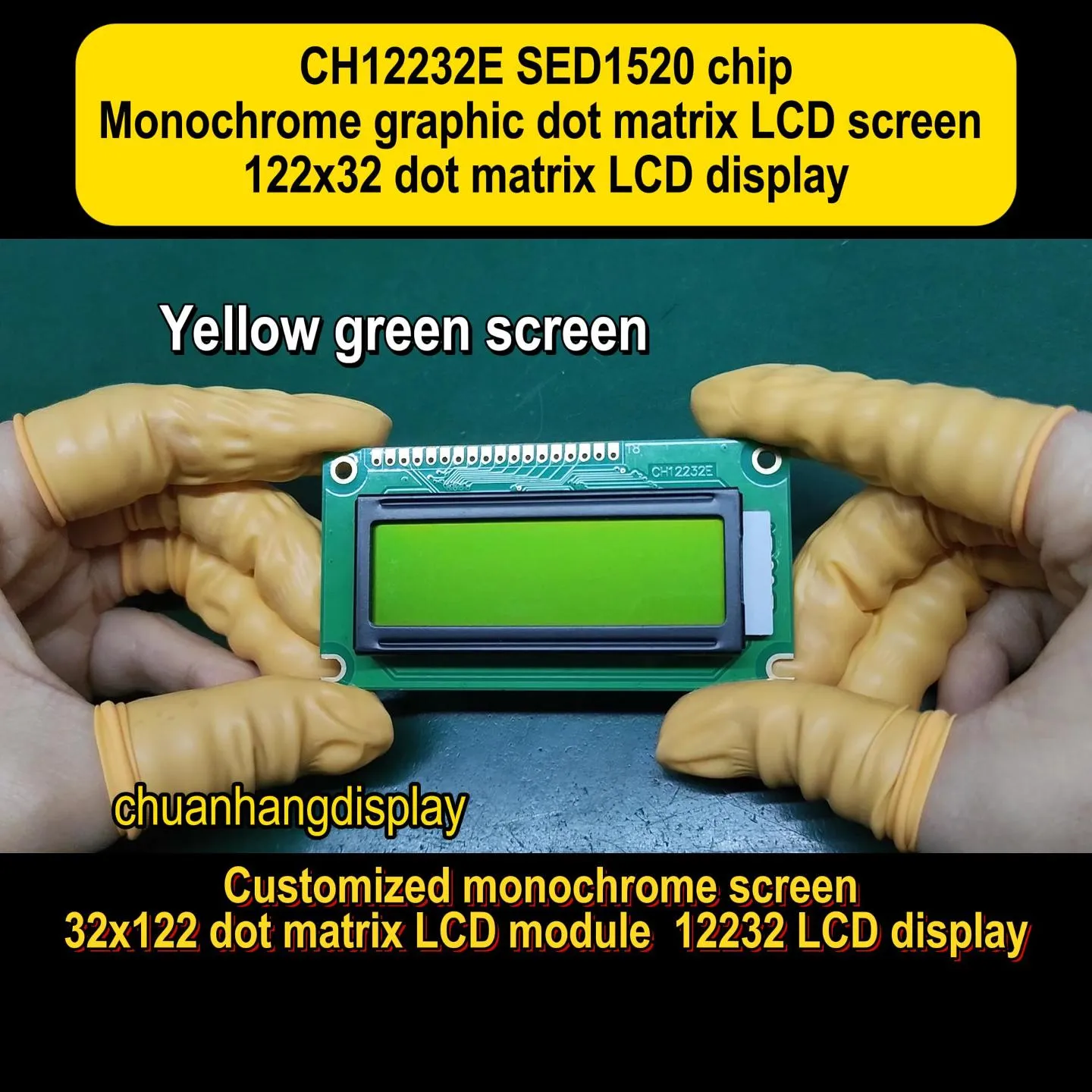

CH12232E Graphic LCD Display Module
Product Description

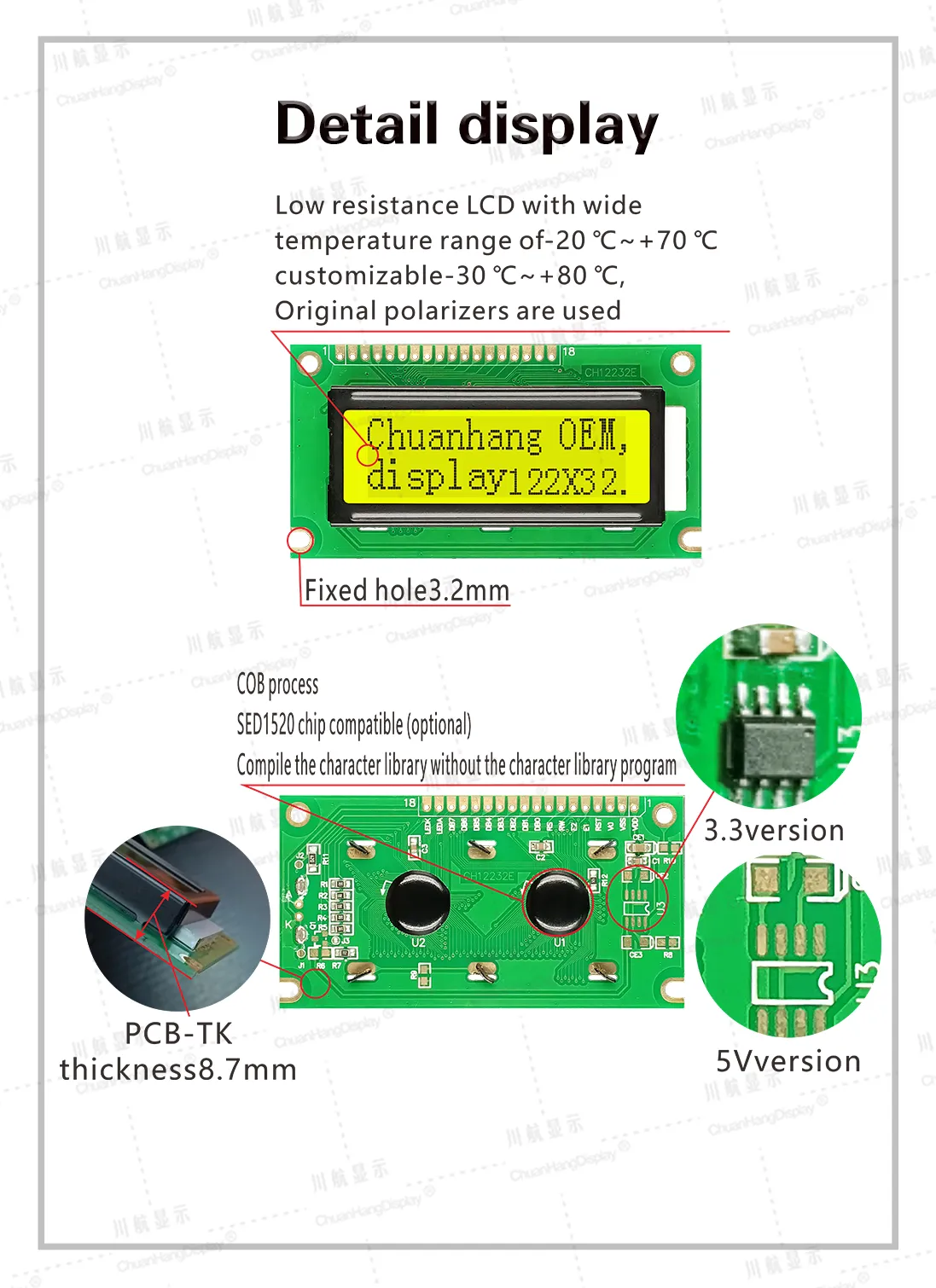

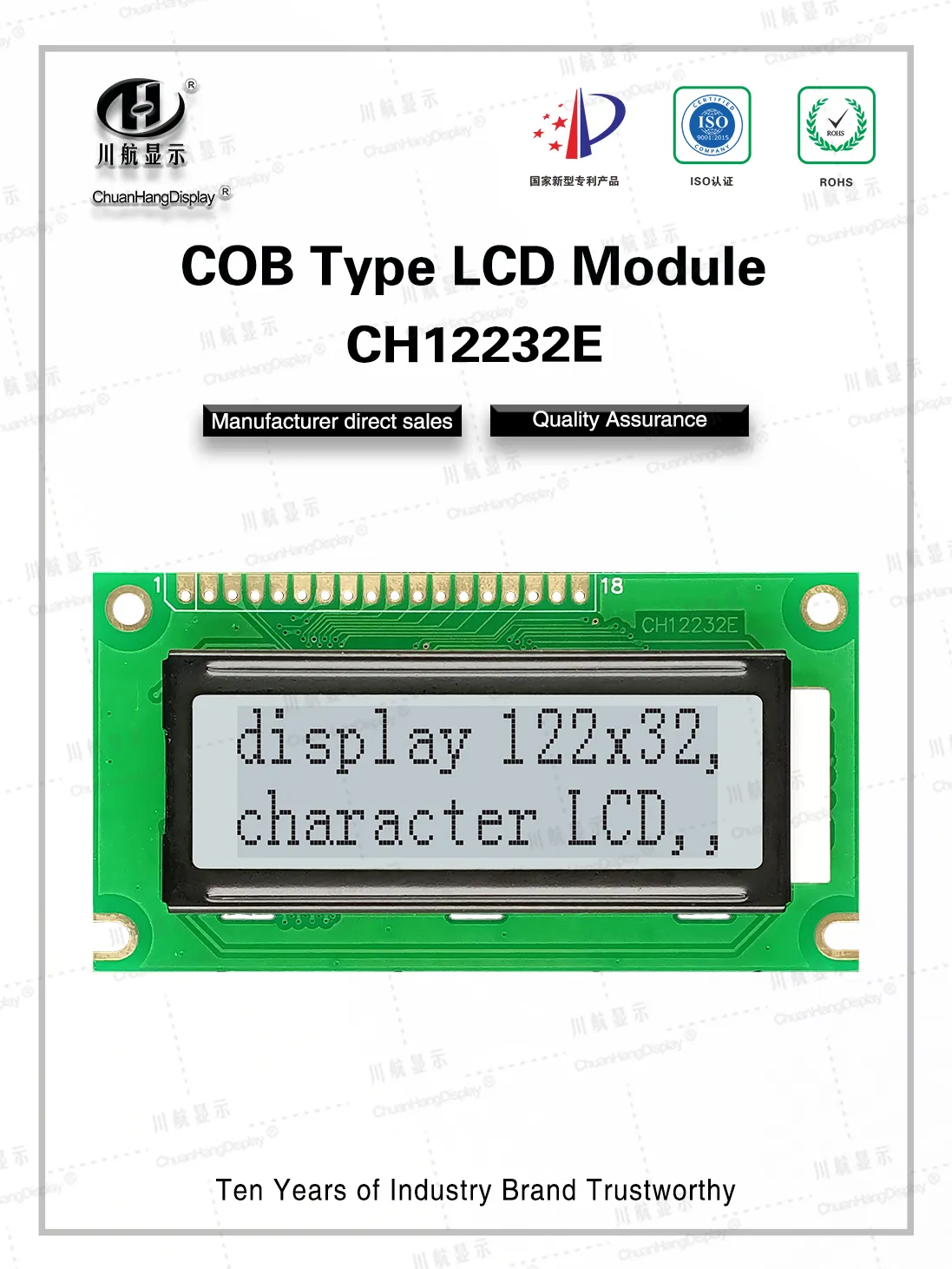

1.1 C0B process, product with backlight, conductive tape connection, stable structure,
1.2 IC uses SBN6400/AIP31520, no font library in the chip, programmers compile font library
1.3 Low power consumption, 5V/3.3V two power modes, no backlight current within 3mA, backlight current within 40mA.

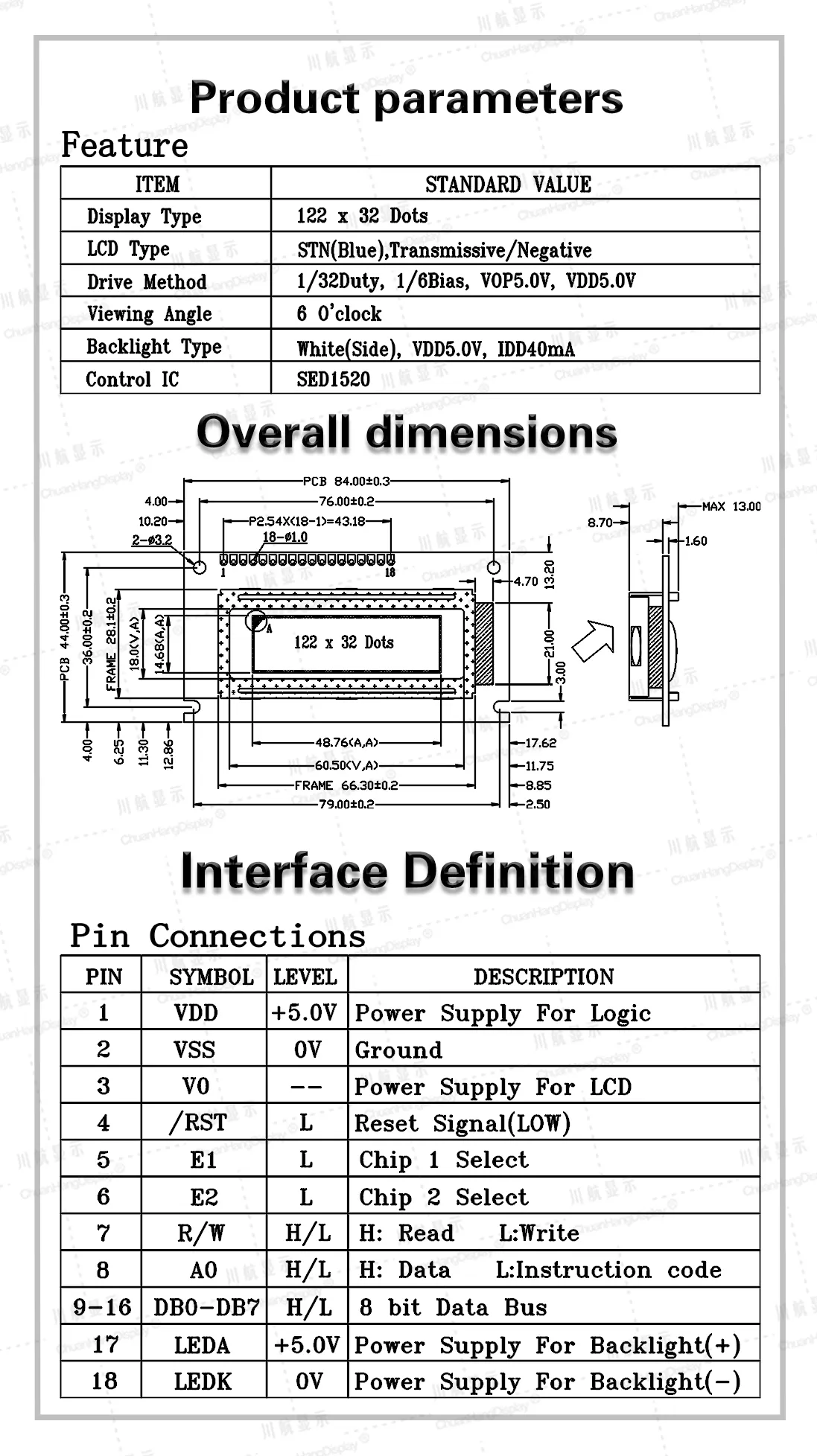

1.4 LED can be driven by PIN1, PIN2, PIN17, PIN18.
1.5 Product features:
Built-in display data RAM is 2560 bits

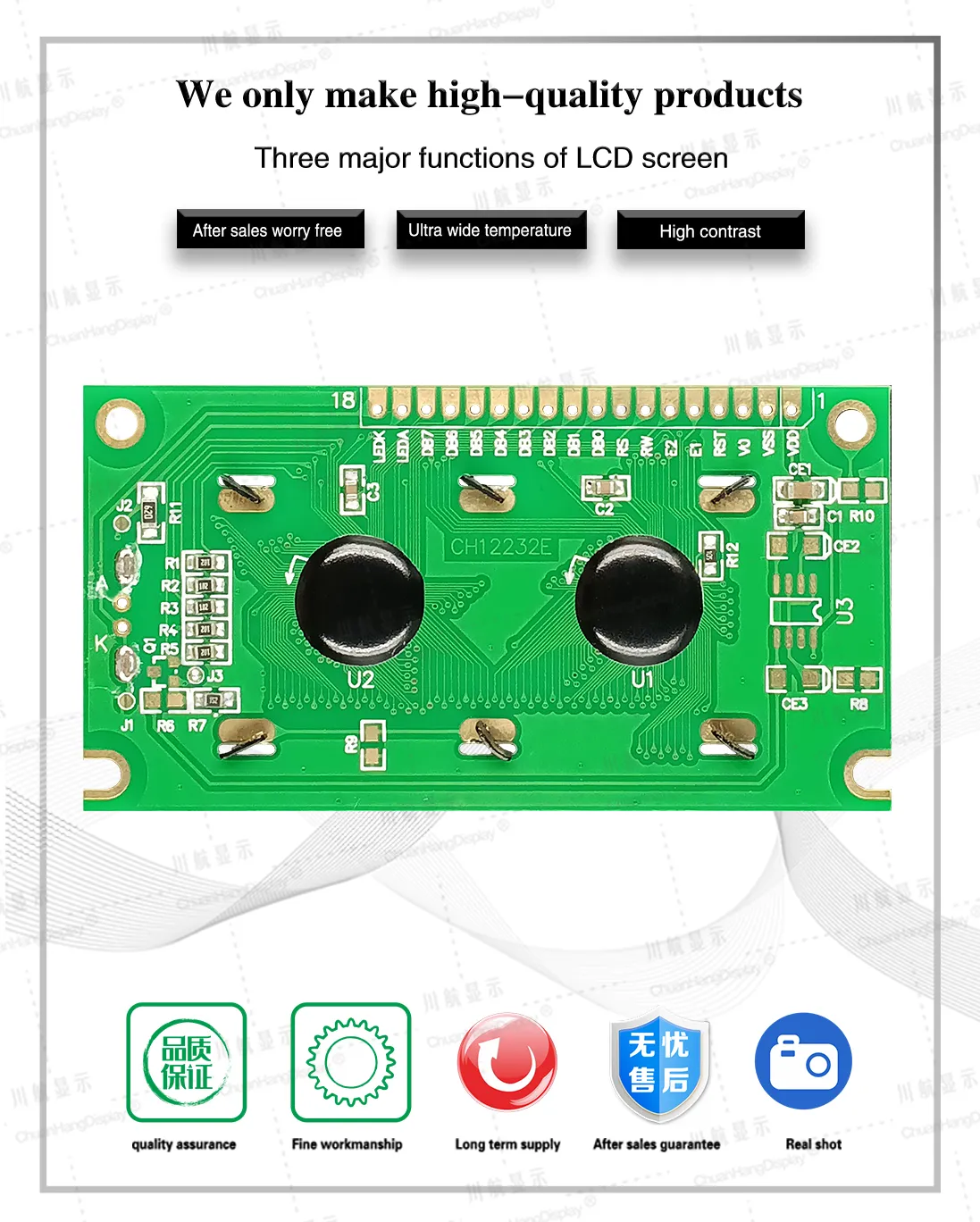

●Master-slave operation, the module has 2 chips.
●One screen displays 7 characters x 2 lines (16x16 dot matrix) + 1 half-width character
Single picture ≦122x32 dot matrix,
8-bit parallel port interface, 6800 timing
1.2 IC uses SBN6400/AIP31520, no font library in the chip, programmers compile font library
1.3 Low power consumption, 5V/3.3V two power modes, no backlight current within 3mA, backlight current within 40mA.
1.4 LED can be driven by PIN1, PIN2, PIN17, PIN18.
1.5 Product features:
Built-in display data RAM is 2560 bits
●Master-slave operation, the module has 2 chips.
●One screen displays 7 characters x 2 lines (16x16 dot matrix) + 1 half-width character
Single picture ≦122x32 dot matrix,
8-bit parallel port interface, 6800 timing
